Small size electromagnetic relay R15-2013-23-1060-WT 802854

Name: Small size electromagnetic relay R15-2013-23-1060-WT
Brand: RELPOL
SKU: APE271RELP
Price: 8.72 PLN
Availability: InStock

local index:

APE271RELP

Catalog No:

802854

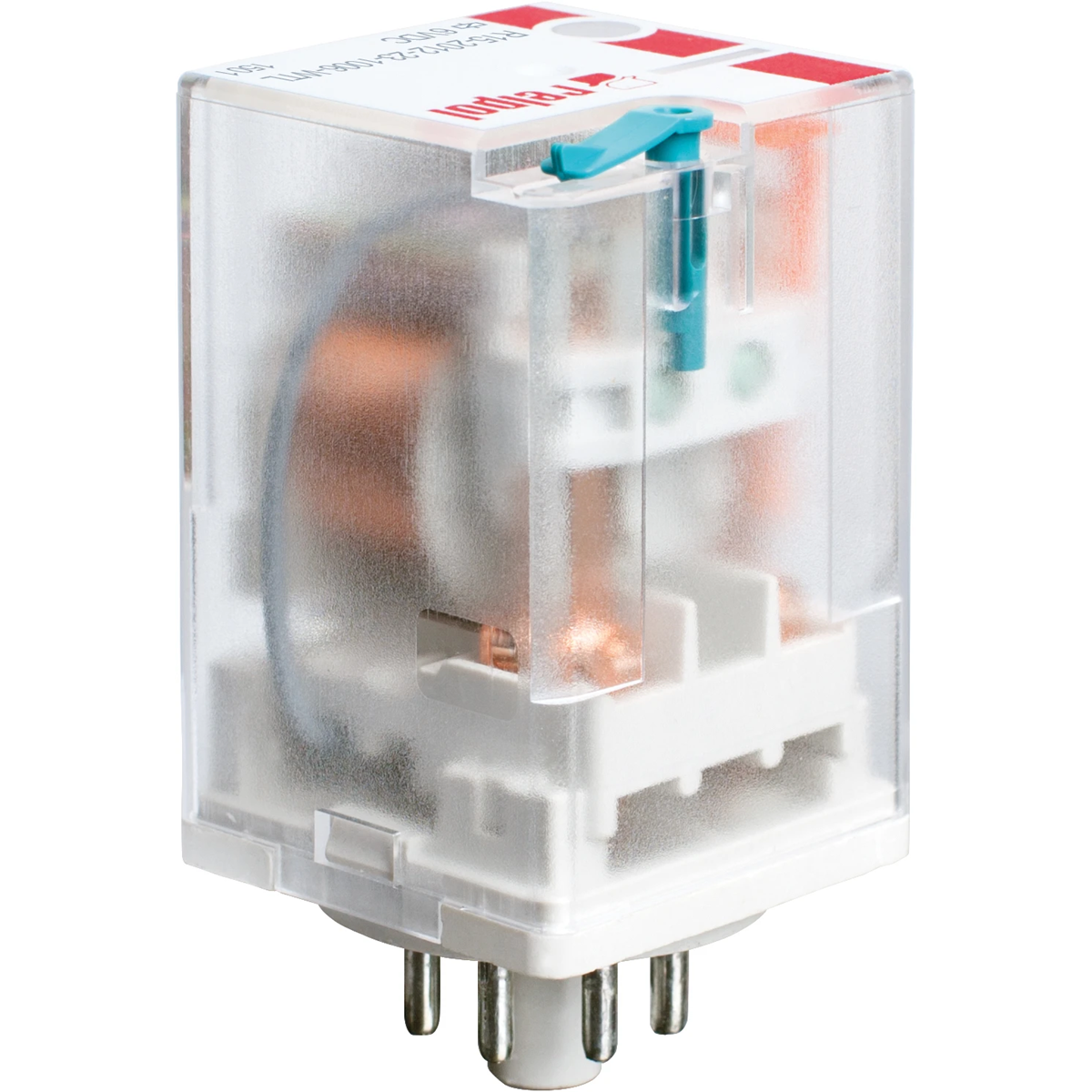

Small size electromagnetic relay R15-2013-23-1060-WT

Click on the photo to enlarge

Manufacturer: RELPOL

Depth [mm]: 35

Pin configuration: 3P

Contact material: AgNi

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

8,72 €

gross / pcs.

(including VAT 23%)

Last lowest price: 17,52 € gross

Base price: 18,39 € gross -53%

Accessible 1 pcs.

Quantity pcs.

(multiplicity:

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Ask about the product

Product description Technical data

Product description

Electromagnetic relay, industrial - small size, for plug socket. Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9). Input / Coil - Outputs: A1(2) - A2(10), Mechanical indicator W, test button T - with contact locking function. Dimensions of the set R15 3P + socket PZ11 + clamp PZ11 0031: 68.2 x 38 x 82.6 mm. Kit - IP 20. Dimensions of other kits are indicated in the description of the selected socket.

Rated contact voltage: 250V

Rated current AC1: 10 A / 250 V AC

Rated current AC2: 0.37 kW
