Small size electromagnetic relay R15-2012-23-5240-WTL 804577

local index:
APE316RELP
Catalog No:
804577
Manufacturer: RELPOL
Depth [mm]: 35
Pin configuration: 2P
Contact material: AgNi
Price:
17,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

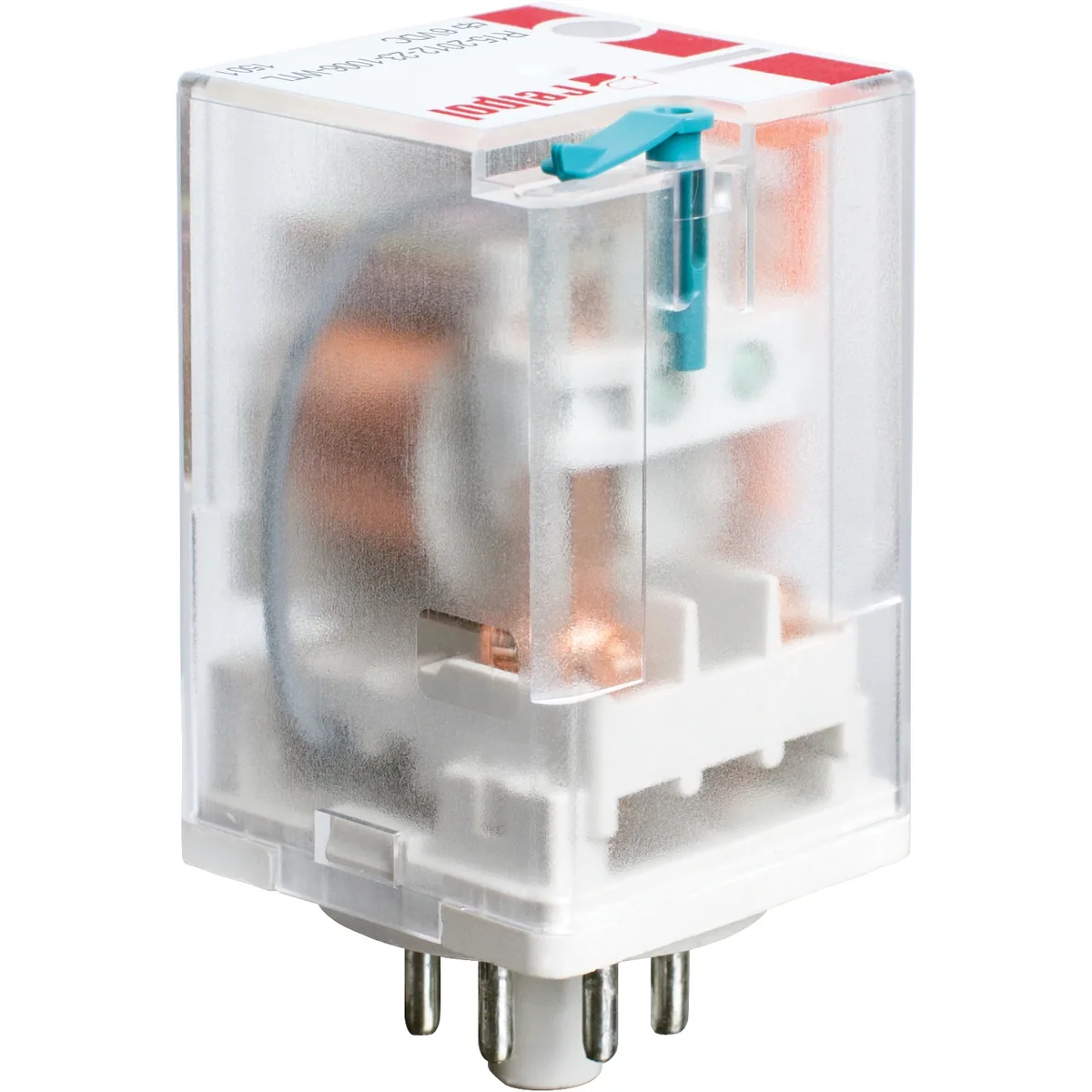

Electromagnetic relay, industrial - small size, for plug socket.

Output: 2P - two changeover contacts - terminals: 11(1), 12(4), 14( 3); 21(8), 22(5), 24(6); AC1 - 10A / 250V; DC1 - 10 A / 24 V.

Input / coil - terminals: A1(2) - A2(7), supply voltage Un - 240 V AC.

Rated current AC1:  10A / 250V AC

AC3 rated current: 0.37KW

DC1 rated current: 10A / 24V DC

Rated contact voltage: 250V AC

Mechanical actuation indicator W, test button T - with contact locking function, red LED indicator L. IP 40.

Dimensions of the R15 set 2P + socket PZ8 + clamp PZ11 0031: 68.2 x 38 x 82.6 mm. Set - IP 20.

Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Depth [mm]
    35
  • Contact material
    AgNi
  • Type of voltage
    AC
  • Width [mm]
    35
  • Pin configuration
    2P
  • Coil voltage [V]
    240
  • How to connect
    For plug sockets
  • Height [mm]
    54.4

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    35 mm
  • Rated control supply voltage AC 50 Hz
    240 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Complete with socket
    No
  • Width
    35 mm
  • Depth
    54.4 mm
