Single-function time relay 2 P; 8A; 24…240V AC/DC; BI 836202400000

Name: Single-function time relay 2 P; 8A; 24…240V AC/DC; BI
Brand: FINDER
SKU: APC037FIND
Price: 380.86 PLN
Availability: BackOrder

local index:

APC037FIND

Catalog number:

836202400000

EAN code:

8012823358611

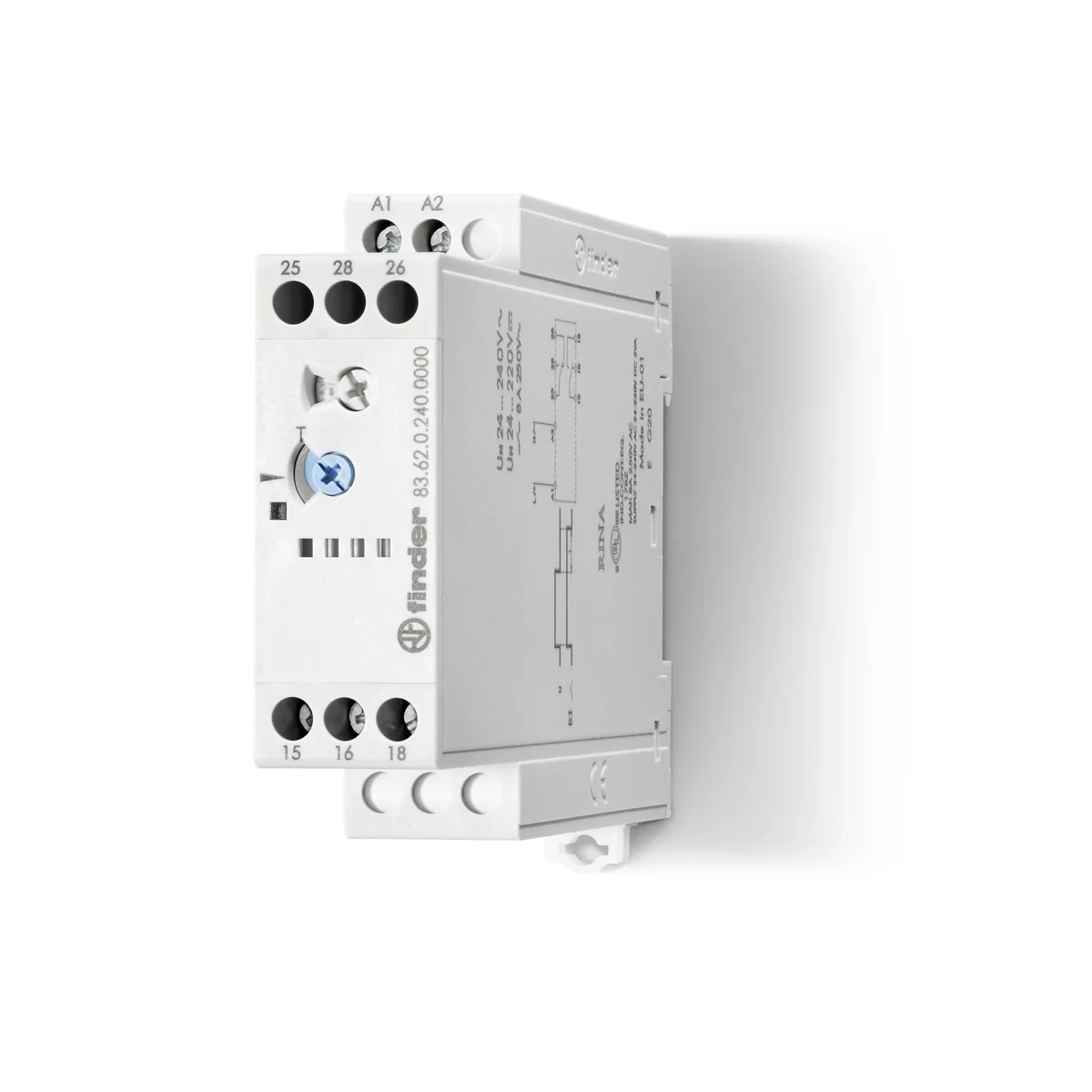

Single-function time relay 2 P; 8A; 24…240V AC/DC; BI

Click on the photo to enlarge

Manufacturer: FINDER

Price:

380,86 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Type of electric connection

Screw connection
Z gniazdem wtykowym

Yes
Suitable as remote control

Yes
Rated control supply voltage AC 50 Hz

24 ... 240 V
Rated control supply voltage DC

24 ... 240 V
Time range

0.05 ... 180 s
Number of outputs, undelayed, normally open contact

0
Number of outputs, delayed, normally closed contact

0
Number of outputs, delayed, change-over contact

2
With semiconductor output

Yes
Height

86.2 mm

Function delay on de-energization

Yes
Remote operation possible

Yes
Pluggable on auxiliary contact block

Yes
Rated control supply voltage AC 60 Hz

24 ... 240 V
Voltage type for actuating

AC/DC
Number of outputs, undelayed, normally closed contact

0
Number of outputs, undelayed, change-over contact

0
Number of outputs, delayed, normally open contact

0
Outputs, reversible delayed/undelayed

Yes
Width

22.5 mm
Depth

100.3 mm

Manufacturer details

Manufacturer

Finder S.p.A. con unico socio
Address

10040 Almese Via Drubiaglio 14 Włochy
E-mail

finder.pl@findernet.com

Bulk packaging

A kind of package	Sztuka	Sztuka	Paczka
Quantity	1 pcs.	5 pcs.	5 pcs.
Weight (kg)	0,141	0,775	-
Width (m)	0,030	0,165	-
Length (m)	0,093	0,095	-
Depth (m)	0,140	0,125	-
