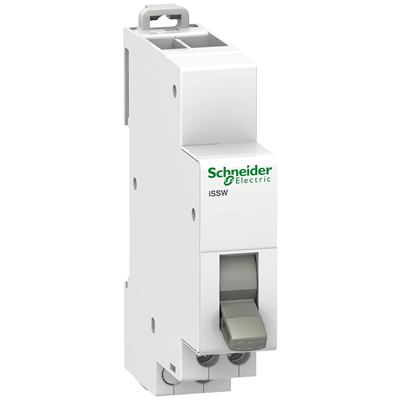

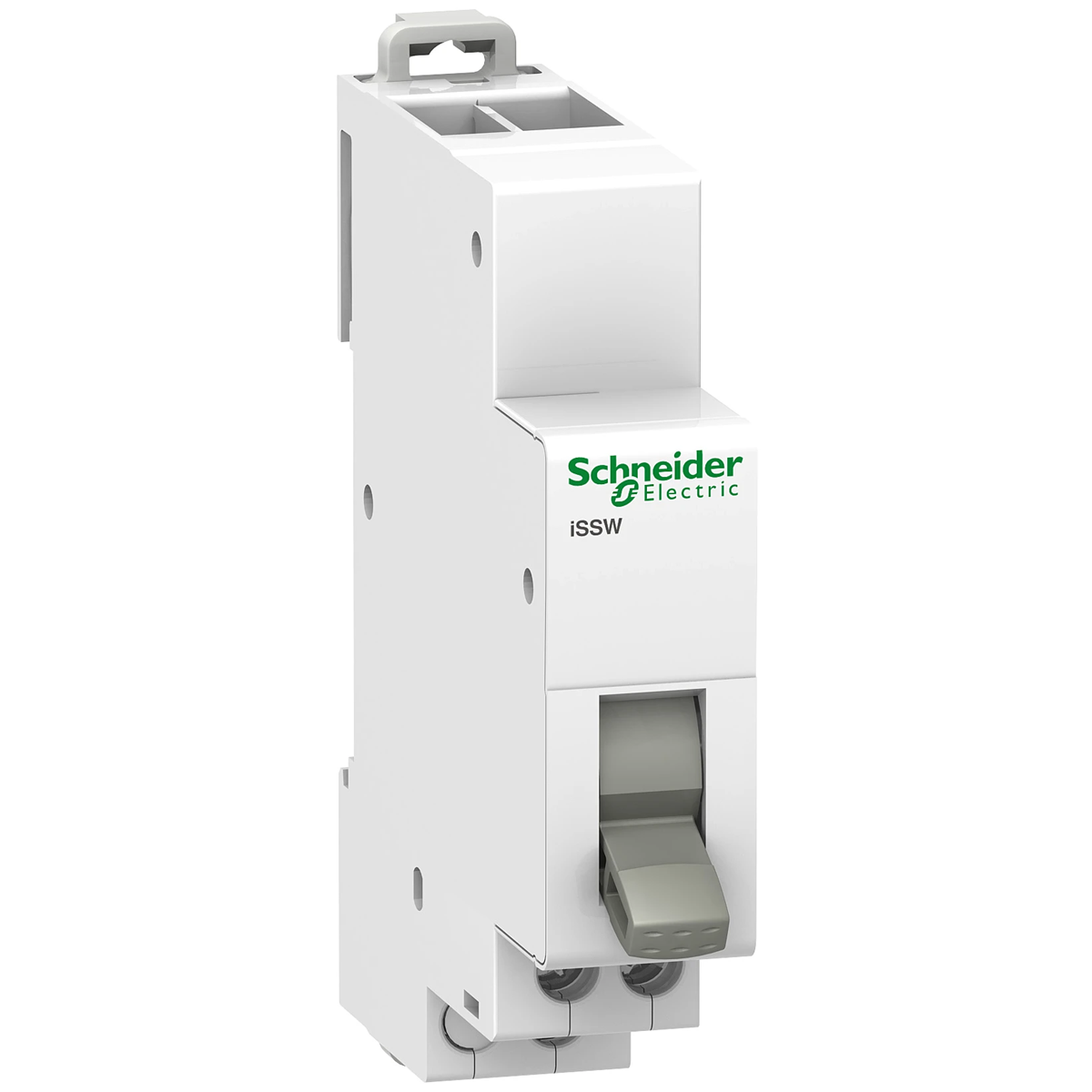

Single 2-position switch iSSW-20-1 20A 1CO A9E18070

local index:
ALK013SCHN
Catalog No:
A9E18070
EAN code:
3606480088476
Price:
13,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single 2-position switch iSSW-20-1 20A 1CO

Technical data

  • Color
    White
  • PKWIU
    27.33.13.0

Other technical data

  • Switching function
    Two-way switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    1
  • Rated voltage
    250 V
  • Voltage type
    AC
  • Colour calotte
    White
  • Built-in depth
    75 mm
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    1
  • Rated current
    20 A
  • Min. rated voltage
    250 V
  • With signal lamp
    No
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP40
