Silent installation relay with the possibility of manual control. 12VDC 2NO+2NC 16A ERL418SDC

Name: Silent installation relay with the possibility of manual control. 12VDC 2NO+2NC 16A
Brand: HAGER
SKU: APC009HAGE
Price: 68.60 PLN

local index:

APC009HAGE

Catalog No:

ERL418SDC

EAN code:

3250612230587

Silent installation relay with the possibility of manual control. 12VDC 2NO+2NC 16A

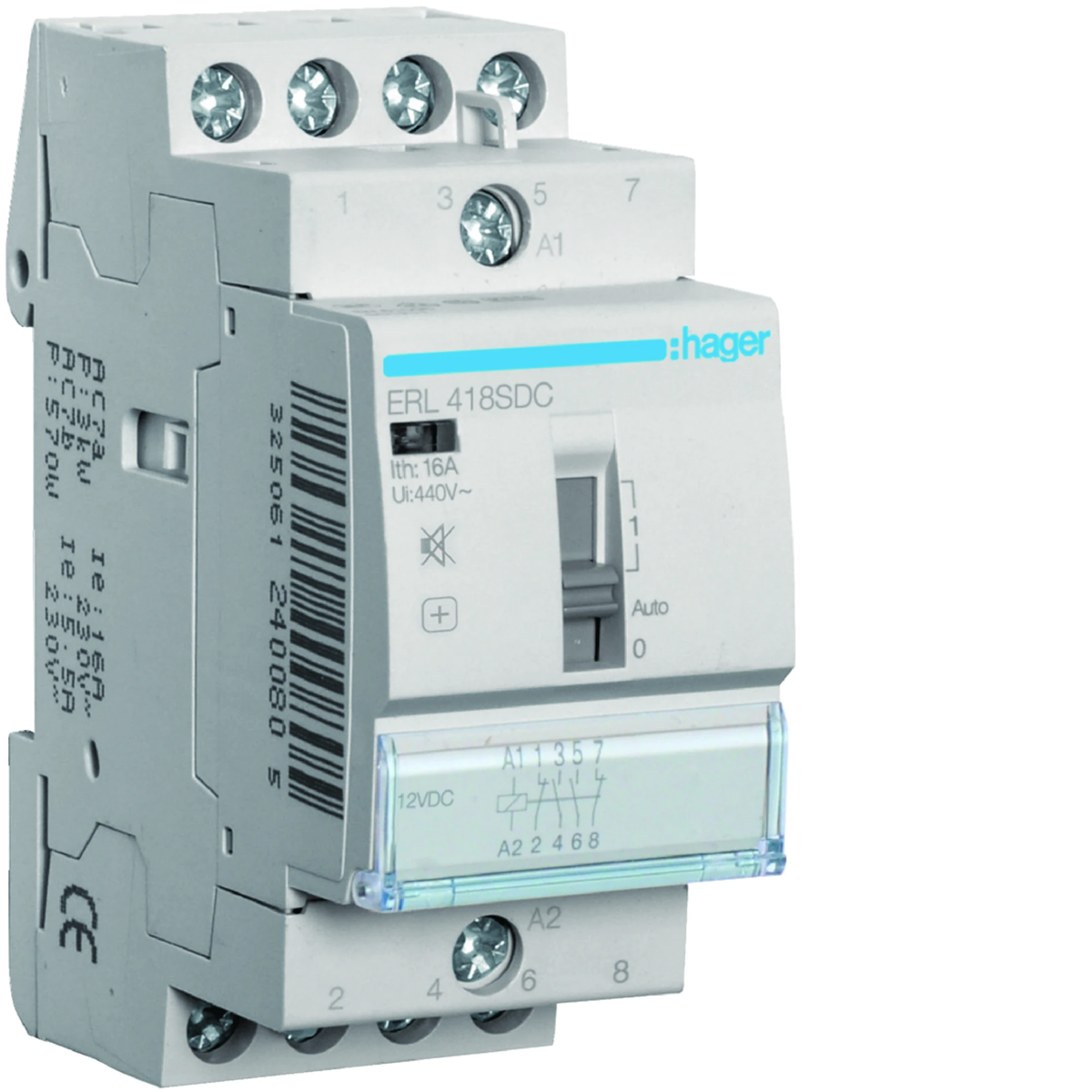

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 60

Maximum input power [VA]: 2.8

Tightening torque [Nm]: 1.2

See full description

Price:

68,60 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Silent installation relay with the possibility of manual control. 12VDC 2NO+2NC 16A

Technical data

Depth [mm]

60
Tightening torque [Nm]

1.2
Rated current [A]

16
power loss [W]

4.8
Height [mm]

83
Mechanical durability (number of cycles)

100000
Rated switching voltage [V]

400
Number of modules

2
Maximum bulb power [W]

1100
Reaction time when opening [ms]

15
Control cable cross-section [mm²]

1 - 6
Power loss per contact [W]

1
Wire cross-section (cord) [mm²]

1 - 6
PKWIU

27.12.24.0

Maximum input power [VA]

2.8
Rated insulation voltage [V]

440
Contact type

2NC + 2NO
Width [mm]

35.75
Electrical endurance (number of cycles)

30000
Operating temperature range [°C]

from -10 to 50
Rated impulse voltage [kV]

4
Number of NO contacts

2
Wire cross-section [mm²]

1 to 10
Input power [VA]

2.8
Manual control

Yes
storage temperature [°C]

From -40 to 80
Conductor cross-section (wire) [mm²]

1 - 10

Other technical data

Rated operating voltage

400 ... 400 V
Kategoria użytkowania

7
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

2
Max. incandescent lamp load

1100 W
Max. load fluorescent lamp (Duo circuit)

1200 VA
Slider for hand switch

Yes
Additional equipment possible

Yes

Rated operation current

16 A
Rated excitation voltage

12 ... 12 V
Voltage type (excitation voltage)

DC
Number of contacts as normally closed contact

2
Max. load fluorescent lamp

570 VA
Max. load fluorescent lamp (parallel compensated)

490 VA
Built-in depth

60 mm
Degree of protection (IP)

IP2X

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,218	13,520	349,480
Width (m)	0,097	0,315	0,800
Length (m)	0,041	0,215	1,010
Depth (m)	0,080	0,370	1,200

Files to download

ERL418SDC.pdf
