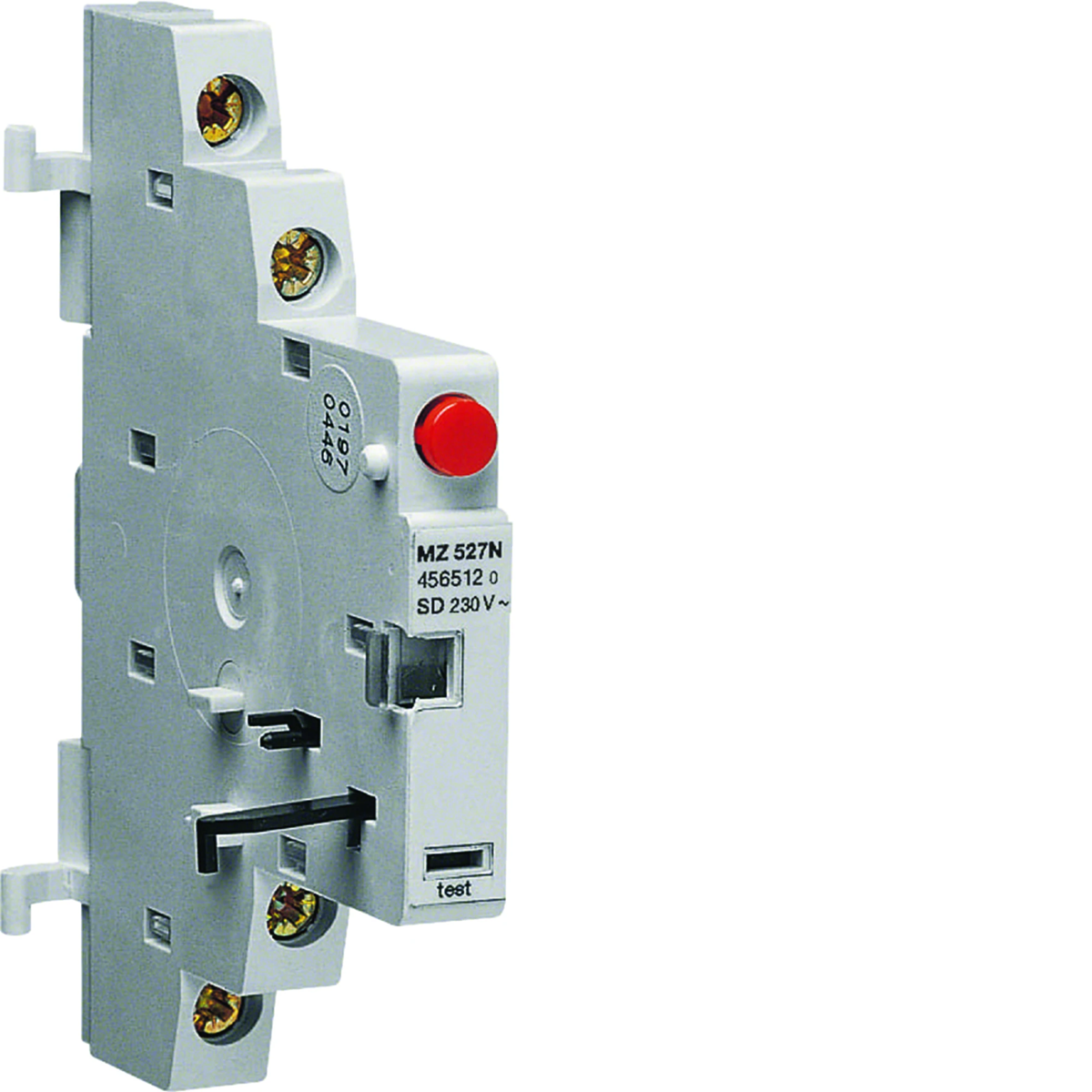

Signaling contact for motor circuit breaker 3.5A 2NO MZ527N
local index:
ALA397HAGE
Catalog No:
MZ527N
EAN code:
3250614565120
Price:
19,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Signaling contact for motor circuit breaker 3.5A 2NO
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]1.3
-
Rated insulation voltage [V]690
-
Contact type2 NO
-
power loss [W]0.2
-
Width [mm]9
-
Electrical endurance (number of cycles)5000
-
Operating temperature range [°C]from -25 to 55
-
Number of modules0.5
-
storage temperature [°C]from -25 to 80
-
Rated surge voltage [V]6000
-
Conductor cross-section (wire) [mm²]2.5
-
Depth [mm]68
-
DC operating voltage [V]24/220
-
Rated current [A]1
-
Level of securityIP20
-
Power loss per pole [W]0.1
-
Connection typeWith a screw
-
Mechanical durability (number of cycles)10000
-
Rated switching voltage [V]220/500
-
Number of NO contacts2
-
Supply voltage typeAC
-
Wire cross-section (cord) [mm²]2.5
-
PKWIU27.33.13.0
Other technical data
-
Device fittingOther
-
Montowane fabrycznieNo
-
Number of contacts as normally closed contact0
-
Number of fault-signal switches2
-
Rated voltage500 V
-
With auto test for earth leakage functionNo
-
Suitable for max. current main contact unit25 A
-
Rodzaj wyposażenia dodatkowegoAuxiliary switch/fault-signal switch
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Rated switch current1 A
-
Voltage type for actuatingAC
-
Suitable for max. number of poles main contact unit (total)3
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,034 | 0,055 | 3,680 | 111,320 |
| Width (m) | 0,095 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,040 | 0,040 | 0,220 | 1,006 |
| Depth (m) | 0,080 | 0,100 | 0,360 | 1,200 |
