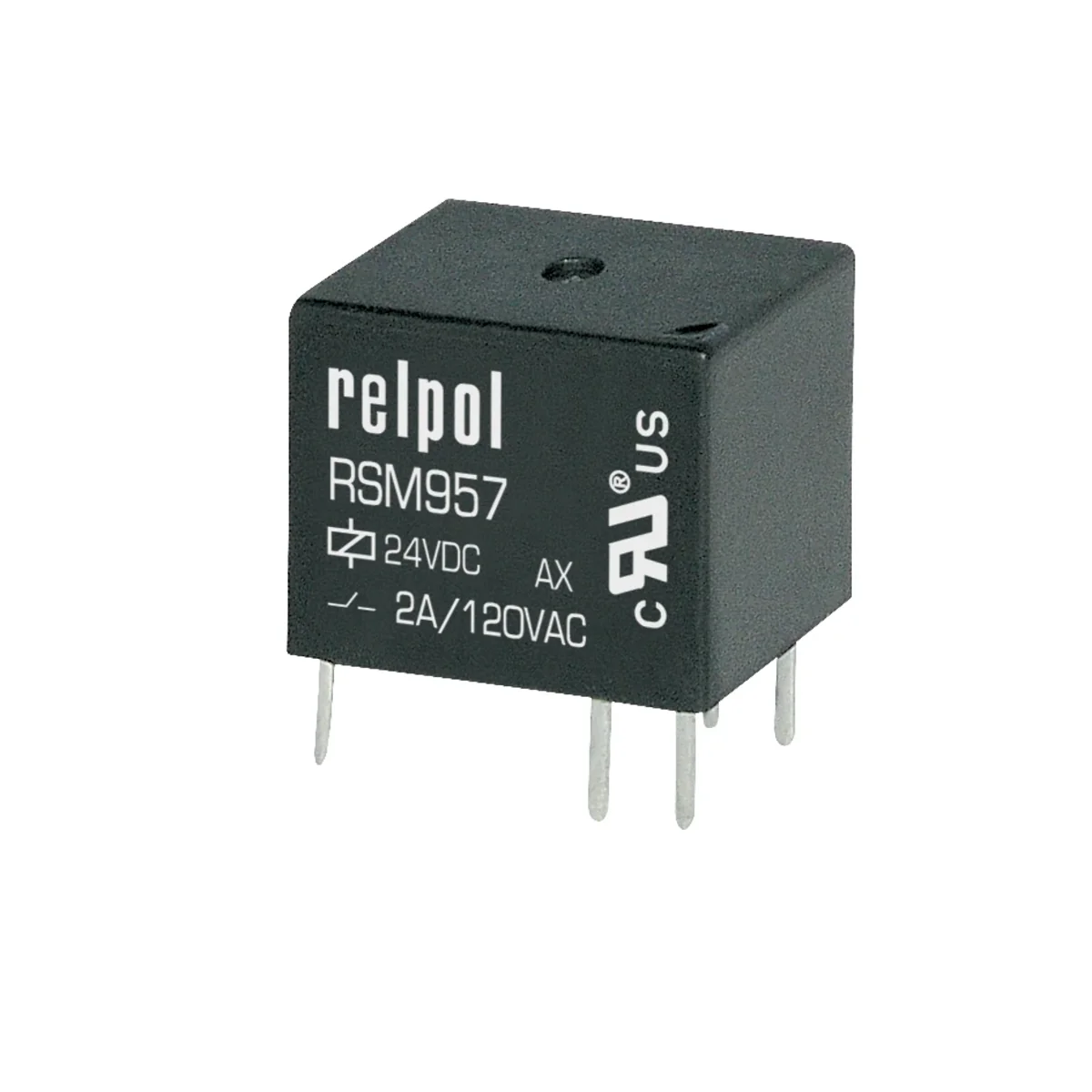

Signal relay RSM957-0111-85-S024 1P 24 V DC sensitive coil 2 A / 120 V AC 2611740
local index:
APE658RELP
Catalog number:
2611740
Manufacturer:
RELPOL
Price:
11,34 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Type of electric connectionPCB connection
-
Nominal current2 A
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
With forced-guided contactsNo
-
Complete with socketNo
-
Material of contact surfaceGold
-
Width7.8 mm
-
Depth12.6 mm
-
With detachable clampsNo
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
Type of switch contactSingle contact
-
With LED indicationNo
-
Degree of protection (IP)IP67
-
Height10 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37 Polska
-
