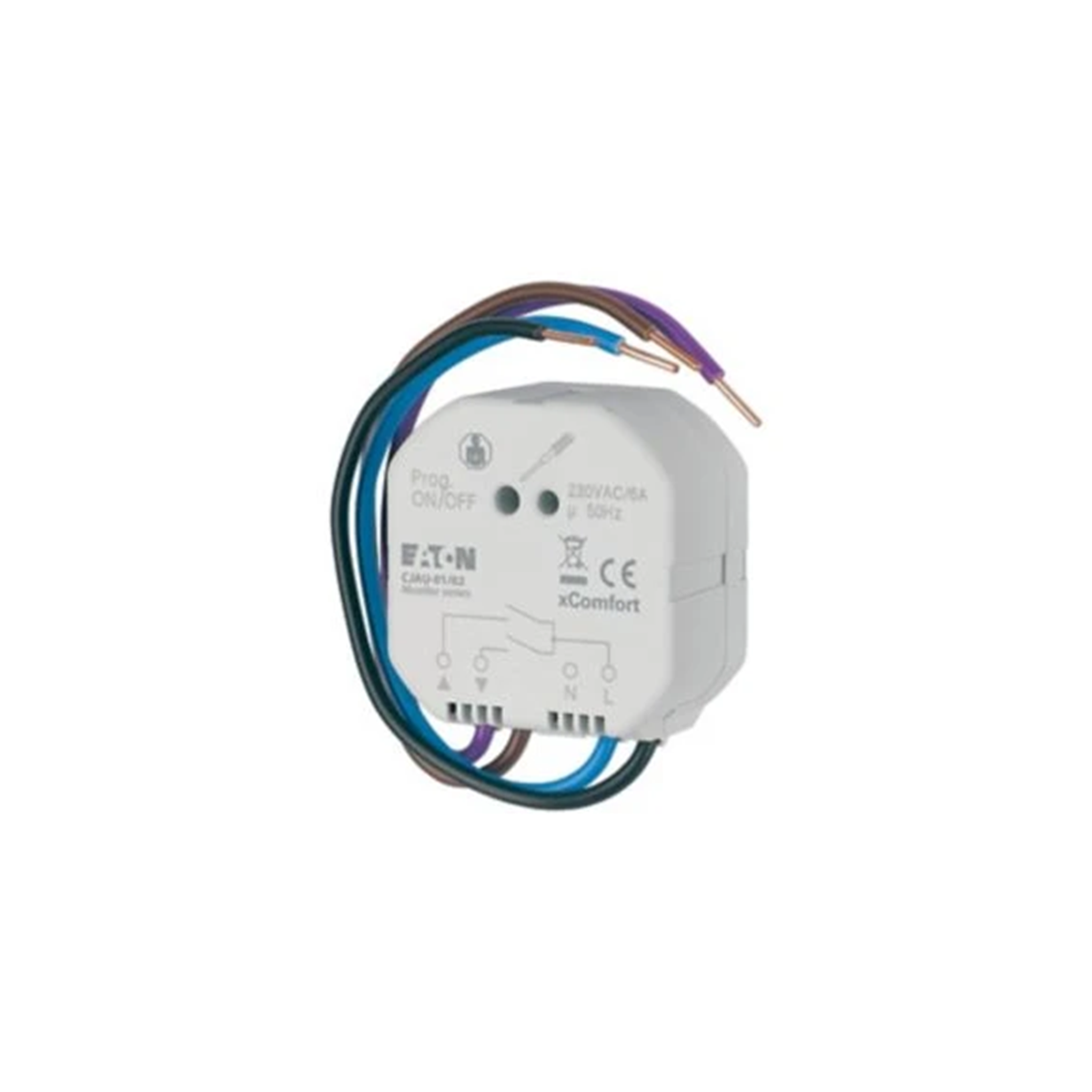

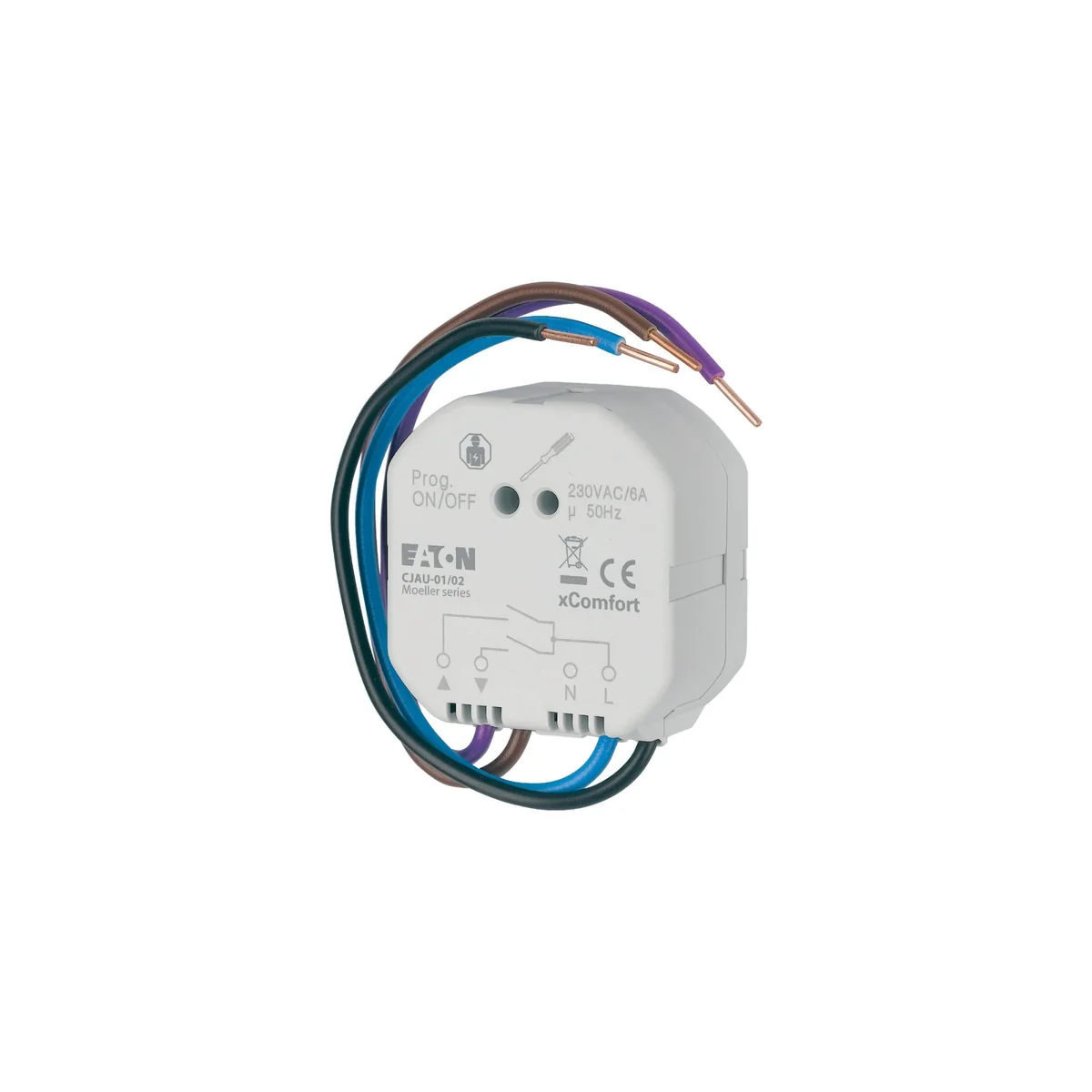

Shutter control receiver, CJAU-01/02 240696

Name: Shutter control receiver, CJAU-01/02
Brand: EATON
SKU: APS002MOEL
Price: 430.22 PLN

local index:

APS002MOEL

Catalog No:

240696

EAN code:

4015082406967

Click on the photo to enlarge

Manufacturer: EATON

Frequency [MHz]: 868.3

See full description

Price:

430,22 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

• It is used for remote control of roller shutters (controls a 230 V electric motor).
The device is powered from the mains. It can be built into the box or directly into the housing of the controlled device. The device has two current paths: up and down.

Technical data

Frequency [MHz]

868.3

Other technical data

Bus system KNX

No
Bus system radio frequent

Yes
Bus system Powernet

No
Radio frequent bidirectional

Yes
Width in number of modular spacings

3
Bus module detachable

Yes
With LED indication

No
Switching current (resistive)

6 A
Max. number of venetian-blind outputs

1
Type of current

AC
Min. depth of built-in installation box

26 mm

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

xComfort
Mounting method

Flush-mounted
With bus connection

Yes
Local operation/hand operation

Yes
Number of inputs

0
Max. switching power

1380 W
With switch function

No
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
Tax identification number

5841022327

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	60 pcs.
Weight (kg)	0,095	5,700
Volume (m3)	0,000	0,016
Width (m)	0,085	0,180
Length (m)	0,035	0,385
Depth (m)	0,075	0,230
