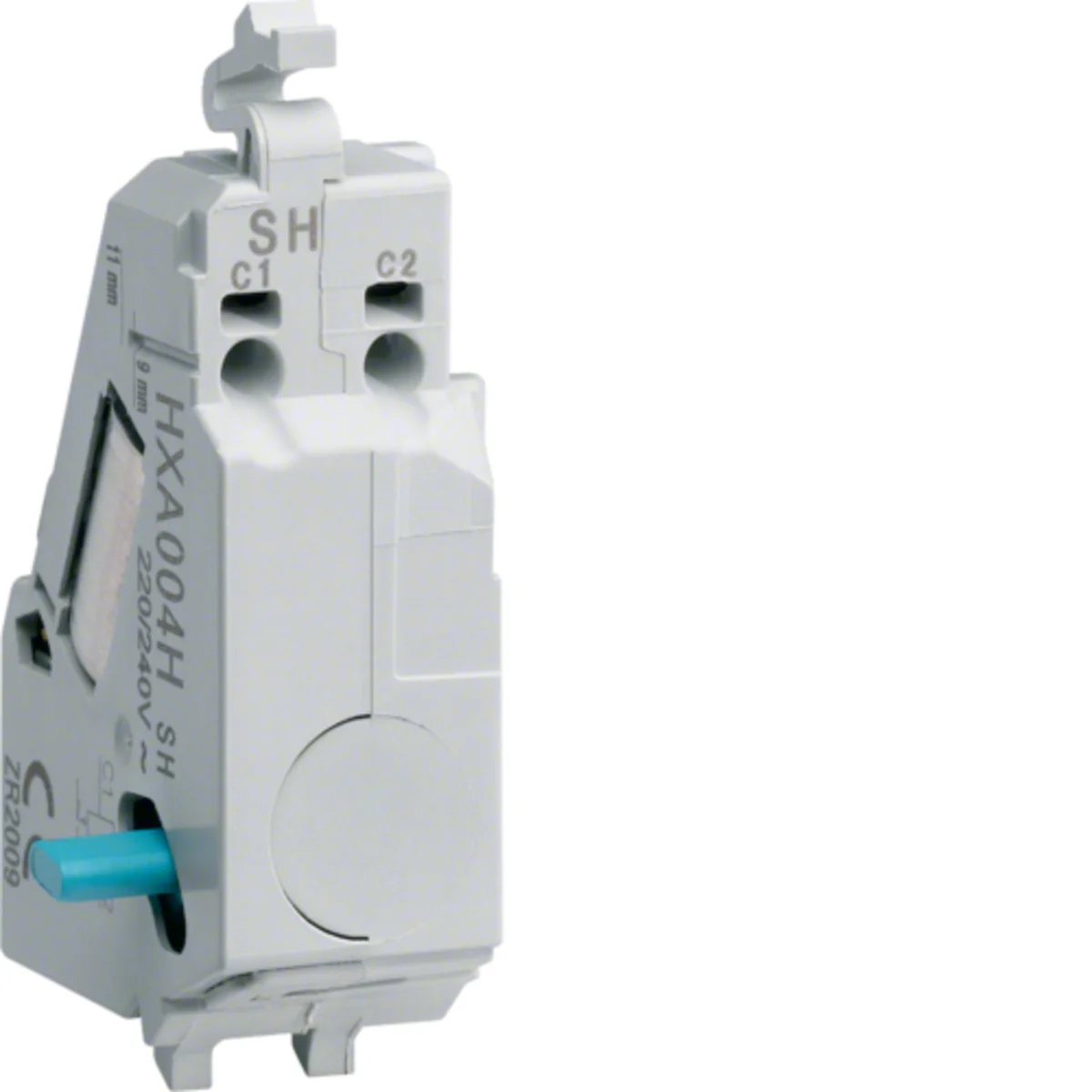

Shunt trip x160-x250 200-240VAC HXA004H

local index:
ALA011HAGE
Catalog No:
HXA004H
EAN code:
3250613346348
Manufacturer: HAGER
Rated voltage [V]: 230
Power dissipation [W]: 3
Price:
59,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Shunt trip - tripping is caused by applying voltage to the coil. The shunt release may only be connected to the voltage after it has been correctly mounted in the circuit-breaker/switch-disconnector. Otherwise, it may be destroyed!

Technical data

  • Rated voltage [V]
    230
  • PKWIU
    27.33.11.0
  • Power dissipation [W]
    3

Other technical data

  • Rated control supply voltage AC 50 Hz
    200 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Initial value of the undelayed short-circuit release - setting range
    0 A
  • Type of electric connection
    Spring clamp connection
  • Number of contacts as normally closed contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No
  • Rated control supply voltage AC 60 Hz
    200 ... 240 V
  • Voltage type for actuating
    AC
  • End value adjustment range undelayed short-circuit release
    0 A
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,074 0,080 4,230 124,520
Width (m) 0,082 0,075 0,310 0,800
Length (m) 0,044 0,040 0,210 1,050
Depth (m) 0,096 0,095 0,360 1,200
