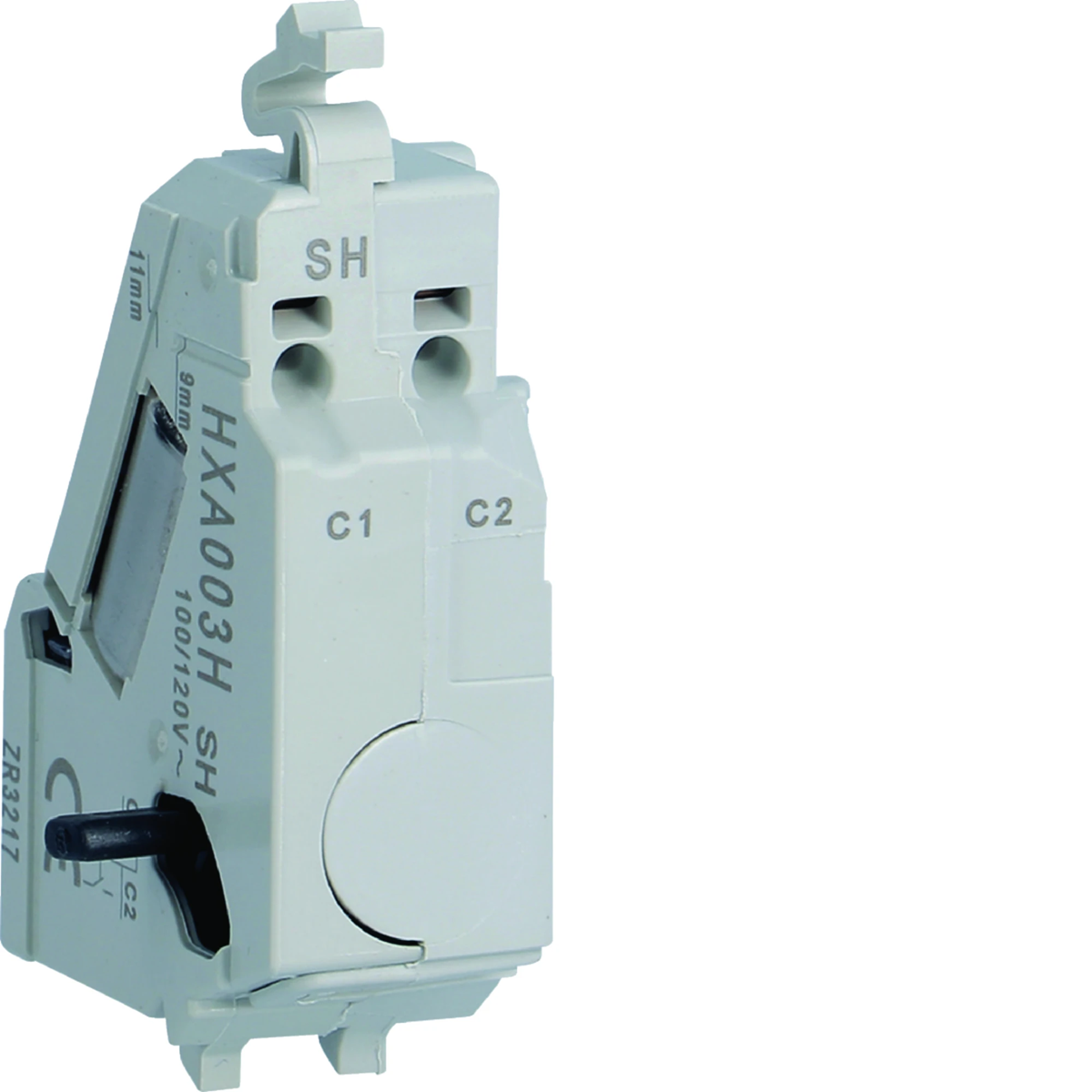

Shunt trip x160-x250 100-120VAC HXA003H

local index:
ALA145HAGE
Catalog No:
HXA003H
EAN code:
3250613346331
Manufacturer: HAGER
power loss [W]: 1.7
Connection type: Quick Connect
AC rated voltage [V]: 100/120
Price:
54,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Shunt trip x160-x250 100-120VAC

Technical data

  • power loss [W]
    1.7
  • AC rated voltage [V]
    100/120
  • Connection type
    Quick Connect
  • PKWIU
    27.33.11.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    100 ... 120 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Initial value of the undelayed short-circuit release - setting range
    0 A
  • Type of electric connection
    Spring clamp connection
  • Number of contacts as normally closed contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No
  • Rated control supply voltage AC 60 Hz
    100 ... 120 V
  • Voltage type for actuating
    AC
  • End value adjustment range undelayed short-circuit release
    0 A
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,036 0,075 3,980 118,520
Width (m) 0,030 0,075 0,315 0,800
Length (m) 0,035 0,045 0,215 1,010
Depth (m) 0,060 0,095 0,360 1,200
