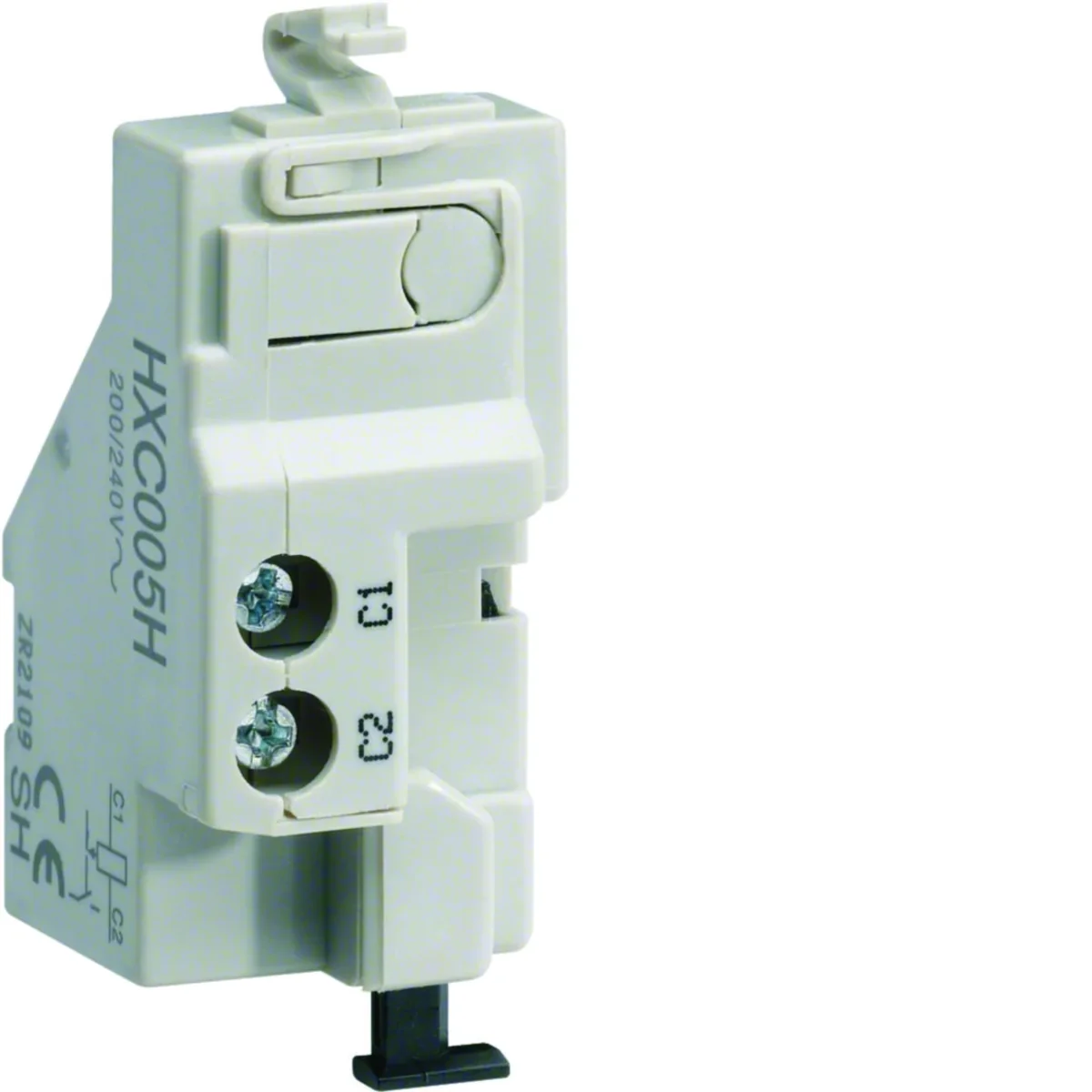

Shunt release h250-h1600 380-450VAC HXC005H

local index:
ALA168HAGE
Catalog No:
HXC005H
EAN code:
3250613369453
Manufacturer: HAGER
Maximum input power [VA]: 2.93
Level of security: IP4X
power loss [W]: 2.9
Price:
113,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Shoulder release:

  • size: h250-h1600
  • rated operational voltage Ue (AC): 380-450V

Technical data

  • Maximum input power [VA]
    2.93
  • power loss [W]
    2.9
  • Rated switching voltage [V]
    380/440
  • Level of security
    IP4X
  • Connection type
    With a screw
  • PKWIU
    27.33.11.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    380 ... 450 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Initial value of the undelayed short-circuit release - setting range
    0 A
  • Type of electric connection
    Screw connection
  • Number of contacts as normally closed contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No
  • Rated control supply voltage AC 60 Hz
    380 ... 450 V
  • Voltage type for actuating
    AC
  • End value adjustment range undelayed short-circuit release
    0 A
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,067 0,068 3,644 110,456
Width (m) 0,100 0,080 0,310 0,800
Length (m) 0,080 0,040 0,215 1,050
Depth (m) 0,040 0,090 0,360 1,200
