Shunt release h250-h1600 200-240VAC HXC004H

Name: Shunt release h250-h1600 200-240VAC
Brand: HAGER
SKU: ALA020HAGE
Price: 115.20 PLN

local index:

ALA020HAGE

Catalog No:

HXC004H

EAN code:

3250613369446

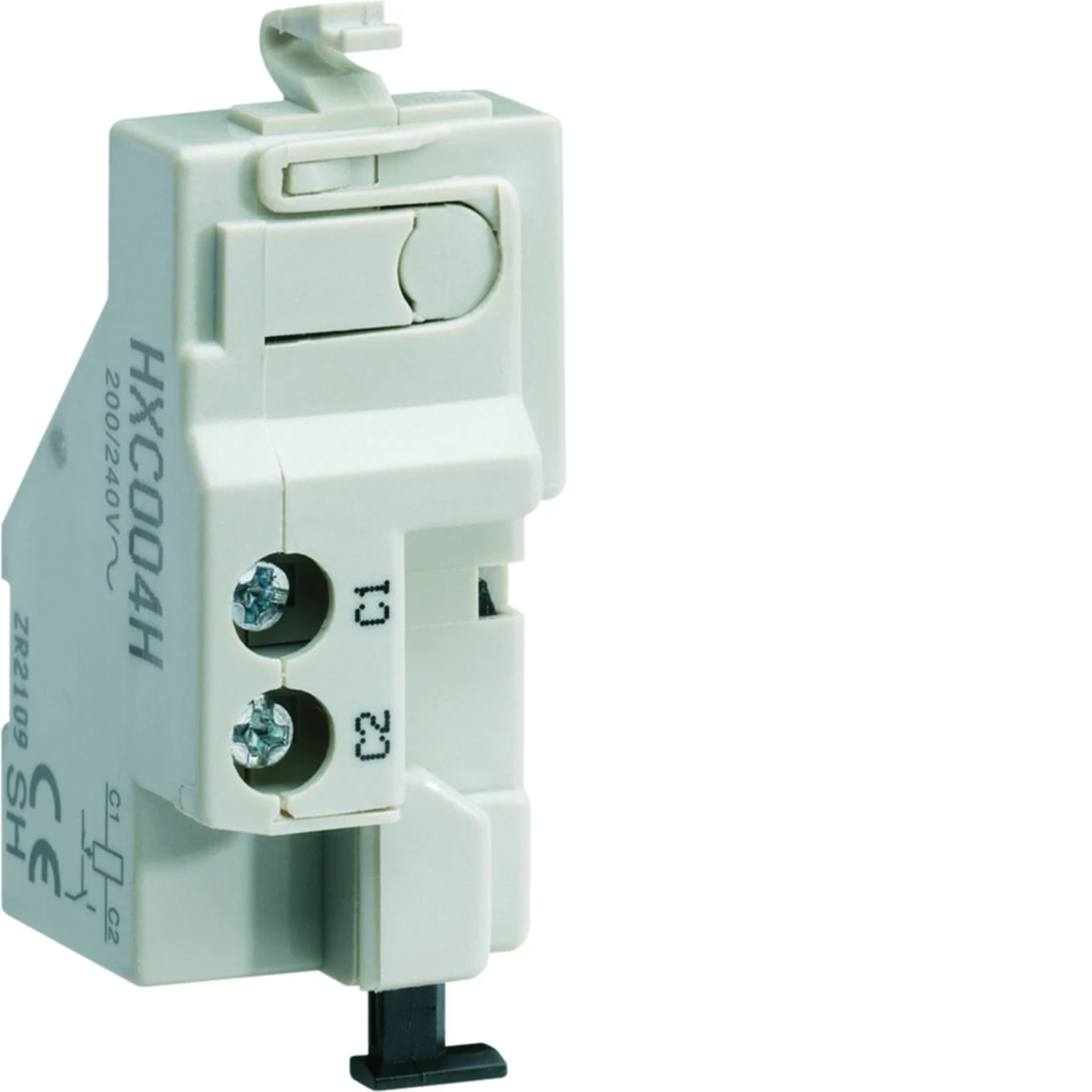

Click on the photo to enlarge

Manufacturer: HAGER

Rated voltage [V]: 230

See full description

Price:

115,20 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Shunt trip - tripping is caused by applying voltage to the coil. The shunt release may only be connected to the voltage after it has been correctly mounted in the circuit-breaker/switch-disconnector. Otherwise, it may be destroyed!

Technical data

Rated voltage [V]

230

PKWIU

27.33.11.0

Other technical data

Rated control supply voltage AC 50 Hz

220 ... 240 V
Rated control supply voltage DC

0 ... 0 V
Initial value of the undelayed short-circuit release - setting range

0 A
Type of electric connection

Screw connection
Number of contacts as normally closed contact

0
Suitable for power circuit breaker

Yes
Suitable for motor safety switch

No

Rated control supply voltage AC 60 Hz

220 ... 240 V
Voltage type for actuating

AC
End value adjustment range undelayed short-circuit release

0 A
Number of contacts as normally open contact

0
Number of contacts as change-over contact

0
Suitable for off-load switch

Yes
Suitable for overload relay

No

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	48 pcs.	1152 pcs.	1 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,060	3,310	79,480	0,060	3,310	79,480
Width (m)	0,070	0,310	0,800	0,070	0,310	0,800
Length (m)	0,040	0,210	1,020	0,040	0,210	1,020
Depth (m)	0,090	0,360	1,200	0,090	0,360	1,200
