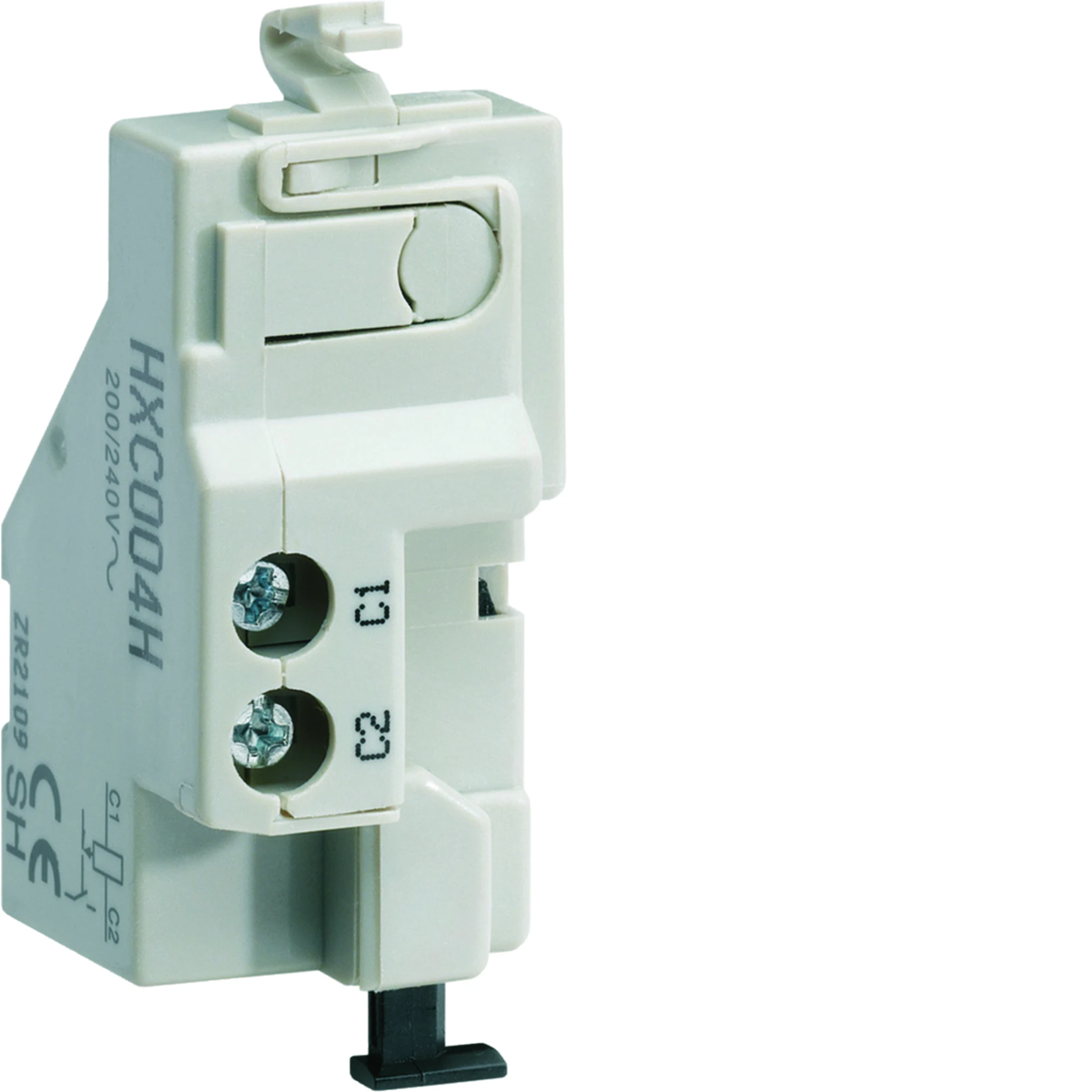

Name: Shunt release h250-h1600 200-240VAC
Brand: HAGER
SKU: ALA020HAGE
Price: 63.53 PLN
Availability: InStock

1. 63,53 € gross / pcs.

2. Last lowest price: 63,53 €

3. Base price: 188,90 € -66%

1. How much does this product cost today

2. Lowest price in the last 30 days

3. The base price of the product

Shunt trip - tripping is caused by applying voltage to the coil. The shunt release may only be connected to the voltage after it has been correctly mounted in the circuit-breaker/switch-disconnector. Otherwise, it may be destroyed!

Rated voltage [V]

230

PKWIU

27.33.11.0

Other technical data

Rated control supply voltage AC 50 Hz

220 ... 240 V
Rated control supply voltage DC

0 ... 0 V
Initial value of the undelayed short-circuit release - setting range

0 A
Type of electric connection

Screw connection
Number of contacts as normally closed contact

0
Suitable for power circuit breaker

Yes
Suitable for motor safety switch

No

Rated control supply voltage AC 60 Hz

220 ... 240 V
Voltage type for actuating

AC
End value adjustment range undelayed short-circuit release

0 A
Number of contacts as normally open contact

0
Number of contacts as change-over contact

0
Suitable for off-load switch

Yes
Suitable for overload relay

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,069	0,070	3,825	114,800
Width (m)	0,085	0,075	0,310	0,800
Length (m)	0,044	0,045	0,210	1,020
Depth (m)	0,095	0,095	0,365	1,200
