SERIES 80 Time relay 1CO 16A 24-240V AC/DC 801102400000PAS

local index:
APC010FIND
Catalog No:
801102400000PAS
EAN code:
8012823324661
SERIES 80 Time relay 1CO 16A 24-240V AC/DC
Manufacturer: FINDER
Maximum switching voltage [V]: 400
Contact material: AgNi
Rated voltage [V]: 230
Price:
41,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

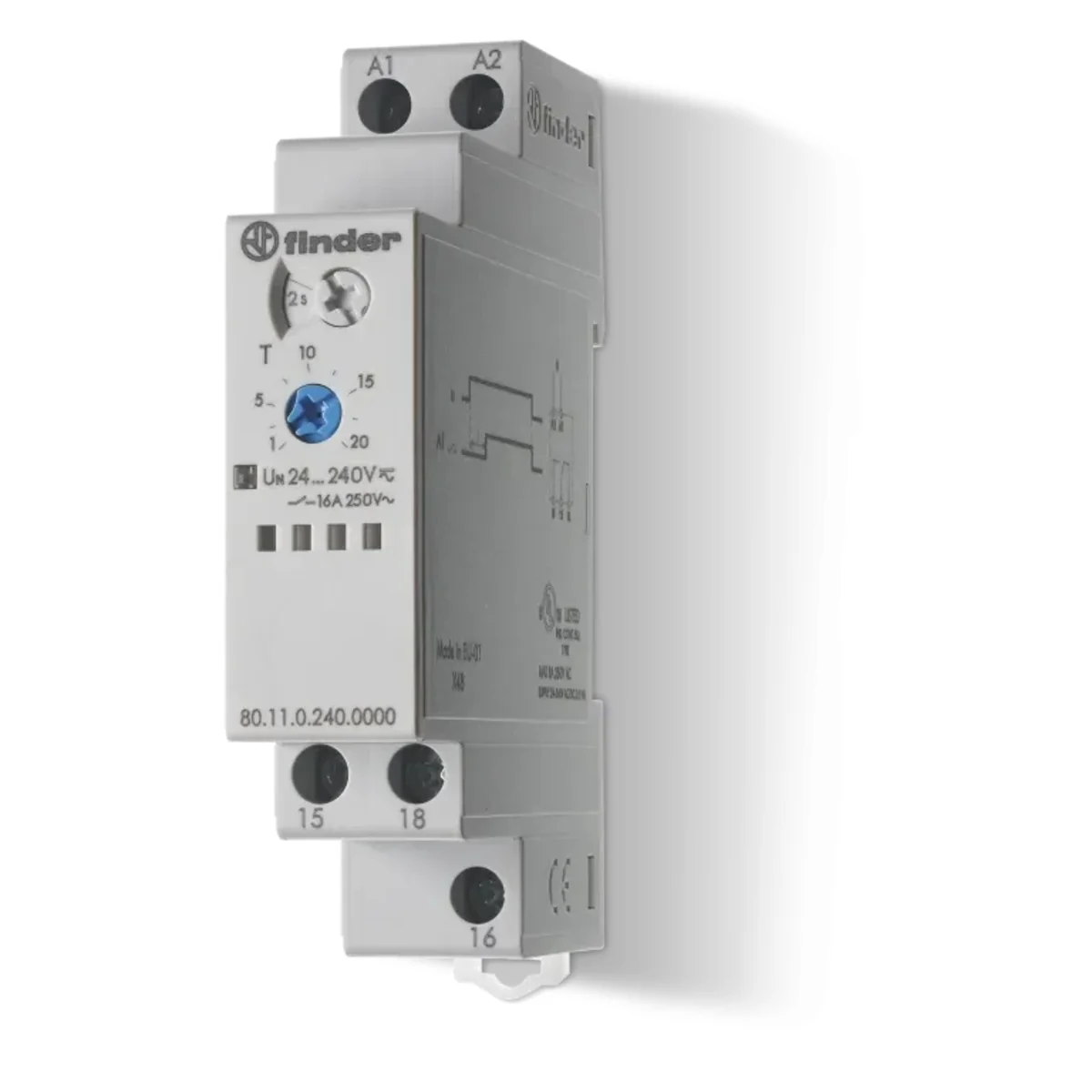

Modular time relay 16 A from the 80 series, from the manufacturer FINDER. The product part number is 80.11.0.240.0000PAS.

  • Single function,
  • Universal voltage supply.
  • Selectable six time scales from 0.1s to 24h.
  • High isolation between input and output.
  • Mounted on 35mm DIN rail (EN 60715).
  • Both a flathead and a Phillips screwdriver can be used to set functions and time ranges, fill ranges, and release the mounting clip on the rail.
  • Universal power supply using PWM technology.< /li>
  • AI: Trip after set time.
  • Coil data:
    • Rated voltage (UN): 24…240 V.
    • Pobór power AC/DC VA (50 Hz)/W: < 1.8/< 1.
    • Supply voltage range: 16.8…265 V.
    • Time ranges (0.1…2)s, (1…20)s, (0.1…2)min, (1…20)min, (0.1…2)h, ( 1…24)h.
    • Repeatability: ± 1 %.
    • Playback time: 100ms.
    • Accuracy range: ±  5 %.

Technical data

  • Maximum switching voltage [V]
    400
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Level of security
    IP20
  • Operating voltage range [V]
    24-240
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    50000
  • Contact material
    AgNi
  • Switching current [A]
    thirty
  • Family
    80
  • Width [mm]
    17.5
  • Number of contacts
    1
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Terminal type
    Threaded
