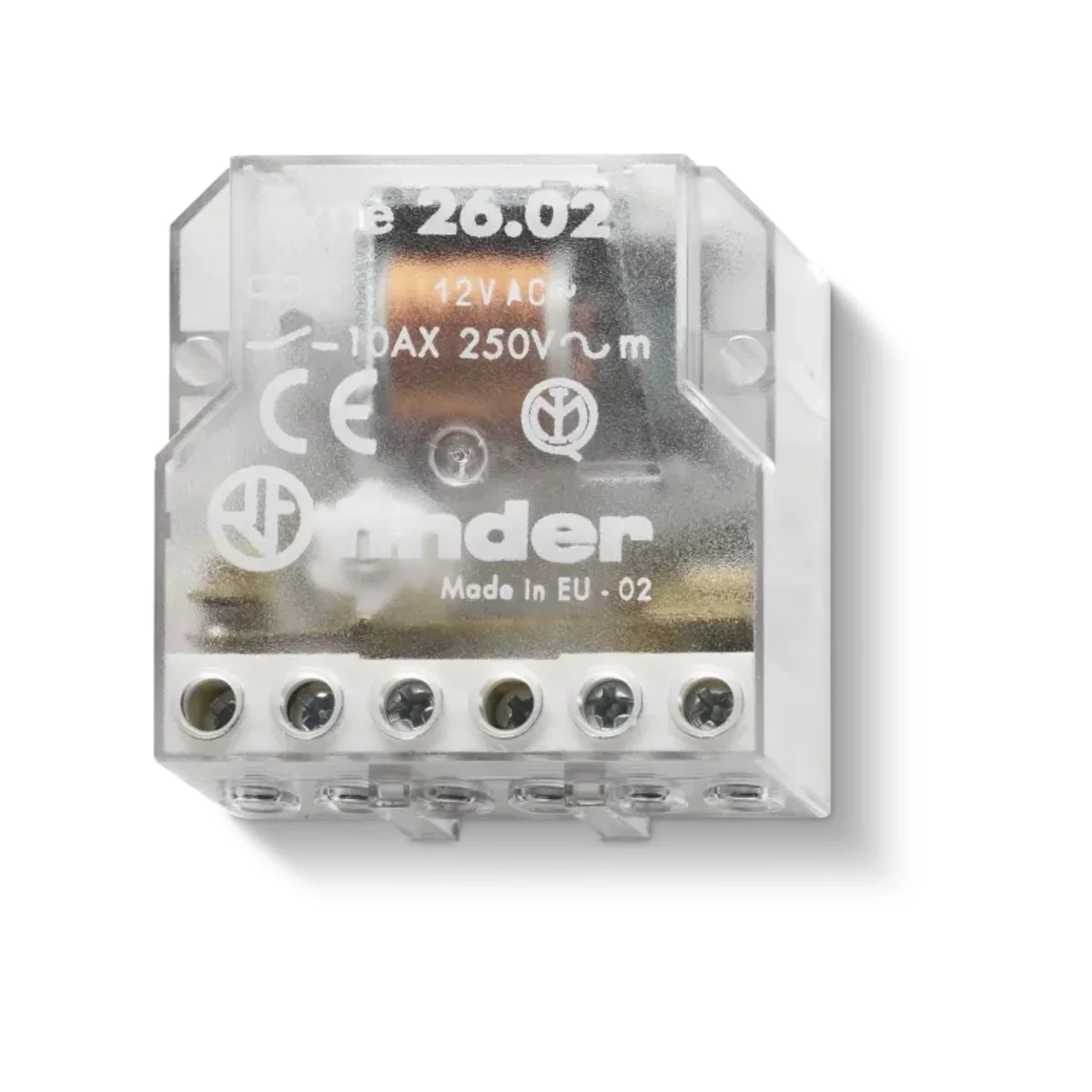

SERIES 26 Installation impulse relay with 2 contacts for installation in a 10A junction box 260282300000

Installation impulse relay with 2 contacts for installation in a junction box, 26 series, from the manufacturer FINDER. Product part number is 26.02.8.230.0000PAS.

• Screw terminals.
• AC coil.
• For mounting on panel.
• Cadmium-free contact material.
• Compliant with EN 60601-1.
• 2 x MOOP.
• Acceptable load:
  • 230V incandescent/halogen [W]: 800.
  • fluorescent lamps with stat. electronic [W]: 400.
  • fluorescent lamps with stat. electromechanical [W]: 360.
  • CFL [W]: 200.
  • 230 V LED [W]: 200.
  • NN halogen or LED with stat. electron. [W]: 200.
  • NN halogen or LED with stat. electromechanical [W]: 300.
• Coil data:
  • Rated voltage (UN): 12 - 24 - 48 - 110 - 230 V AC ( 50/60 Hz).
  • AC/DC power consumption: 4.5/— VA (50Hz)/W.
  • Supply voltage range: (0.8…1.1)UN (50 Hz) AC.
• Min ./Max. control pulse time: 0.1 s/1 h (according to EN 60669).
• Coil-contact insulation strength (1.2/50 µs): 4 kV.
