SERIES 20 Impulse relay (bistable) 2-pole 16A 202282304000PAS

local index:
APC038FIND
Catalog No:
202282304000PAS
EAN code:
8012823266879
Manufacturer: FINDER
Maximum switching voltage [V]: 400
Contact material: AgSnO2
Rated voltage [V]: 230
Price:
28,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

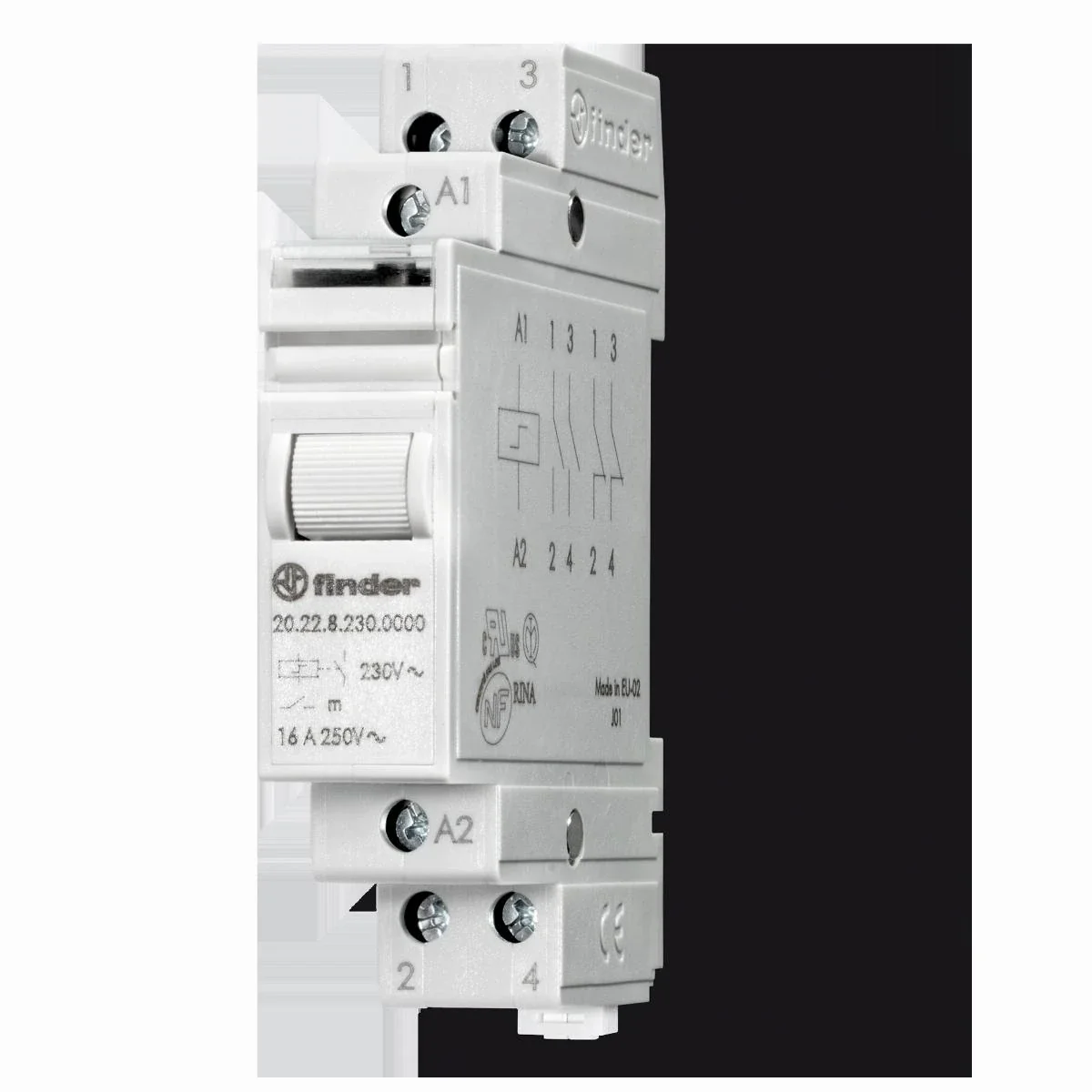

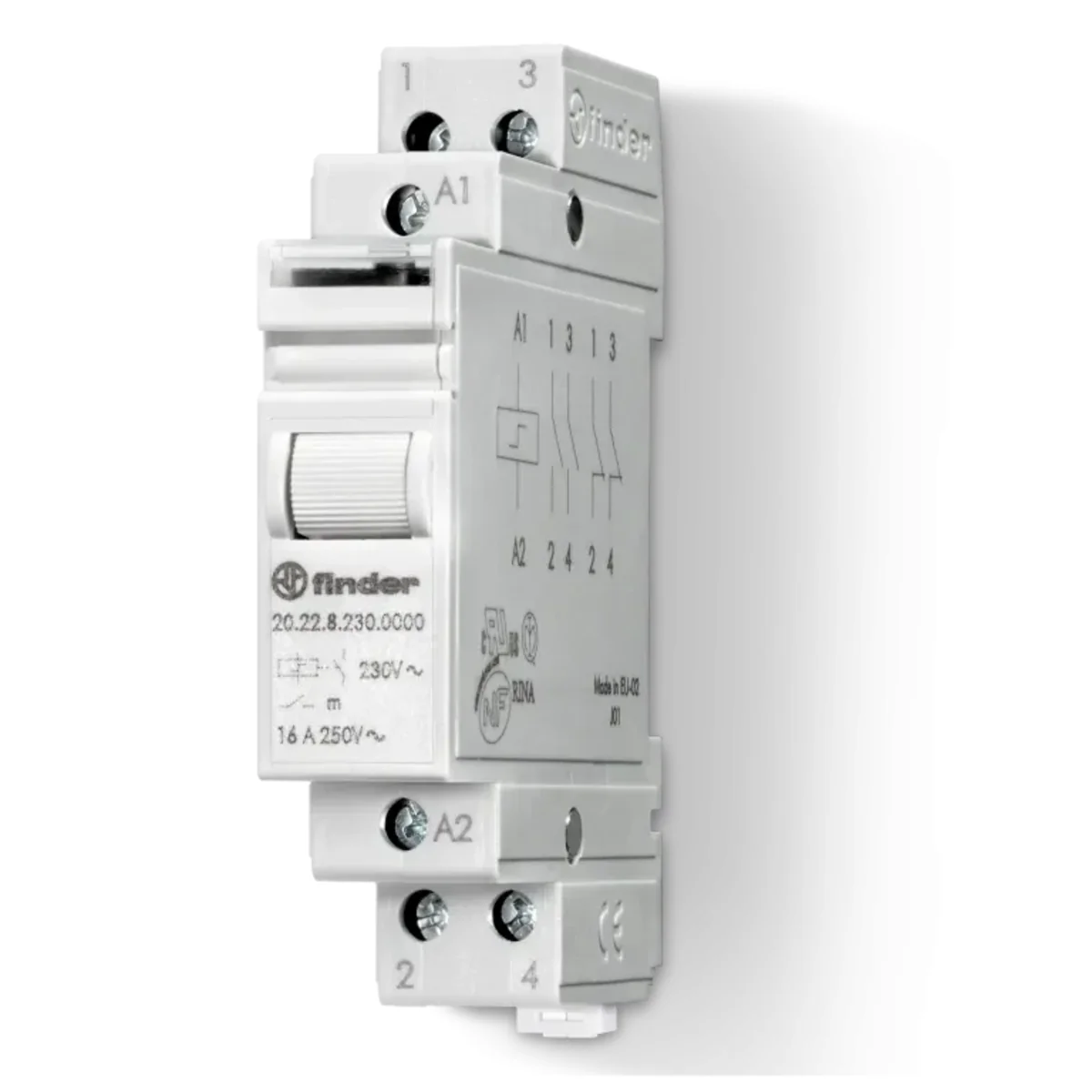

2-pole impulse relay (bistable) for mounting on a 35mm DIN rail (EN 60715), 20 series, from FINDER. The product catalog number is 20.22.8.230.4000PAS.

  • Test button with mechanical actuation indicator.
  • 7 switching programs.
  • AC and DC coil.
  • Location for nameplate.
  • EN 60601-1 compliant.
  • 2 x MOPP.
  • After installing the 026.00 capacitor, it is possible to work with illuminated pushbuttons.
  • For mounting on a 35mm DIN rail (EN 60715).
  • Permissible load:
    • 230V incandescent/halogen [W]: 2000.
    • fluorescent lamps with stat. electronic [W]: 1000.
    • fluorescent lamps with stat. electromechanical [W]: 750.
    • CFL [W]: 400.
    • 230 V LED [W]: 400.
    • NN halogen or LED with stat. electron. [W]: 400.
    • NN halogen or LED with stat. electromechanical [W]: 800.
  • Coil data:
    • Rated voltage (UN):
      • 8 - 12 - 24 - 48 - 110 - 120 - 230 - 240V AC (50/60Hz).
      • 12 - 24 - 48 - 110VDC.
    • < li>AC/DC power consumption: 6.5/5 VA (50Hz)/W.
    • Supply voltage range:
      • (0.85…1.1)UN (50 Hz )/(0.9…1.1)UN (60 Hz) AC.
      • (0.9…1.1)UN DC.
    < /li>
  • Min./Max. control pulse time: 0.1 s/1 h (according to EN 60669).
  • Coil-contact insulation strength (1.2/50 µs): 4 kV.

Technical data

  • Maximum switching voltage [V]
    400
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Level of security
    IP20
  • Mechanical durability (full cycle from on to off)
    300000
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Contact material
    AgSnO2
  • Switching current [A]
    thirty
  • Family
    20
  • Width [mm]
    17.4
  • Number of contacts
    2Z
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Terminal type
    Threaded
