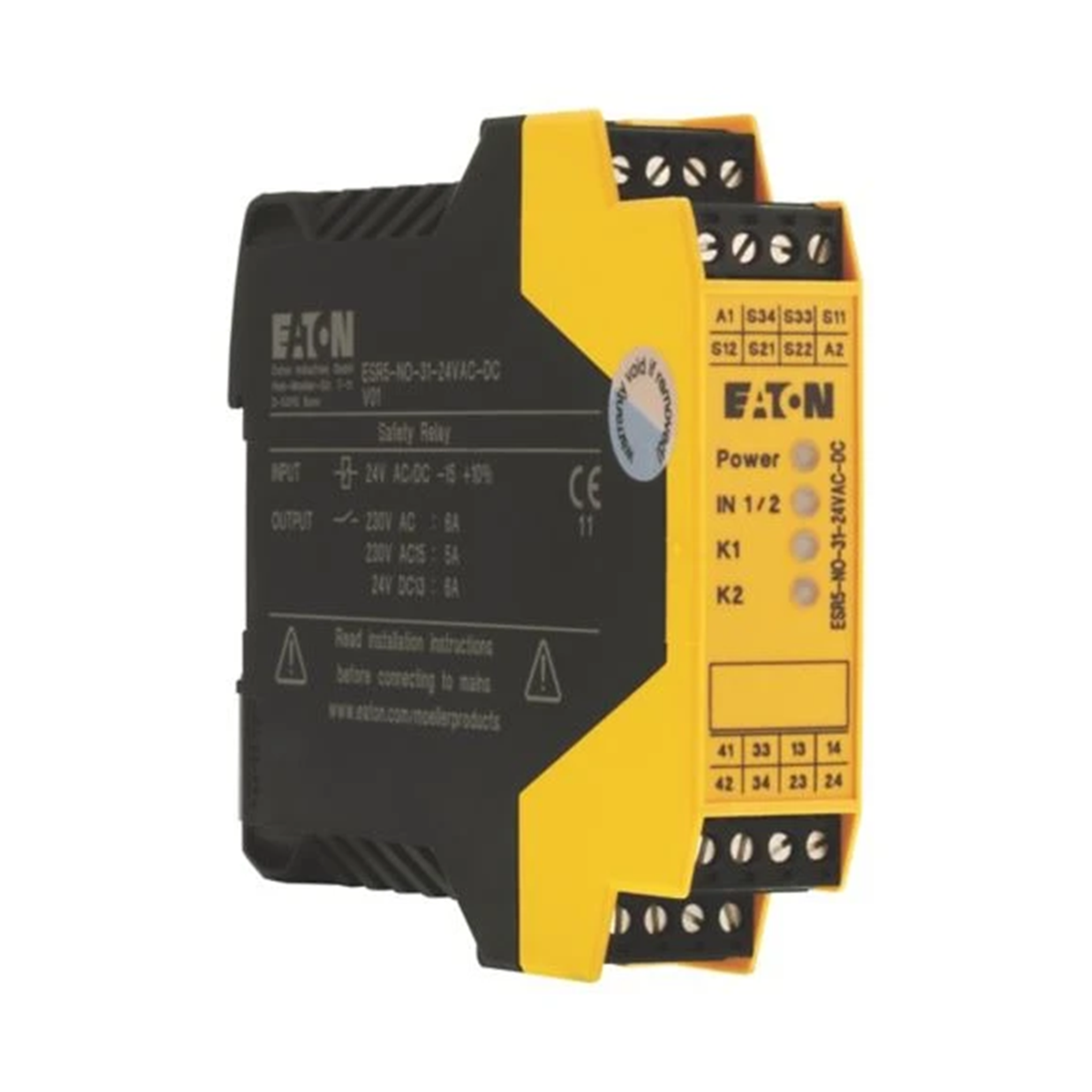

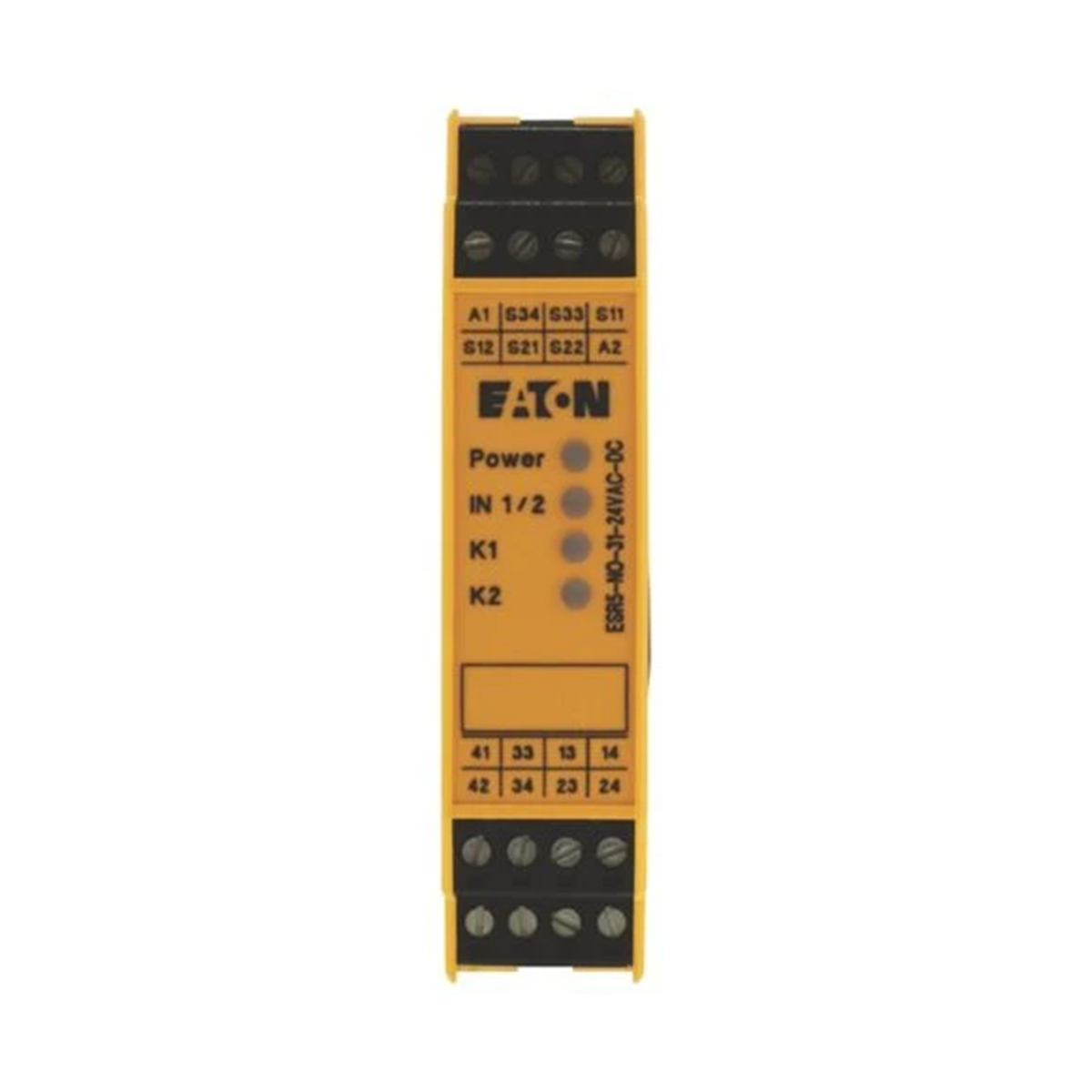

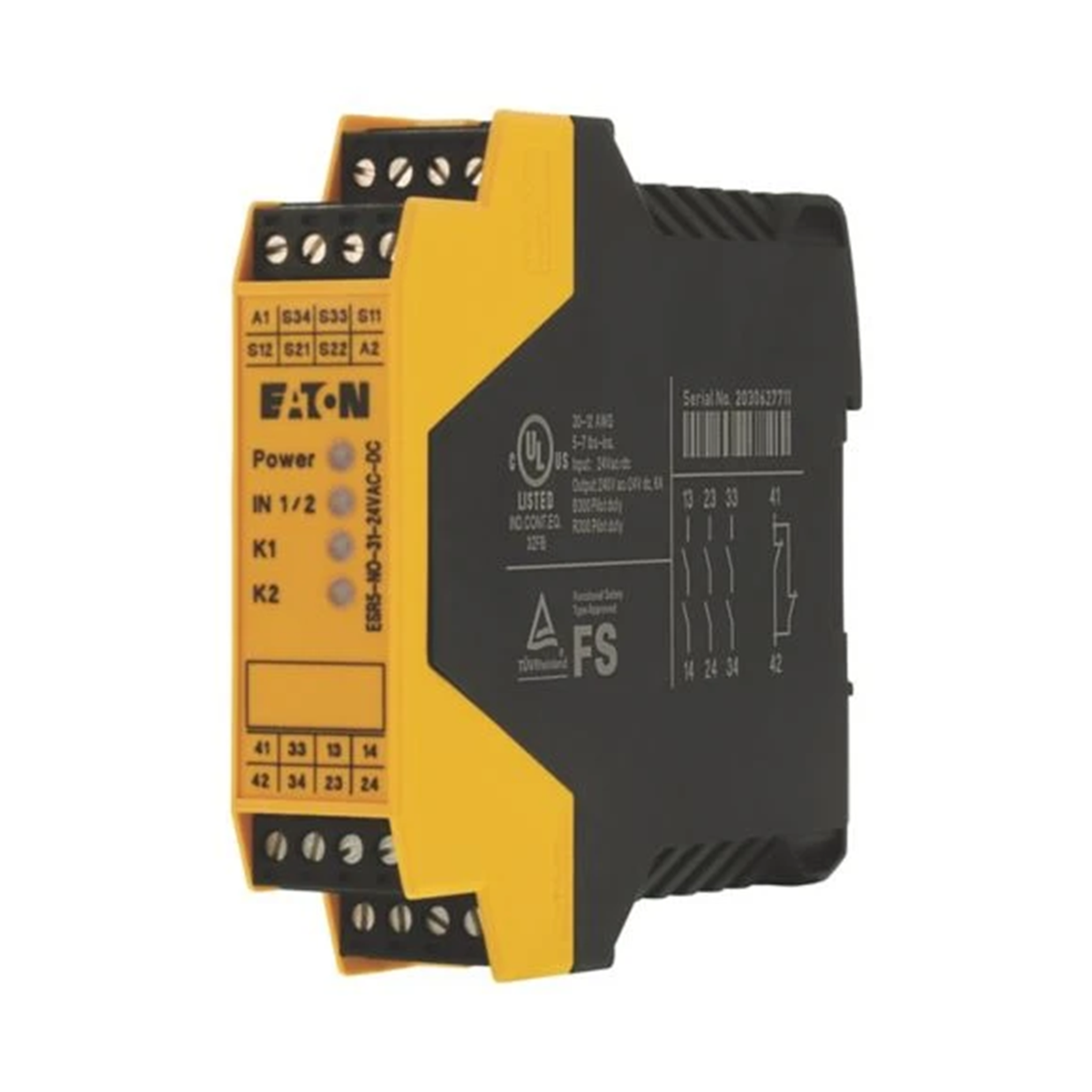

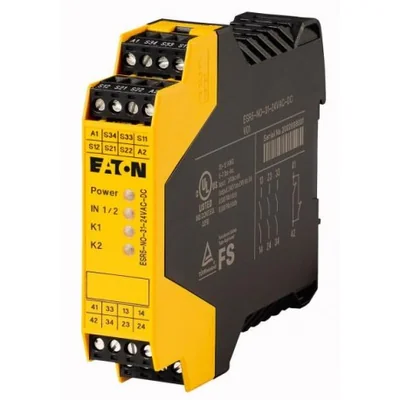

Safety relay, ESR5-NO-31-24VAC-DC 118702
local index:
APL004MOEL
Catalog No:
118702
EAN code:
4015081168422
Click on the photo to enlarge
Manufacturer:
EATON
Number of enabling circuits according to IEC/EN 60204 [Stop category]:
3
Control voltage [V]:
24
See full description
Price:
331,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
ESR5 electronic safety relays. Safety relays for controlling safety buttons and safety gates (single channel).
Technical data
Number of enabling circuits according to IEC/EN 60204 [Stop category]
3
Control voltage [V]
24
Other technical data
Model
Basic device
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of optoelectronic protection equipment
No
Suitable for monitoring of magnetic switches
No
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
0 ... 26.4 V
Rated control supply voltage DC
0 ... 24 V
With detachable clamps
Yes
With start input
Yes
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
3
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
1
Number of outputs, signalling function, undelayed, semiconductors
0
Type of safety according to IEC 61496-1
None
Performance level according to EN ISO 13849-1
Level e
With approval for BG BIA
No
Width
22.5 mm
Depth
114.5 mm
Suitable for monitoring of position switches
Yes
Suitable for monitoring of valves
No
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of proximity switches
No
Rail mounting possible
Yes
Rated control supply voltage AC 60 Hz
20.4 ... 24 V
Voltage type for actuating
AC/DC
Evaluation inputs
One- and two-channel
With muting function
No
Release-delay
0 ... 0 s
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, delayed, semiconductors
0
Stop category according to IEC 60204
0
SIL according to IEC 61508
3
With approval according to UL
Yes
Height
99 mm
With approval for TÜV
Yes
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,277
Volume (m3)
0,001
Width (m)
0,110
Length (m)
0,118
Depth (m)
0,039
