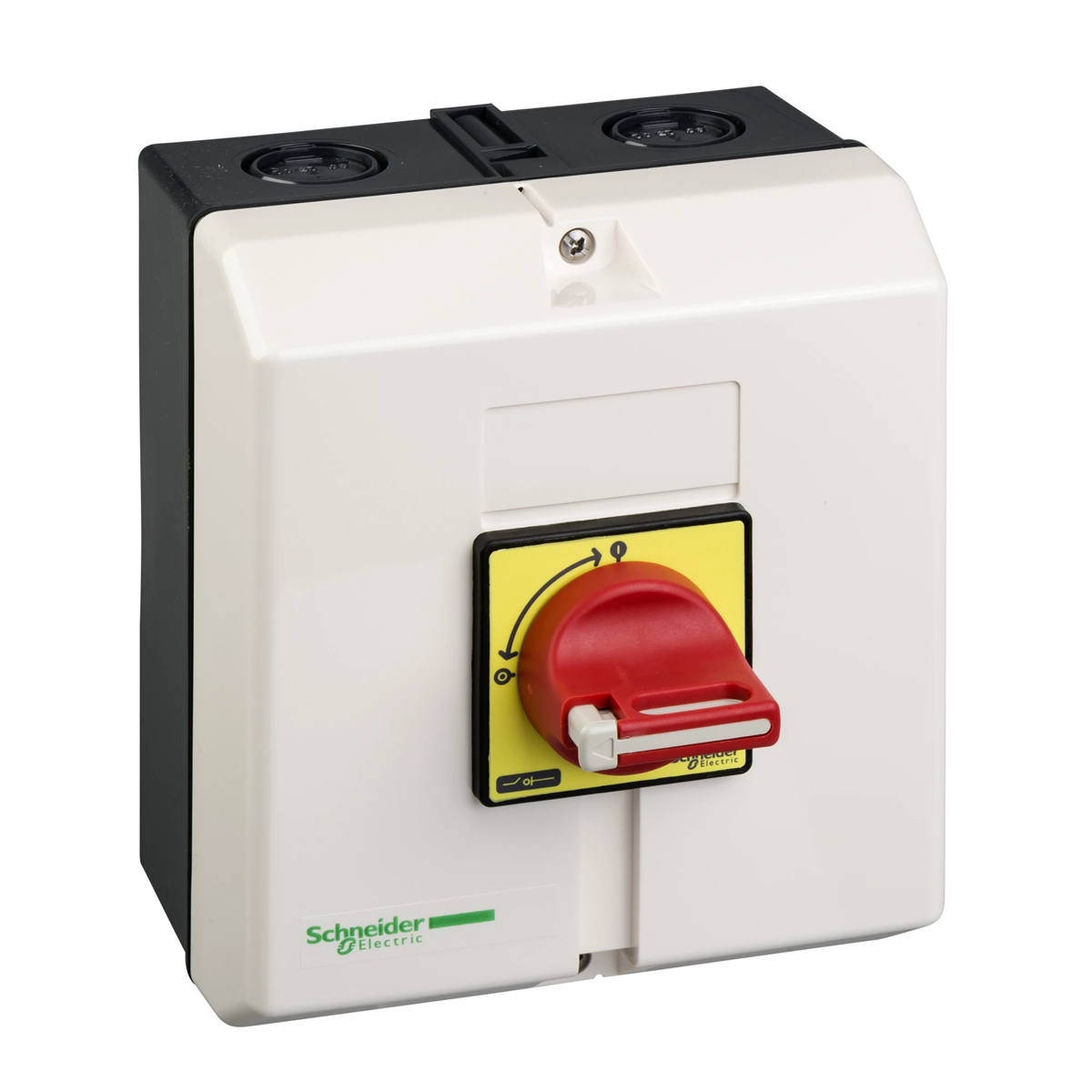

Safety main switchIn TeSys VARIO 63A enclosure VCF4GE
Index local:
ALO001SCHN
Numéro de catalogue:
VCF4GE
Code EAN:
3389110543902
Producteur:
SCHNEIDER ELECTRIC
Height [mm]: 180
Prix:
717,14 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Safety main switchIn TeSys VARIO 63A enclosure
Données techniques
-
Height [mm]180
-
PKWIU27.12.21.0
Autres données techniques
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated short-time withstand current lcw0.96 kA
-
Switching power at 400 V37 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementTurn button
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage0 ... 690 V
-
Rated permanent current at AC-23, 400 V57 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-23, 400 V30 kW
-
Conditioned rated short-circuit current Iq10 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
