RS11310 Limit switch, 1NO+1NC snap action contacts. Metal ring. RS11310

Name: RS11310 Limit switch, 1NO+1NC snap action contacts. Metal ring.
Brand: LOVATO
SKU: ALC051LOVA
Price: 212.67 PLN
Availability: BackOrder

Índice local:

ALC051LOVA

Número de catálogo:

RS11310

Código EAN:

8013975077344

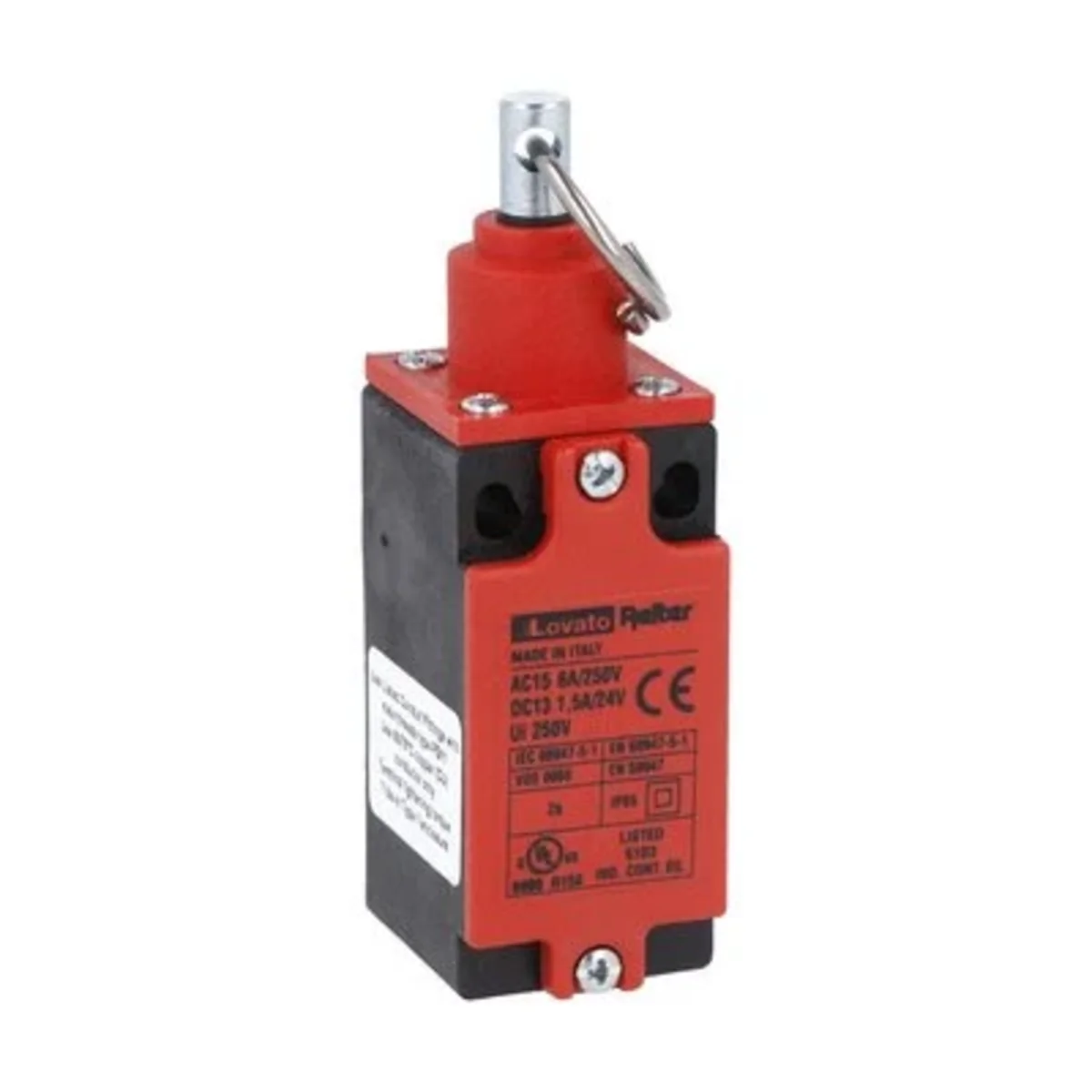

RS11310 Limit switch, 1NO+1NC snap action contacts. Metal ring.

Haga clic en la foto para ampliar

Fabricante: LOVATO

Precio:

212,67 zł

gross / uds.

(IVA incluido 23%)

hasta 2 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Datos técnicos

PKWIU

27.33.11.0

Otros datos técnicos

Width sensor

30.5 mm
Length of sensor

30 mm
Rated operation current Ie at DC-13, 24 V

1.5 A
Switching function latching

No
Forced opening

No
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Height of sensor

104 mm
Rated operation current Ie at AC-15, 230 V

6 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Type of control element

Other
Type of electric connection

Cable entry PG
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65

Detalles del fabricante

Fabricante

LOVATO ELECTRIC S.P.A.
Dirección

24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
Email

info@lovatoelectric.pl

Empaquetado a granel

una especie de paquete	Sztuka
Cantidad	1 uds.
Peso (kg)	0,096
Ancho (m)	0,044
Longitud (m)	0,100
Profundidad (m)	0,032
