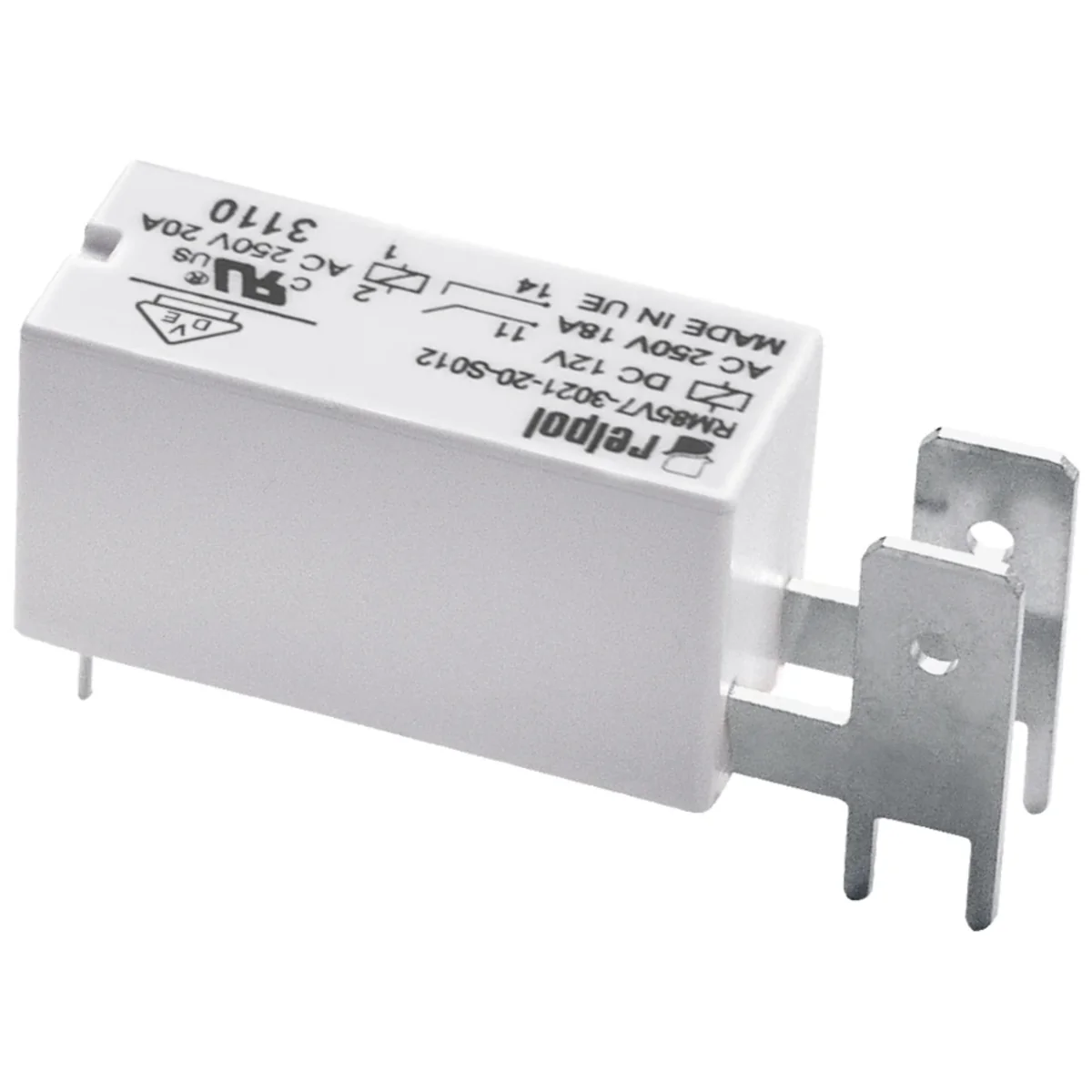

RM85 faston relay, 1 NO contact, 16 A, for printed circuit boards and for plug-in connections 855380

local index:
APE010RELP
Catalog No:
855380
Manufacturer: RELPOL
Level of security: IP40
Height [mm]: 15.7
Price:
9,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RM85 faston relay, 1 NO contact, 16 A, for printed circuit boards and for plug-in connections, height 15.7 mm, fastons arranged vertically, 7.5 mm apart, IP 40. Input / coil: A1(1) - A2(2) ), supply voltage Un - 24 V DC.

Technical data

  • Level of security
    IP40
  • Height [mm]
    15.7

Other technical data

  • Type of electric connection
    Flat plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    1
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    15.7 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    0
  • Complete with socket
    No
  • Width
    12.7 mm
  • Depth
    40.5 mm
