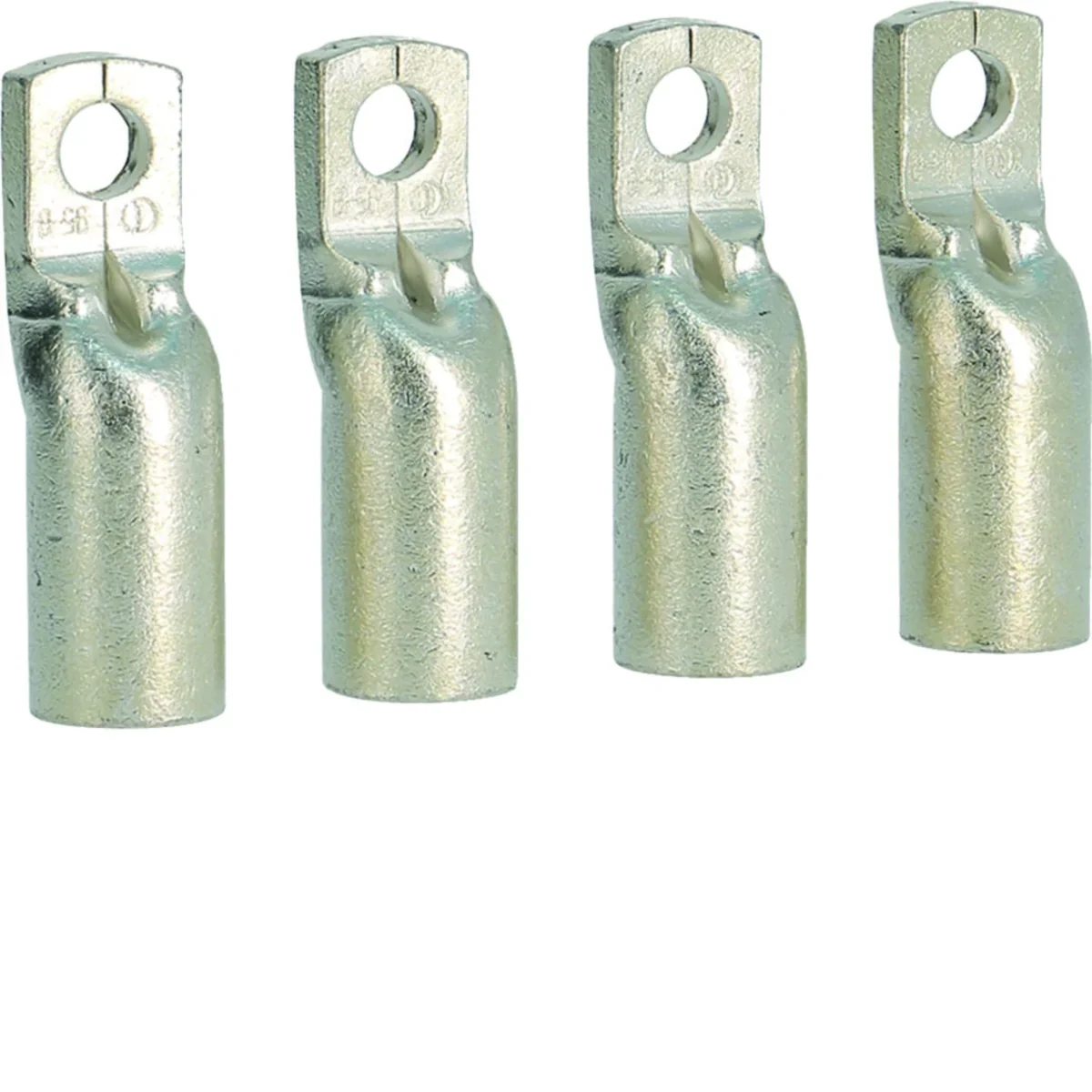

Ring terminal D:8.5 3P/4P for 95mm² wire HYA091H

local index:
ALA208HAGE
Catalog No:
HYA091H
EAN code:
3250613152703
Manufacturer: HAGER
Material: Copper
Level of security: IP4X
Surface finish: Galvanized
Price:
25,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Eye terminal:

  • D:8.5
  • 3P/4P
  • for 95mm² cable

Technical data

  • Material
    Copper
  • Surface finish
    Galvanized
  • Conductor cross-section (wire) [mm²]
    95
  • PKWIU
    27.90.44.0
  • Level of security
    IP4X
  • Wire cross-section (cord) [mm²]
    95
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    8
  • Number of mounting holes
    1
  • Surface protection
    Tinned
  • Connecting angle
    180° (horizontal)
  • Nominal cross section
    95 mm²
  • Identification colour
    None

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,170 0,180 9,080 242,920
Width (m) 0,017 0,080 0,315 0,800
Length (m) 0,017 0,023 0,216 1,014
Depth (m) 0,058 0,095 0,365 1,200
