Reversing starter, MSC-R-4-M7(24VDC) 283198

local index:
API071MOEL
Catalog No:
283198
EAN code:
4015082831981

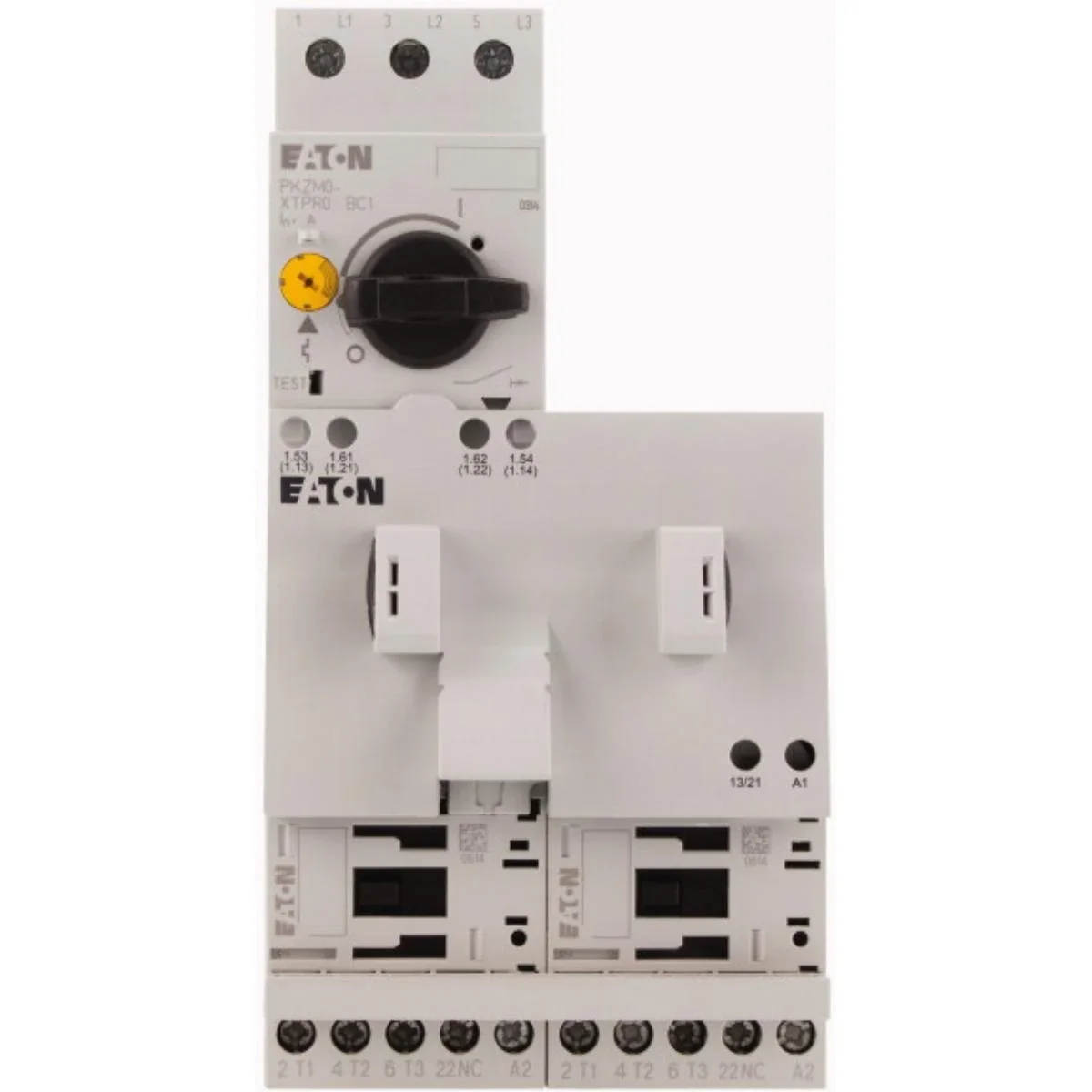

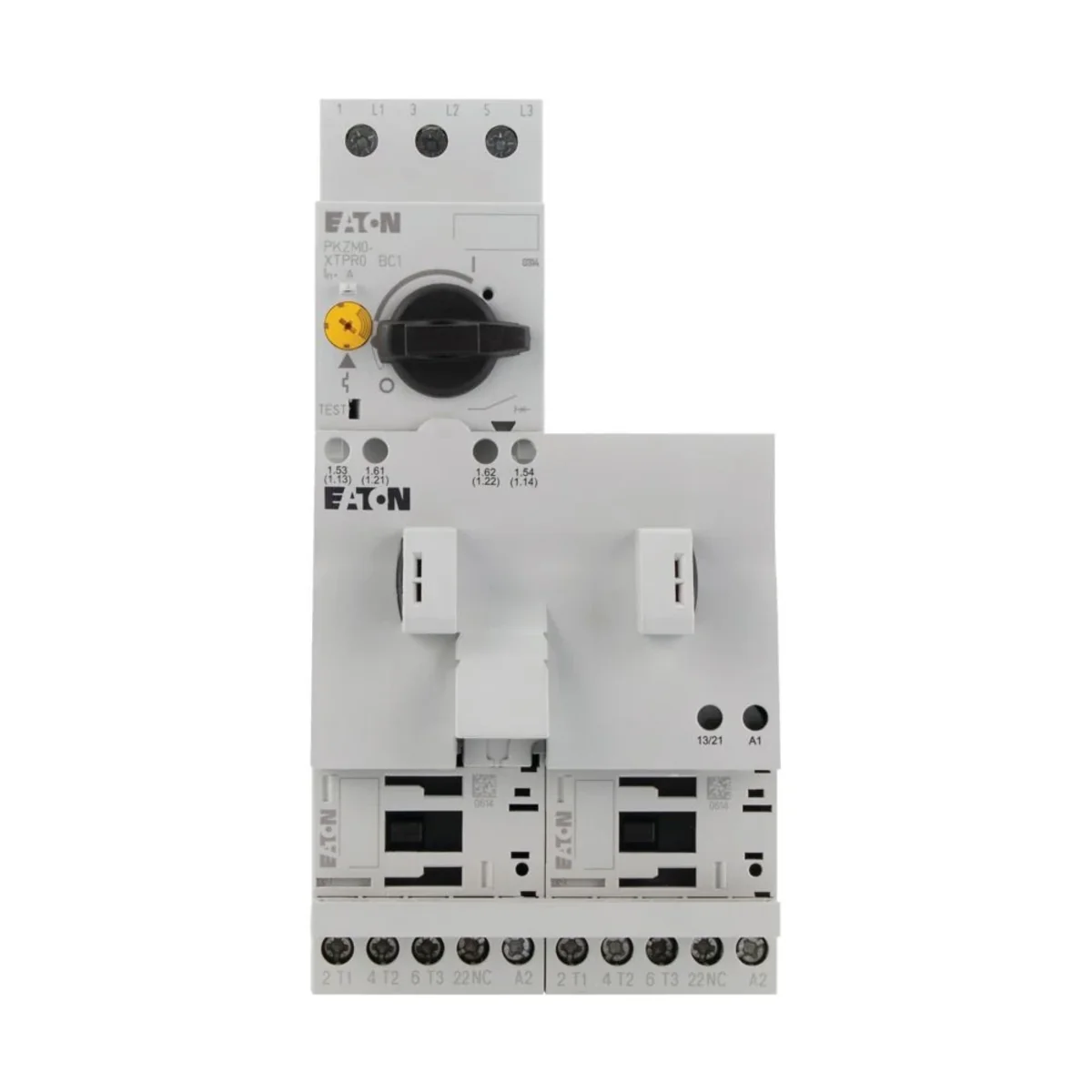

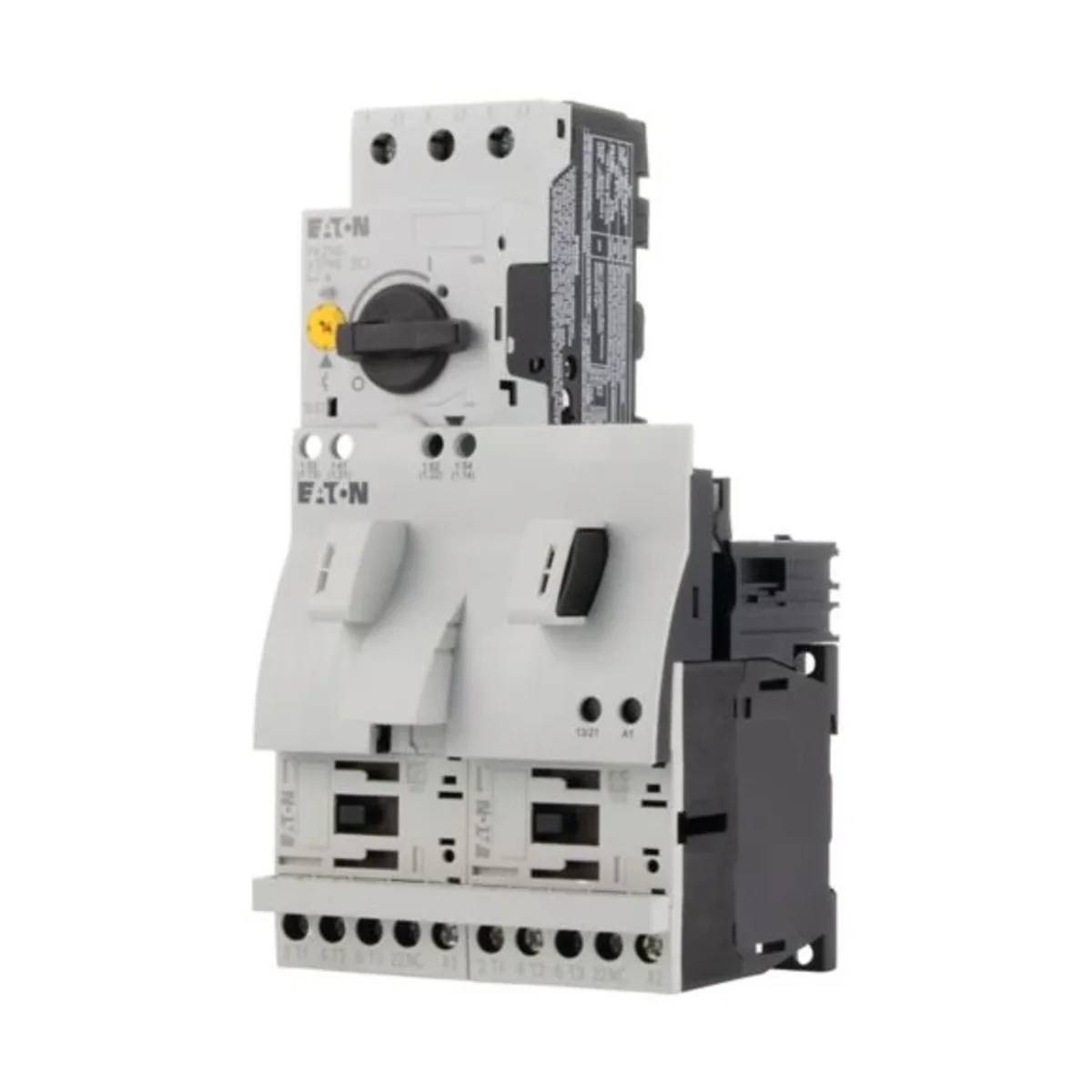

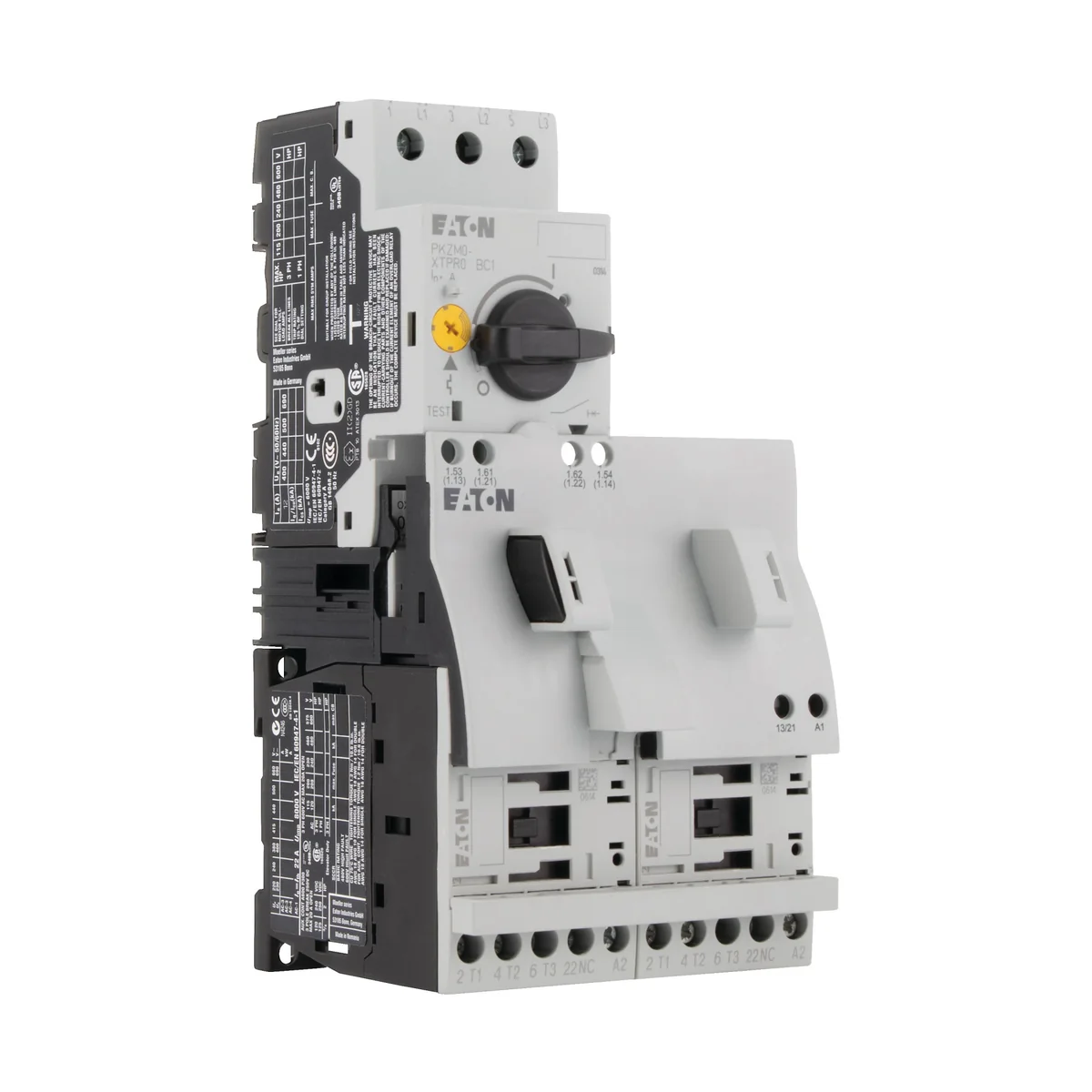

Reversing starter, MSC-R-4-M7(24VDC)
Reversing starter, MSC-R-4-M7(24VDC)

Click on the photo to enlarge

Manufacturer: EATON
Level of security: IP20
See full description
Price:
235,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

Reversing starter, MSC-R-4-M7(24VDC)

Technical data

  • Level of security
    IP20

Other technical data

  • Type of motor starter
    Reversing starter
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.75 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    3.6 A
  • Overload release current setting
    2.5 ... 4 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    50000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    95 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    1.5 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    4 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    50000 A
  • Number of auxiliary contacts as normally open contact
    0
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    90 mm
  • Depth
    185 mm

Manufacturer details

  • Manufacturer
    EATON ELECTRIC SP. Z O.O.
  • Address
    80-299 UL. GALAKTYCZNA 30
  • E-mail
    pl-zamowienia@eaton.com
  • Tax identification number
    5841022327

Bulk packaging

A kind of package Skrzynia Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,116 1,116
Volume (m3) 0,002 0,002
Width (m) 0,100 0,100
Length (m) 0,220 0,220
Depth (m) 0,110 0,110
