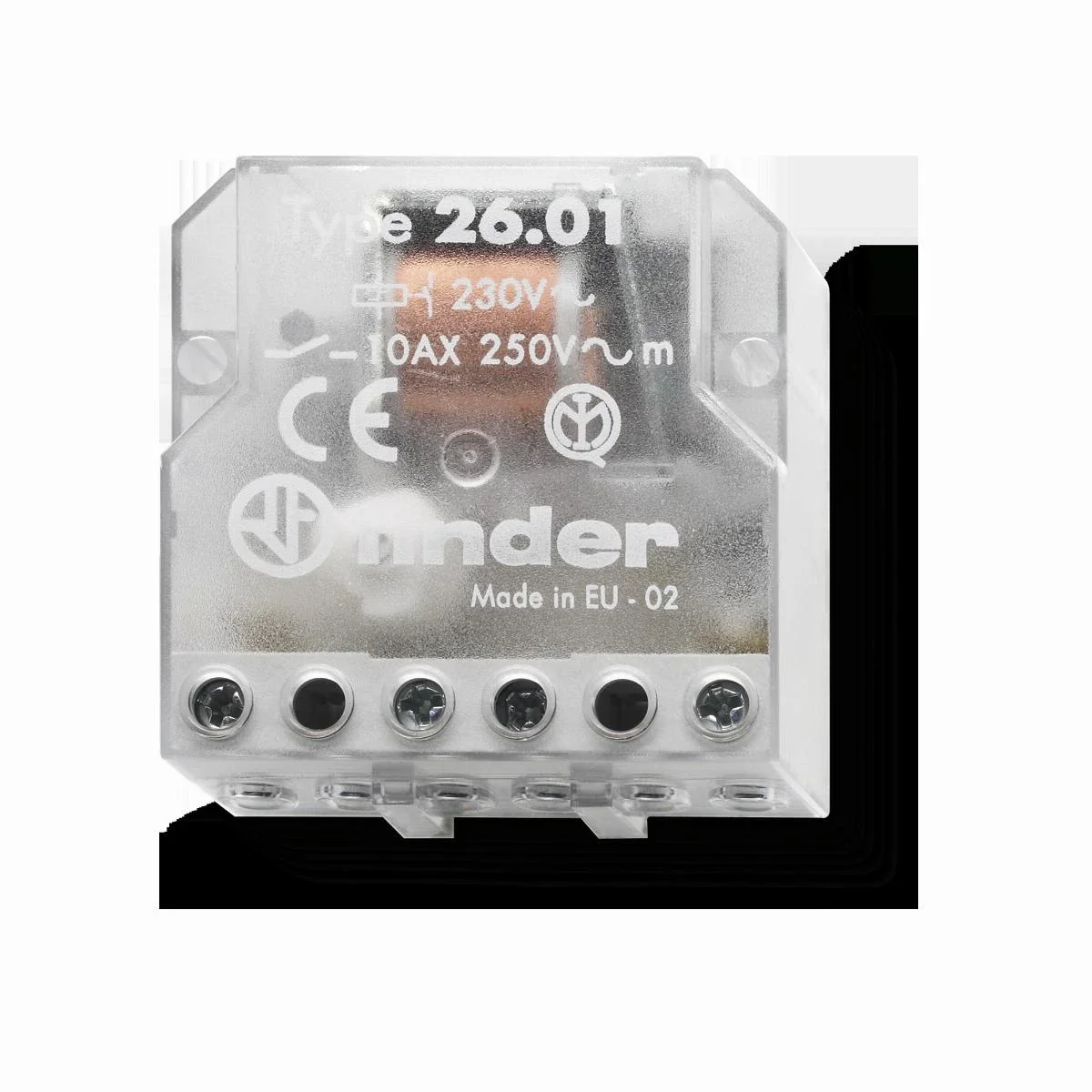

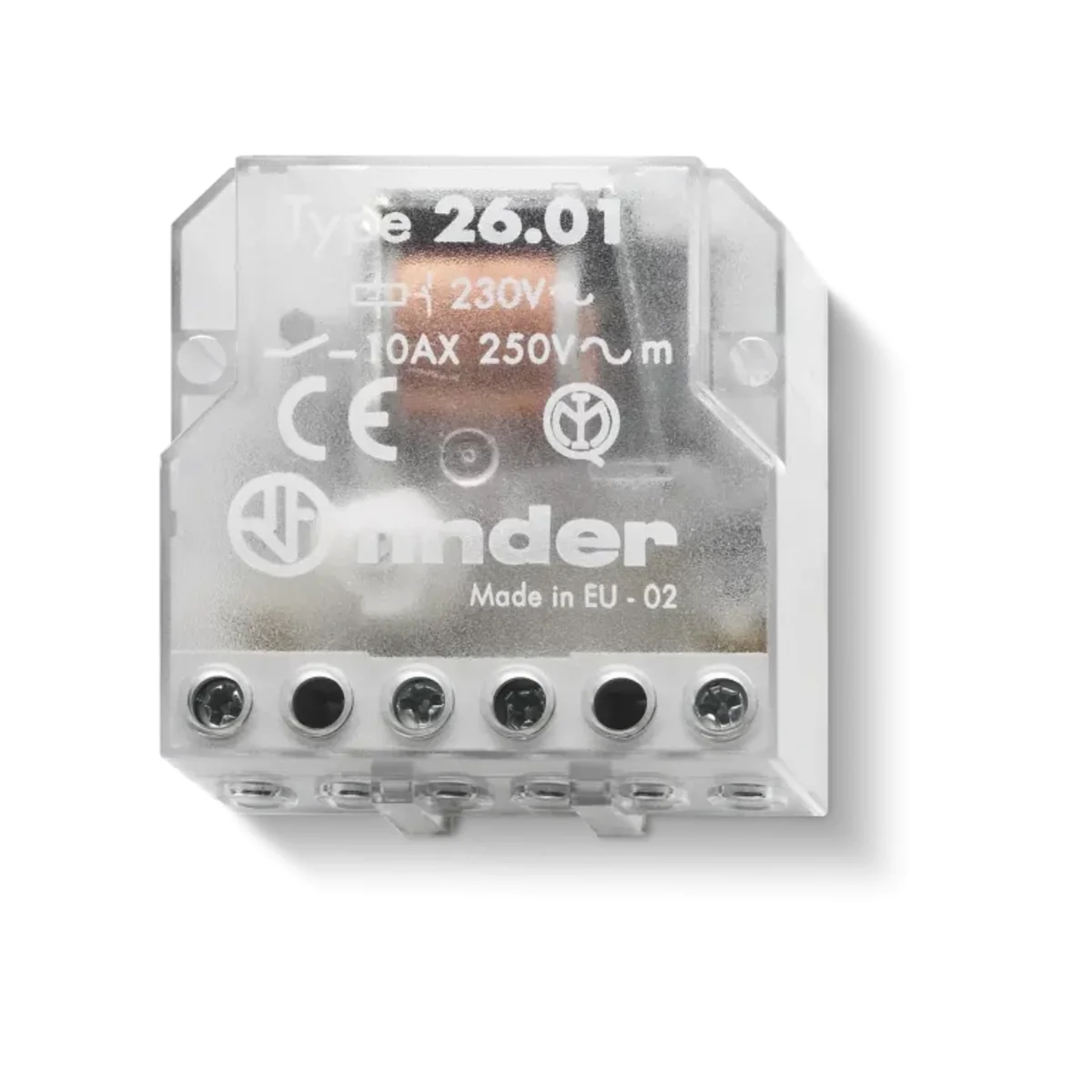

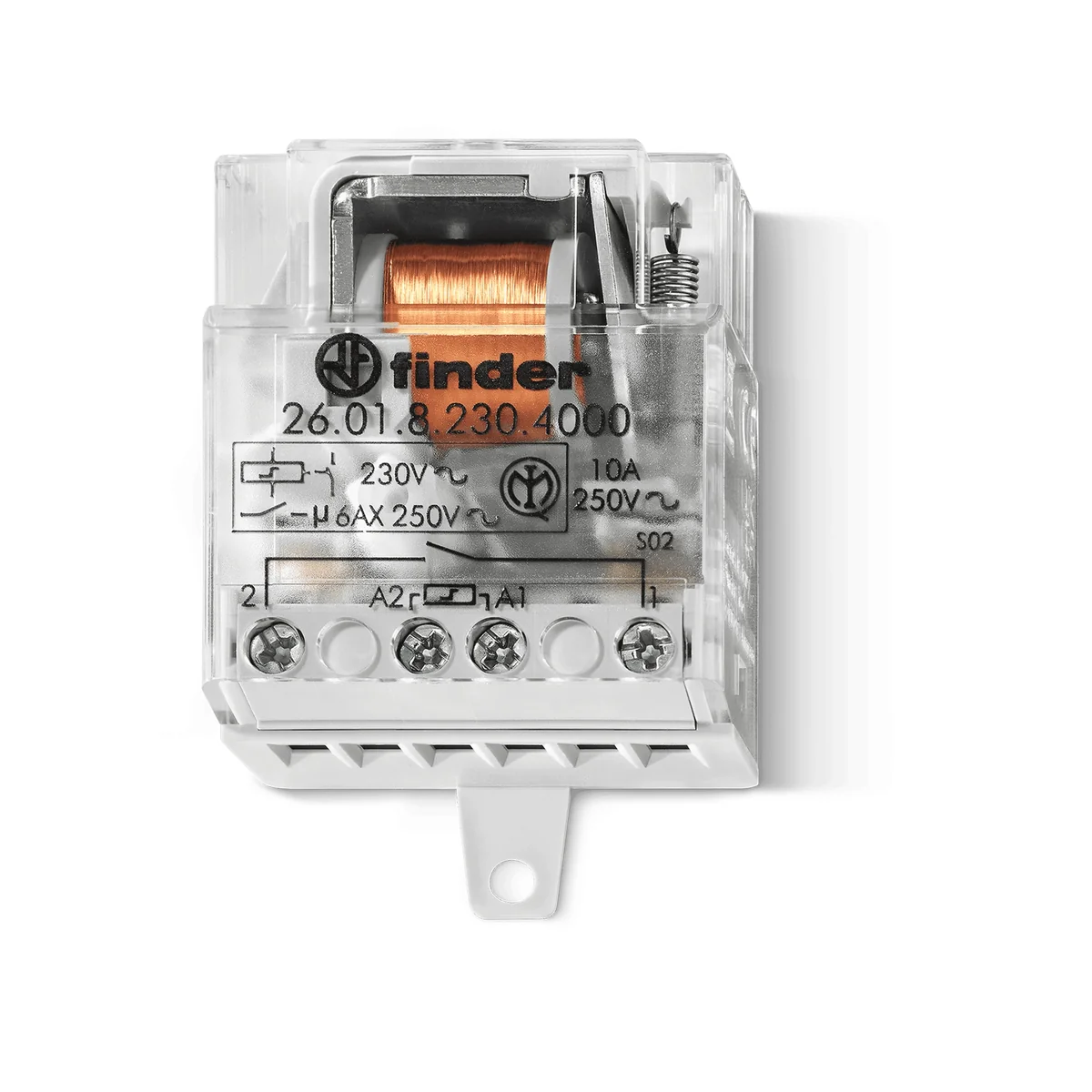

Relay;pulse;1Z;10A;230V;AC 260182300000
local index:
APC012FIND
Catalog No:
260182300000
EAN code:
8012823238074
Manufacturer:
FINDER
Pin configuration: SPST-NO + SPST-NC
Maximum switching voltage [V]: 400
Contact material: AgNi
Price:
10,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Installation impulse relay for installation in a junction box
- 6 contact sequences
- AC coil
- DC control (12 or 24) via adapter< /li>
- For switching lights, blinds, etc. via push button
- Impulse causes next contact
Technical data
-
Pin configurationSPST-NO + SPST-NC
-
Contact materialAgNi
-
Rated voltage [V]230
-
Switching current [A]20
-
Level of securityIP20
-
Maximum switching voltage [V]400
-
Fixingscrew terminals
-
Power consumption [VA]4.5
-
Rated current [A]10
-
Number of contacts1Z
Other technical data
-
FunctionMechanical switch
-
Built-in depth22 mm
-
Liczba styków rozwiernych0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load800 W
-
Max. load fluorescent lamp (Duo circuit)400 VA
-
Max. switching current (cos phi = 0.6)5 A
-
Mounting methodOther
-
Liczba styków zwiernych1
-
Liczba styków przełącznych0
-
Type of control voltage 1AC
-
Rated switch current10 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp400 VA
-
Max. load fluorescent lamp (parallel compensated)360 VA
-
Możliwa obsługa ręcznaYes
Manufacturer details
-
ManufacturerFINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ
-
Address62-080 UL. LOGISTYCZNA 27
-
E-mail
-
Tax identification number7792442331
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,057 | 0,629 |
| Width (m) | 0,032 | 0,165 |
| Length (m) | 0,055 | 0,112 |
| Depth (m) | 0,085 | 0,100 |
