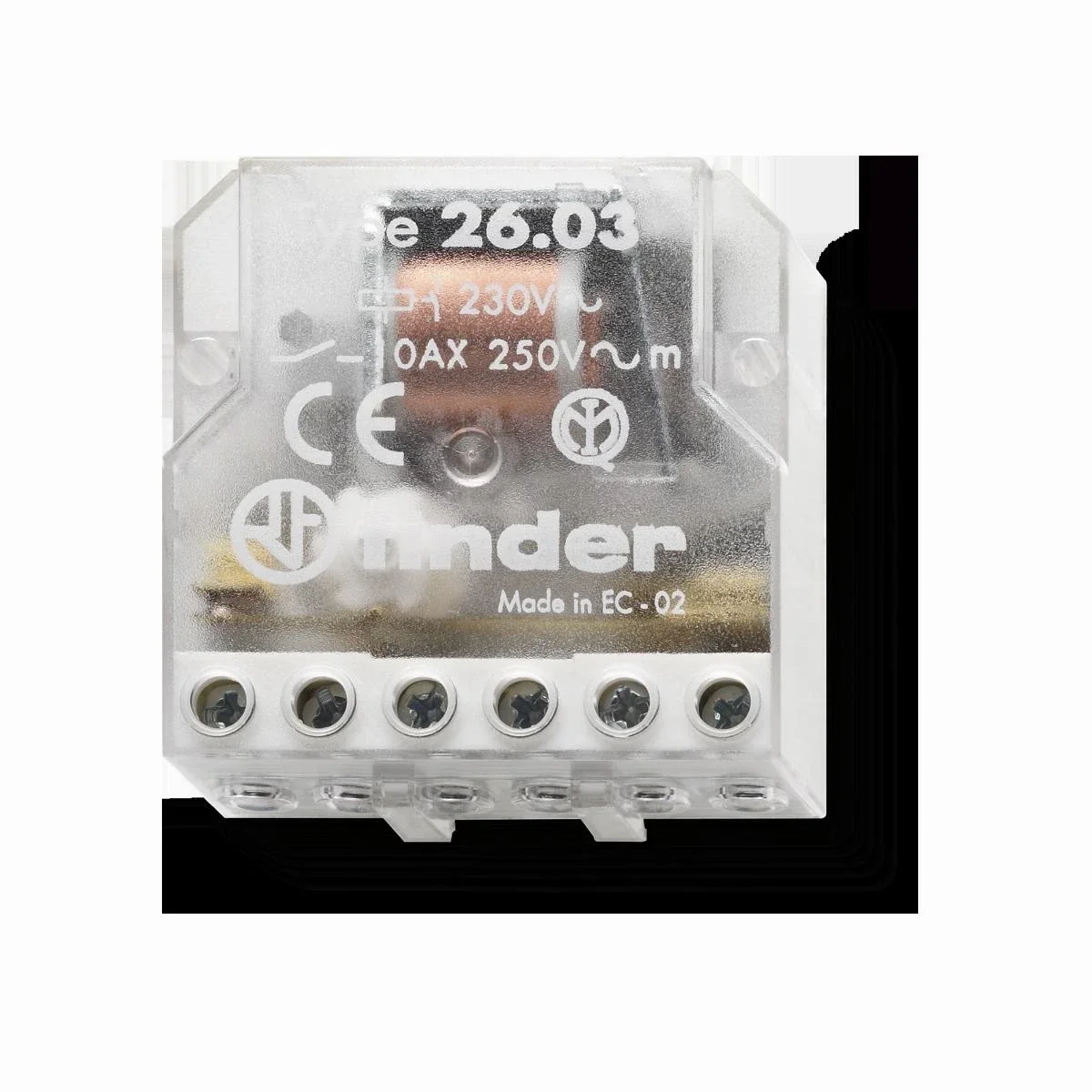

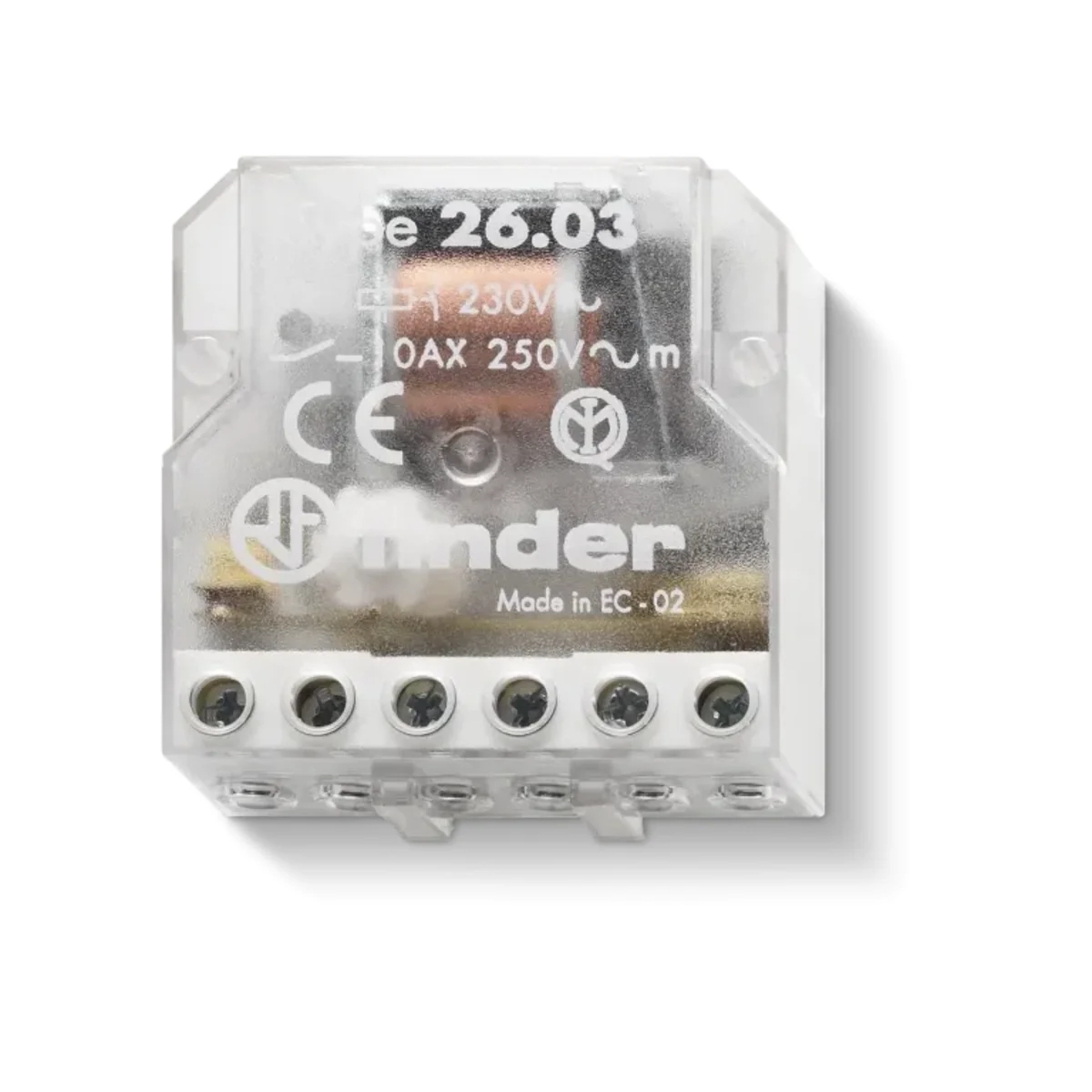

Relay;pulse;1C;+;1R;10A;230V;AC 260382300000

local index:
APC017FIND
Catalog No:
260382300000
EAN code:
8012823238180
Manufacturer: FINDER
Pin configuration: 3PST-NO + SPST-NC
Maximum switching voltage [V]: 400
Contact material: AgNi
Price:
12,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 28 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Installation impulse relay for mounting in a junction box

  • 6 contact sequences
  • AC coil
  • DC control (12 or 24) via adapter< /li>
  • For switching lights, blinds, etc. with a button
  • Impulse causes next contact

Technical data

  • Pin configuration
    3PST-NO + SPST-NC
  • Contact material
    AgNi
  • Rated voltage [V]
    230
  • Switching current [A]
    20
  • Level of security
    IP20
  • Maximum switching voltage [V]
    400
  • Fixing
    screw terminals
  • Power consumption [VA]
    4.5
  • Rated current [A]
    10
  • Number of contacts
    1Z+1R

Other technical data

  • Function
    Mechanical switch
  • Built-in depth
    22 mm
  • Liczba styków rozwiernych
    1
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    800 W
  • Max. load fluorescent lamp (Duo circuit)
    400 VA
  • Max. switching current (cos phi = 0.6)
    5 A
  • Mounting method
    Other
  • Liczba styków zwiernych
    1
  • Liczba styków przełącznych
    0
  • Type of control voltage 1
    AC
  • Rated switch current
    10 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    400 VA
  • Max. load fluorescent lamp (parallel compensated)
    360 VA
  • Możliwa obsługa ręczna
    Yes

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 10 pcs. 1 pcs.
Weight (kg) 0,692 0,063
Width (m) 0,165 0,032
Length (m) 0,112 0,055
Depth (m) 0,100 0,085
