Relay;module;coupling;EMR;MasterBASIC;1P;6A;24V;AC/DC 391100240060

Name: Relay;module;coupling;EMR;MasterBASIC;1P;6A;24V;AC/DC
Brand: FINDER
SKU: APC081FIND
Price: 14.12 PLN
Availability: InStock

local index:

APC081FIND

Catalog No:

391100240060

EAN code:

8012823353616

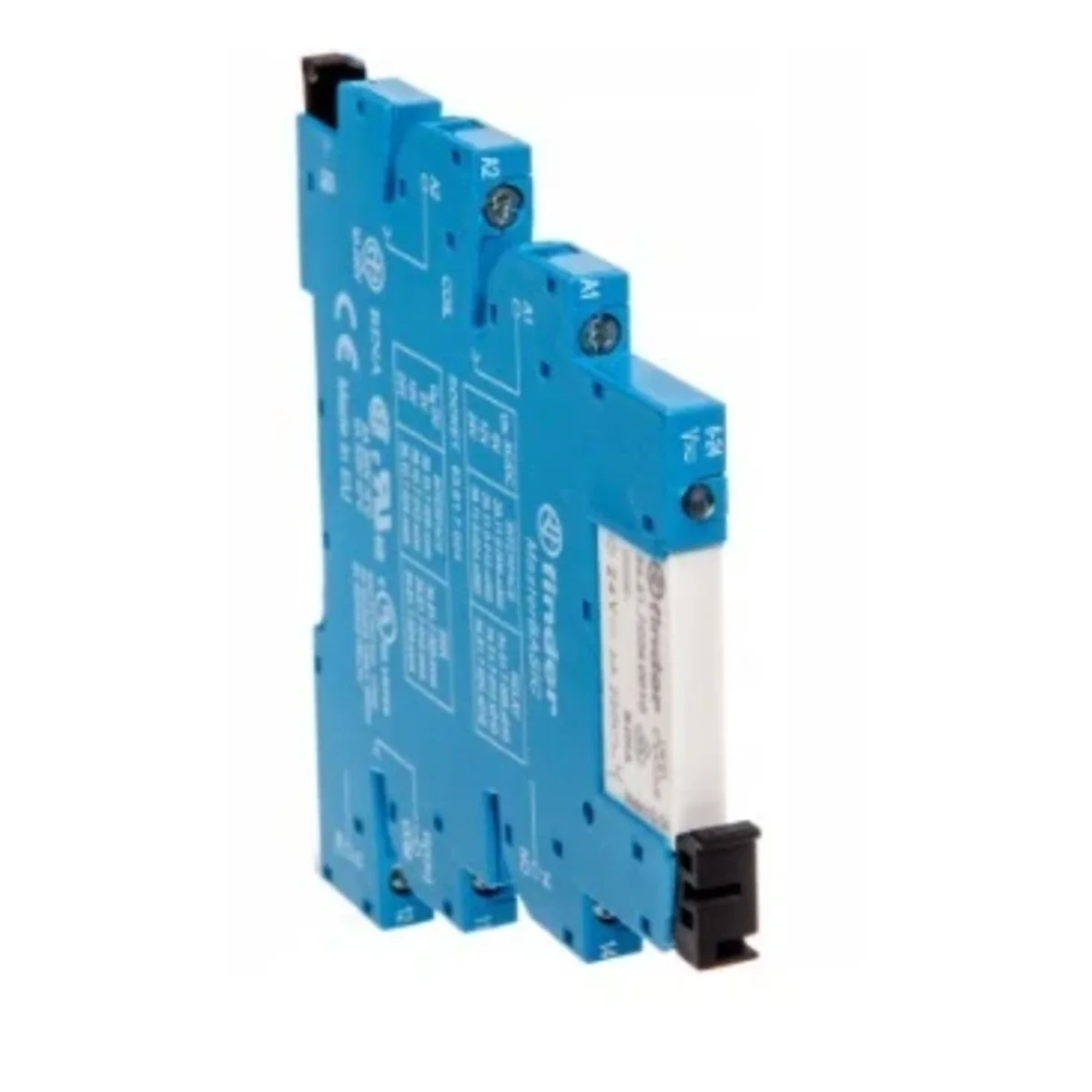

Relay;module;coupling;EMR;MasterBASIC;1P;6A;24V;AC/DC

Click on the photo to enlarge

Manufacturer: FINDER

Pin configuration: SPDT

Maximum switching voltage [V]: 400

Contact material: AgNi

See full description

Price:

14,12 €

gross / pcs.

(including VAT 23%)

Accessible 96 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

6.2 mm wide relay coupling module ideal for electronic PLC systems

Group connection of terminals A1, A2 or 11 possible with jumpers
6 to 24 V AC control /DC and 230 V AC
Mounting on 35 mm DIN rail (EN 60715)

Technical data

Pin configuration

SPDT
Contact material

AgNi
Installation

On the TH-35 rail
Rated voltage [V]

24
Rated current [A]

6
Dimensions [mm]

90.7 x 6.2 x 87

Maximum switching voltage [V]

400
Fixing

screw terminals
Coil voltage [V]

24
Switching current [A]

10
Level of security

IP20
Number of contacts

1P

Other technical data

Type of electric connection

Screw connection
Rated control supply voltage AC 50 Hz

24 ... 24 V
Rated control supply voltage DC

24 ... 24 V
Drive, polarization

Polarity free
Number of contacts as normally closed contact

0
Number of contacts as change-over contact

1
Type of switch contact

Single contact
Degree of protection (IP)

IP20
Height

87 mm

With detachable clamps

Yes
Rated control supply voltage AC 60 Hz

24 ... 24 V
Voltage type for actuating

AC/DC
Drive, switching attitude

Mono stable
Number of contacts as normally open contact

0
With forced-guided contacts

Yes
Complete with socket

Yes
Width

6.2 mm
Depth

90.7 mm

Manufacturer details

Manufacturer

FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ
Address

62-080 UL. LOGISTYCZNA 27
E-mail

finder.pl@findernet.com
Tax identification number

7792442331

Bulk packaging

A kind of package	Sztuka	Paczka
Quantity	10 pcs.	10 pcs.
Weight (kg)	0,390	-
Width (m)	0,093	-
Length (m)	0,067	-
Depth (m)	0,095	-
