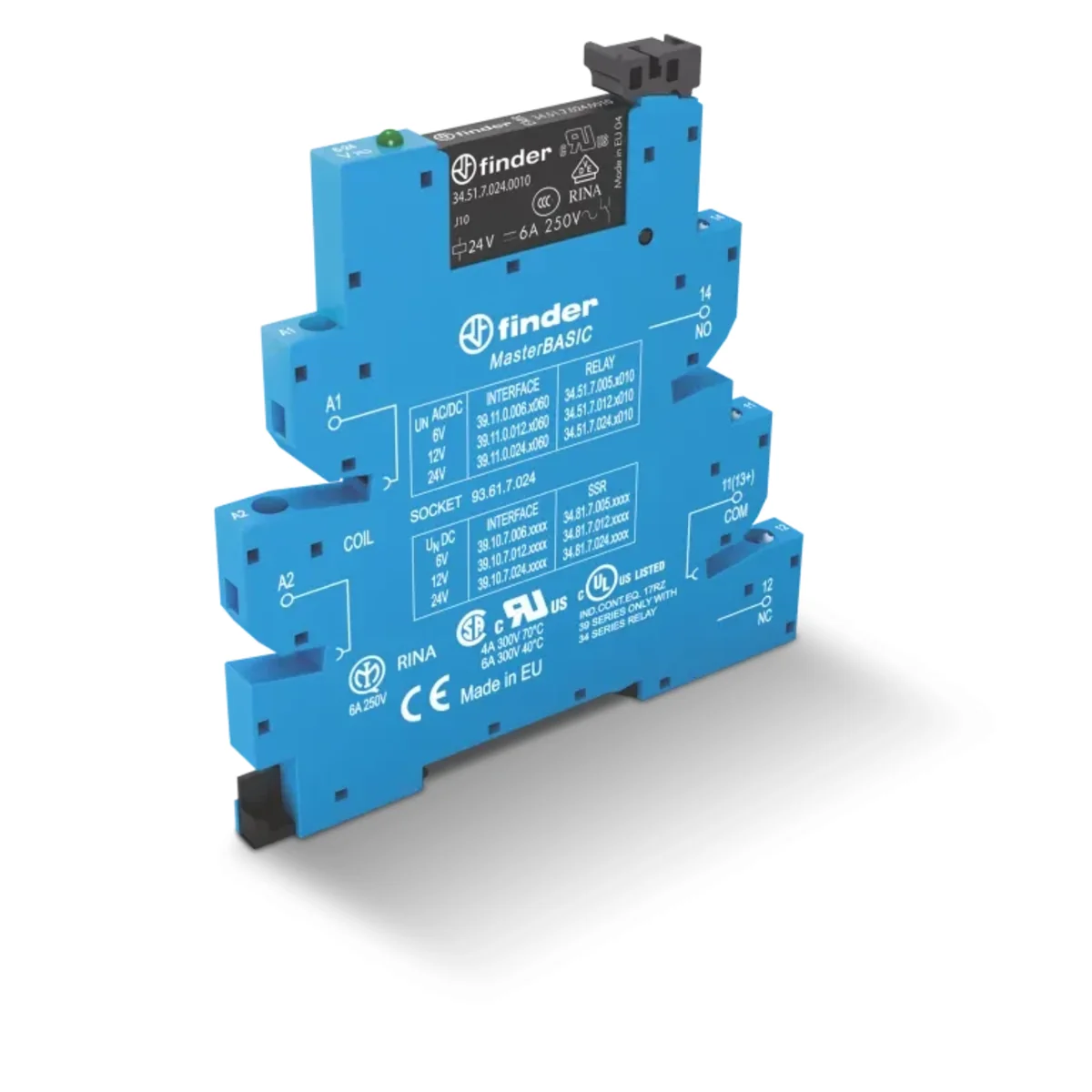

Relay;module;coupling;EMR;MasterBASIC;1P;6A;230V;AC 391182300060
local index:
APC082FIND
Catalog No:
391182300060
EAN code:
8012823356884
Manufacturer:
FINDER
Pin configuration: SPDT
Maximum switching voltage [V]: 400
Contact material: AgNi
Price:
19,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
6.2 mm wide relay coupling module ideal for electronic PLC systems
- Group connection of terminals A1, A2 or 11 possible with jumpers
- 6 to 24 V AC control /DC and 230 V AC
- Mounting on 35 mm DIN rail (EN 60715)
Technical data
-
Pin configurationSPDT
-
Contact materialAgNi
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Rated current [A]6
-
Dimensions [mm]90.7 x 6.2 x 87
-
Maximum switching voltage [V]400
-
Fixingscrew terminals
-
Coil voltage [V]230
-
Switching current [A]10
-
Level of securityIP20
-
Number of contacts1P
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
With forced-guided contactsYes
-
Complete with socketYes
-
Width6.2 mm
-
Depth90.7 mm
-
With detachable clampsYes
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP20
-
Height87 mm
Manufacturer details
-
ManufacturerFINDER Polska Sp. z o.o.
-
Address62-080 Sady Logistyczna 27
-
E-mail
-
Tax identification number7792442331
-
GLN5907222322000
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 10 pcs. |
| Weight (kg) | 0,407 |
| Width (m) | 0,093 |
| Length (m) | 0,067 |
| Depth (m) | 0,095 |
