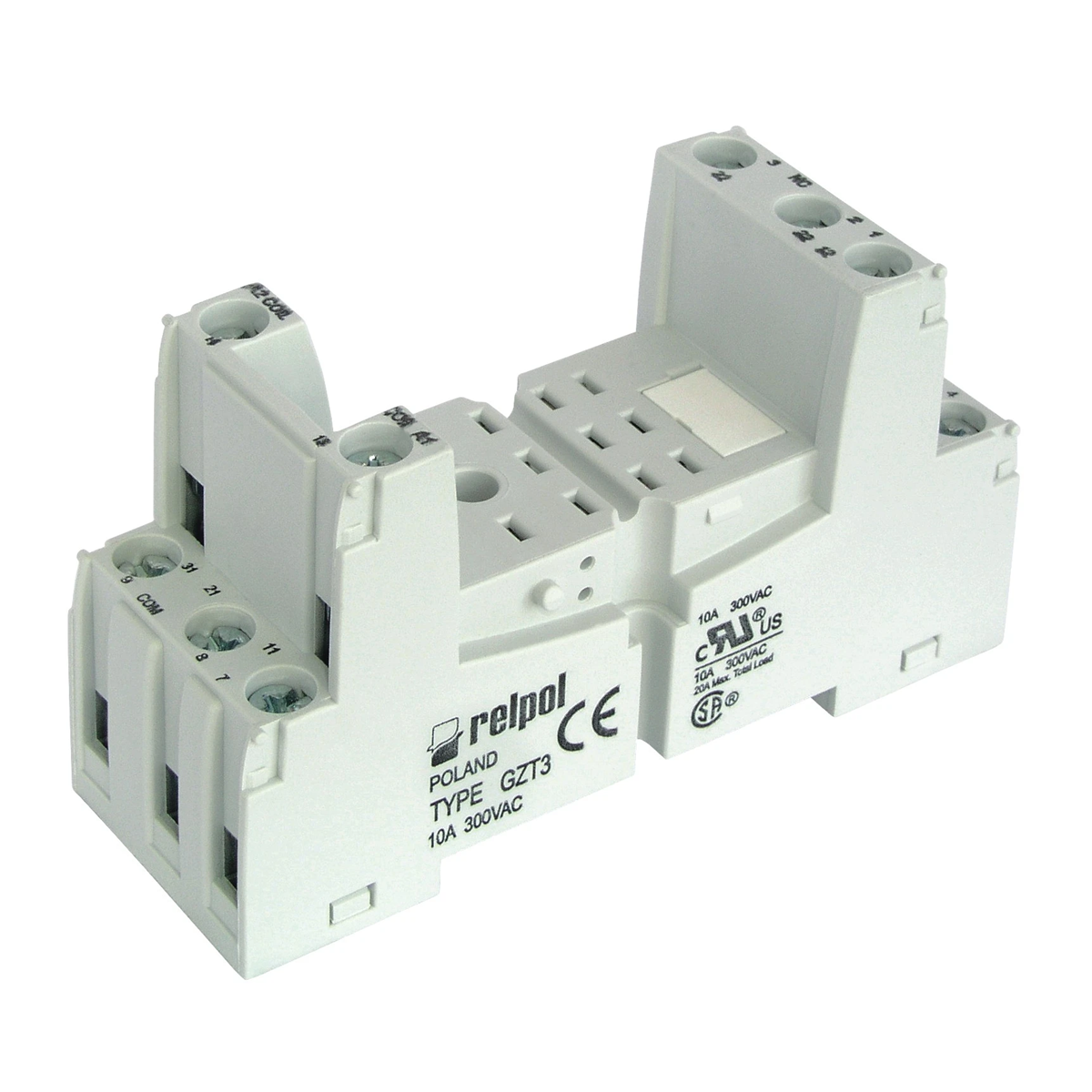

Relay socket R3 GZT3-grey 856049

Plug-in socket, for R3 relay - width 27 mm.

Without circuit separation.

Input / coil - terminals: (+)A1 (13) - (-)A2(14).

Output / contacts - terminals: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6).

Track load capacity: 10 A / 300 V AC.

Mounting on a 35 mm rail or on a mounting plate with two M3 screws.

Dimensions of the set GZT3 + R3 + GZT4-0040: 76, 3 x 27 x 80 mm; set GZT3 + R3 + G4 1052: 76, 3 x 27 x 66, 6 mm. ejection, plastic or spring clamp G4 1052.

M... type signaling / protection modules can be installed in the socket; Set - IP 20.
