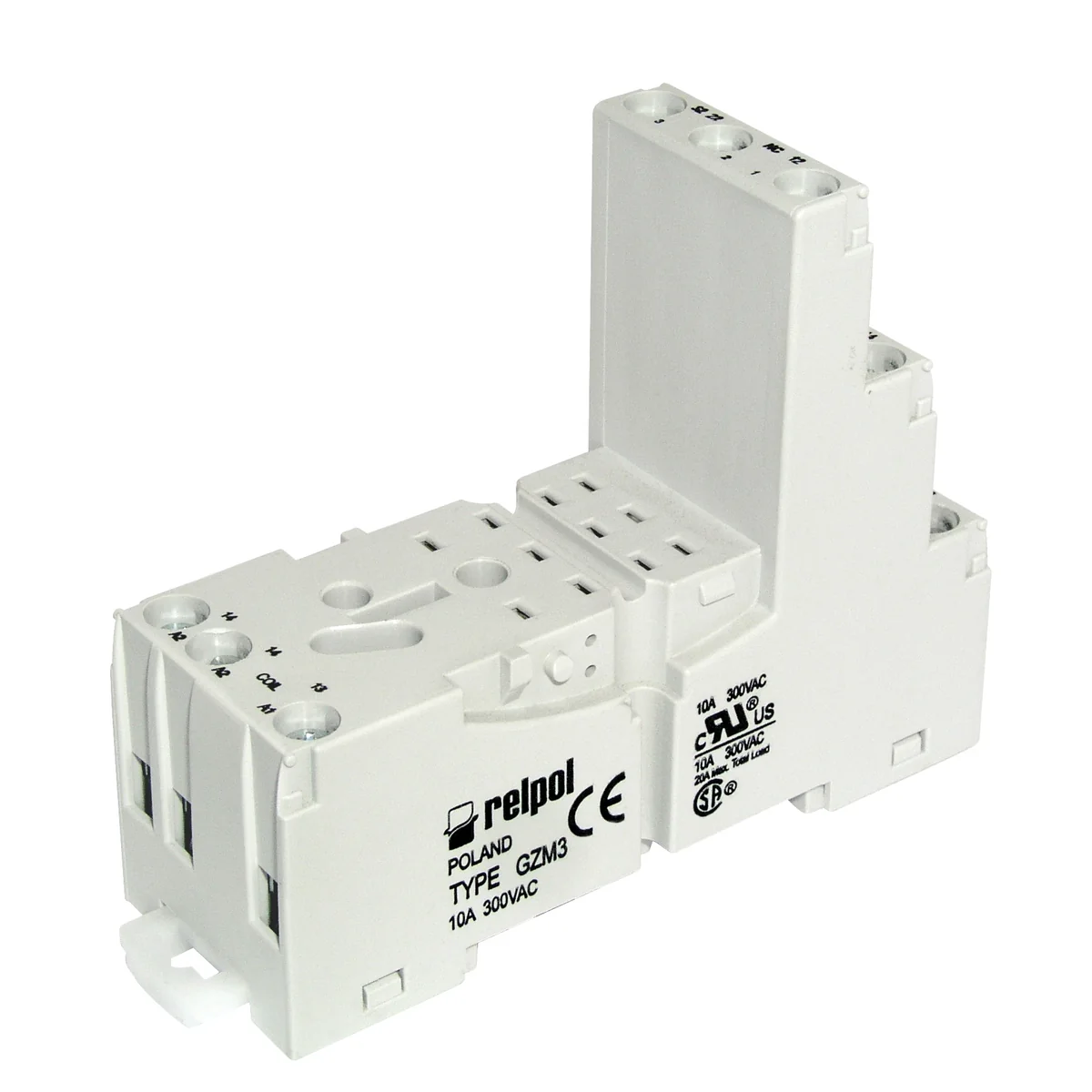

Relay socket R3 3P 10A 300V AC GZM3-gray 857412

Plug-in socket, for R3 relay - width 27 mm.
Separation of circuits - coil terminals on one side and contact terminals on the opposite side of the socket.
Input / coil - terminals: (+)A1(13) - (-)A2(14) - A2 double terminal.
Output / contacts - terminals: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6).
Track load capacity: 10 A / 300 V AC.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
Dimensions of the GZM3 + R3 + GZT4-0040 set: 75 x 27 x 82 mm; set GZM3 + R3 + G4 1052: 75 x 27 x 68.6 mm.
Note: for the socket, a clamp type GZT4-0040, the so-called ejection, plastic or spring clamp G4 1052.
M... type signaling / protection modules can be installed in the socket; Set - IP 20.
