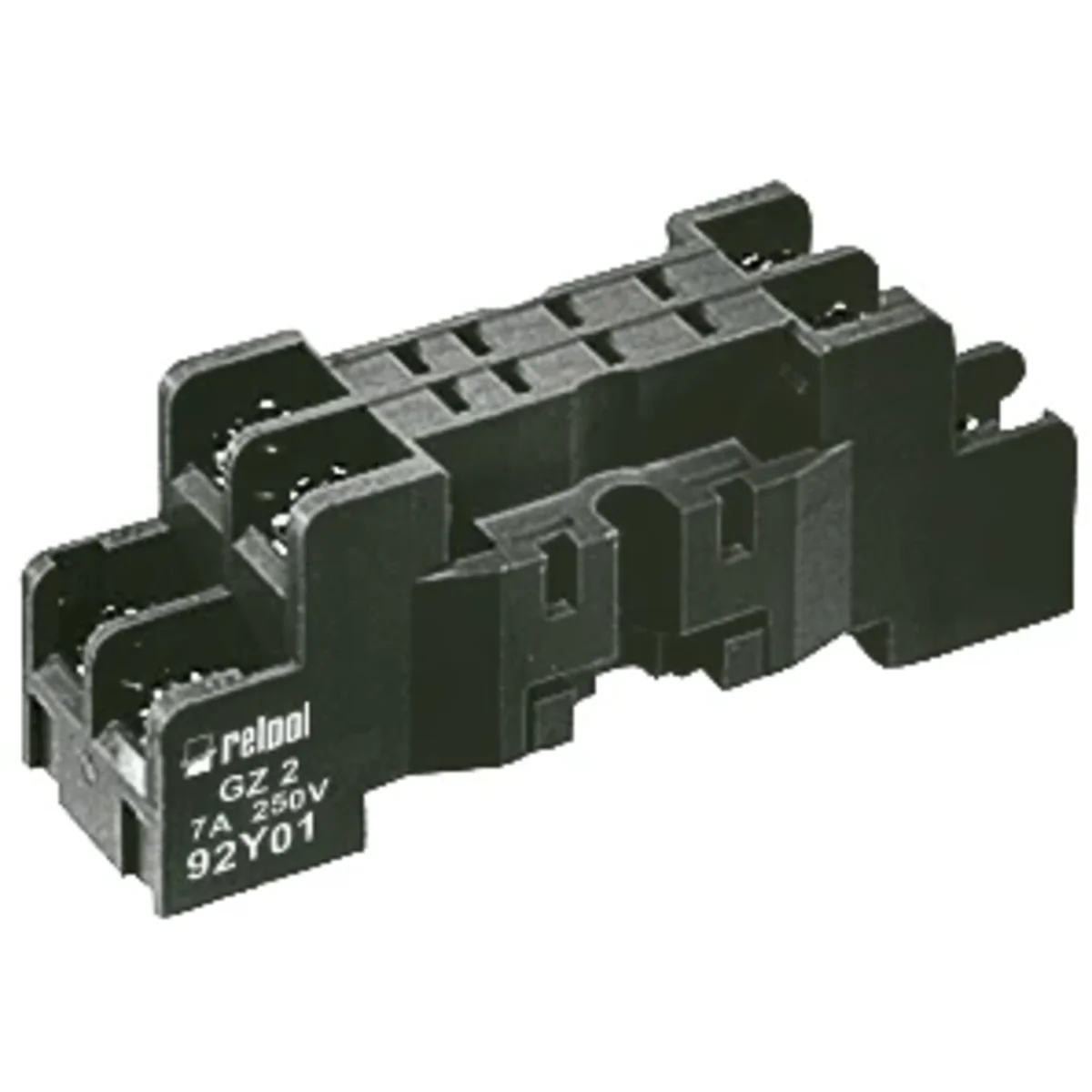

Relay socket R2M GZ2 2000553

Plug-in socket, for R2M relay, 20 mm wide.
Input / coil - terminals: (+)A1(13) - (-)A2(14).
Output / contacts - terminals: 11(9)-12(1)-14(5); 21(12)-22(4)-24(8).
Track load capacity: 7 A / 250 V AC.
Mounting on a 35 mm rail or on a mounting plate with two M4 screws.
Dimensions: 65, 2 x 20 x 25 mm (60 mm - set size: socket + R2M relay + GZ2 1060 clamp).
Note: a GZ2 1060 clamp must be ordered separately for the socket. Two GZ2 1111 holders for attaching the clamp are supplied with the socket. IP 20.
