Relay socket R2 GZT2-gray 856048

local index:
APG036RELP
Catalog No:
856048
Manufacturer: RELPOL
Number of pins: 8
Rated voltage [V]: 300
Current carrying capacity [A]: 6
Price:
4,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

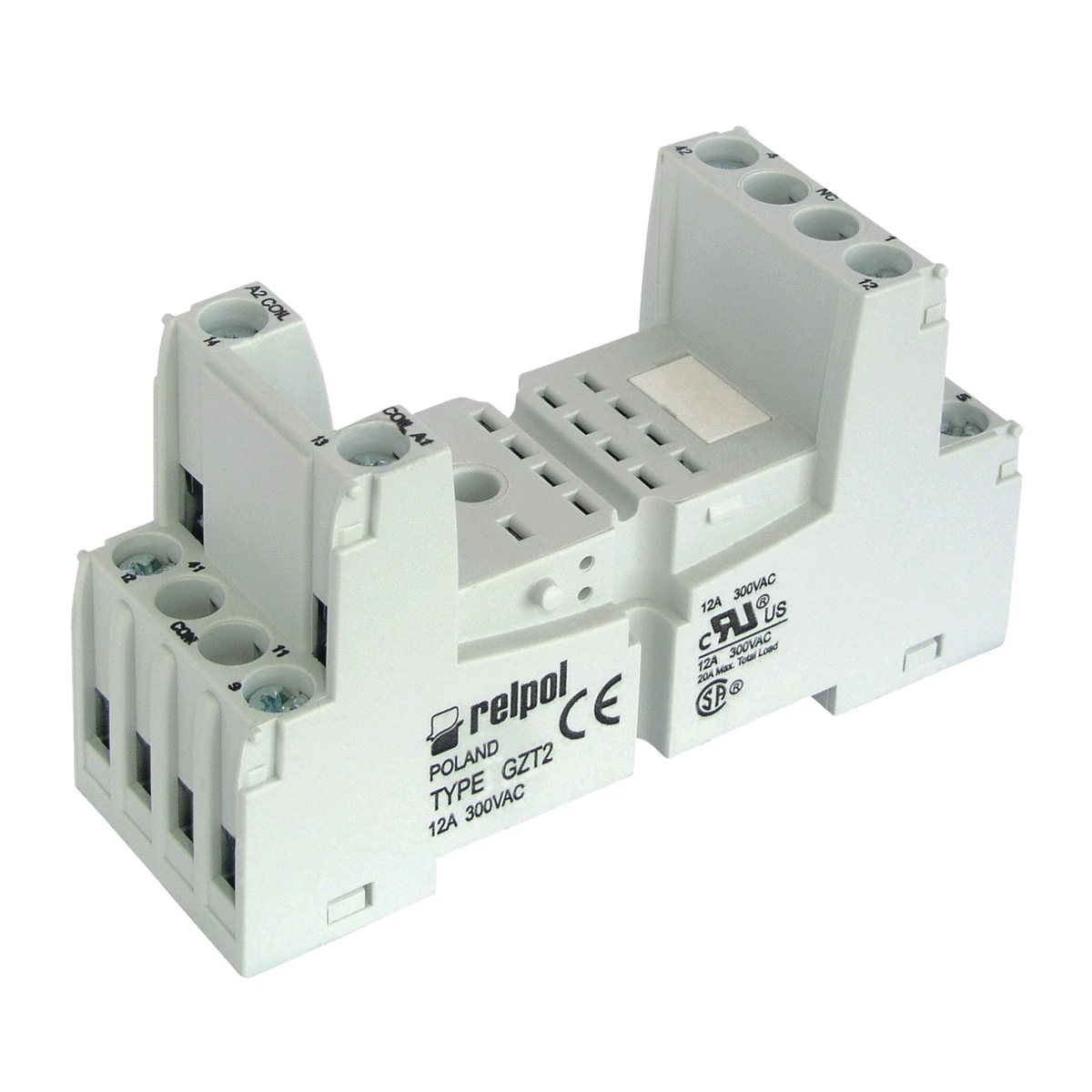

Plug-in socket, for R2 relay - width 27 mm.

Without circuit separation.

Input / coil - terminals: (+)A1 (13) - (-)A2(14).

Output / contacts - terminals: 11(9)-12(1)-14(5); 41(12)-42(4)-44(8).

Track load capacity: 6 A / 300 V AC.

Mounting on a 35 mm rail or on a mounting plate with two M3 screws.

Dimensions of the set GZT2 + R2 + GZT4-0040: 76, 3 x 27 x 80 mm; set GZT2 + R2 + G4 1052: 76, 3 x 27 x 66, 6 mm. ejection, plastic or spring clamp G4 1052.

M... type signaling / protection modules can be installed in the socket; Set - IP 20.

Technical data

  • Number of pins
    8
  • Current carrying capacity [A]
    6
  • PKWIU
    27.12.40.0
  • Rated voltage [V]
    300
  • Width [mm]
    27

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    no
  • Height
    186 mm
  • Depth
    140 mm
  • Material plate thickness door/cover
    3 mm
  • RAL-number
    7035
  • Housing material
    Plastic
  • With mounting plate
    no
  • Degree of protection (IP)
    IP67
  • Impact strength
    IK10
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    no
  • Width
    151 mm
  • Material plate thickness cabinet
    3.5 mm
  • Colour
    Grey
  • Extension possible
    yes
  • Surface protection
    Untreated
  • Suitable for outdoor use
    yes
  • Degree of protection (NEMA)
    12
  • Circuit integrity
    None
