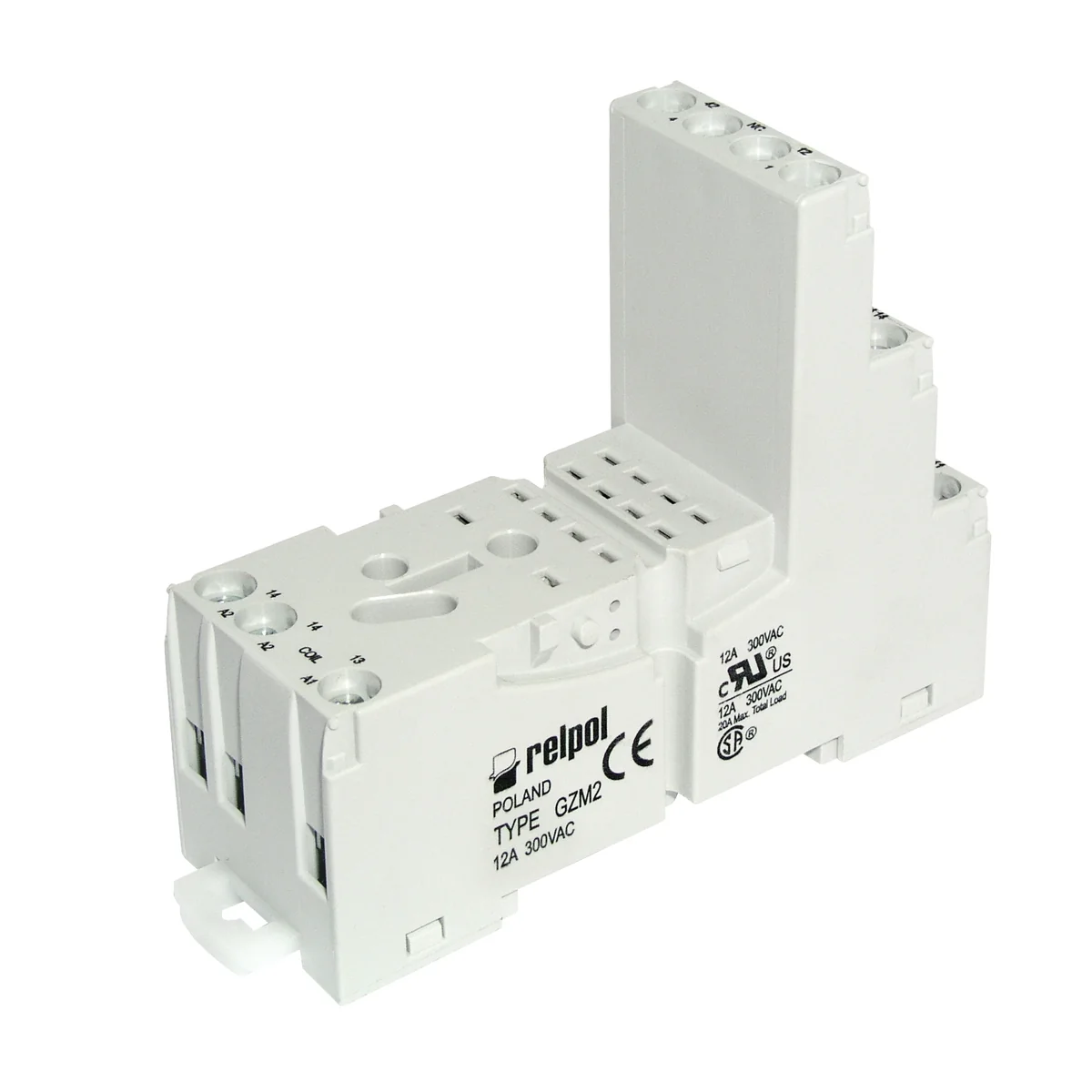

Relay socket R2 GZM2 - grey 857440

local index:
APG047RELP
Catalog No:
857440
Manufacturer: RELPOL
Number of pins: 8
Width [mm]: 27
Pieces in the package: 10
Price:
480,27 €
gross / pkg.
(including VAT 23%)
48,03 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Plug socket, for relay R2 - width 27 mm.
Separation of circuits - coil terminals on one side and contact terminals on the opposite side of the socket.
Input / coil - terminals: (+)A1(13) - (-)A2(14) - A2 double terminal.
Output / contacts - terminals: 11(9)-12(1)-14(5); 41(12)-42(4)-44(8).
Track load capacity: 12 A / 300 V AC.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
Dimensions of the GZM2 + R2 + GZT4-0040 set: 75 x 27 x 82 mm; set GZM2 + R2 + G4 1052: 75 x 27 x 68.6 mm.
Note: for the socket, a clamp type GZT4-0040, the so-called ejector, plastic or spring clamp G4 1052.
M... type signaling / protection modules can be installed in the socket; Set - IP 20.

Technical data

  • Number of pins
    8
  • Pieces in the package
    10
  • Width [mm]
    27
