Relay socket R15 4P GZ14U 592027

local index:
APG035RELP
Catalog No:
592027
Manufacturer: RELPOL
Depth [mm]: 31
Number of pins: 14
Rated voltage [V]: 250
Price:
11,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

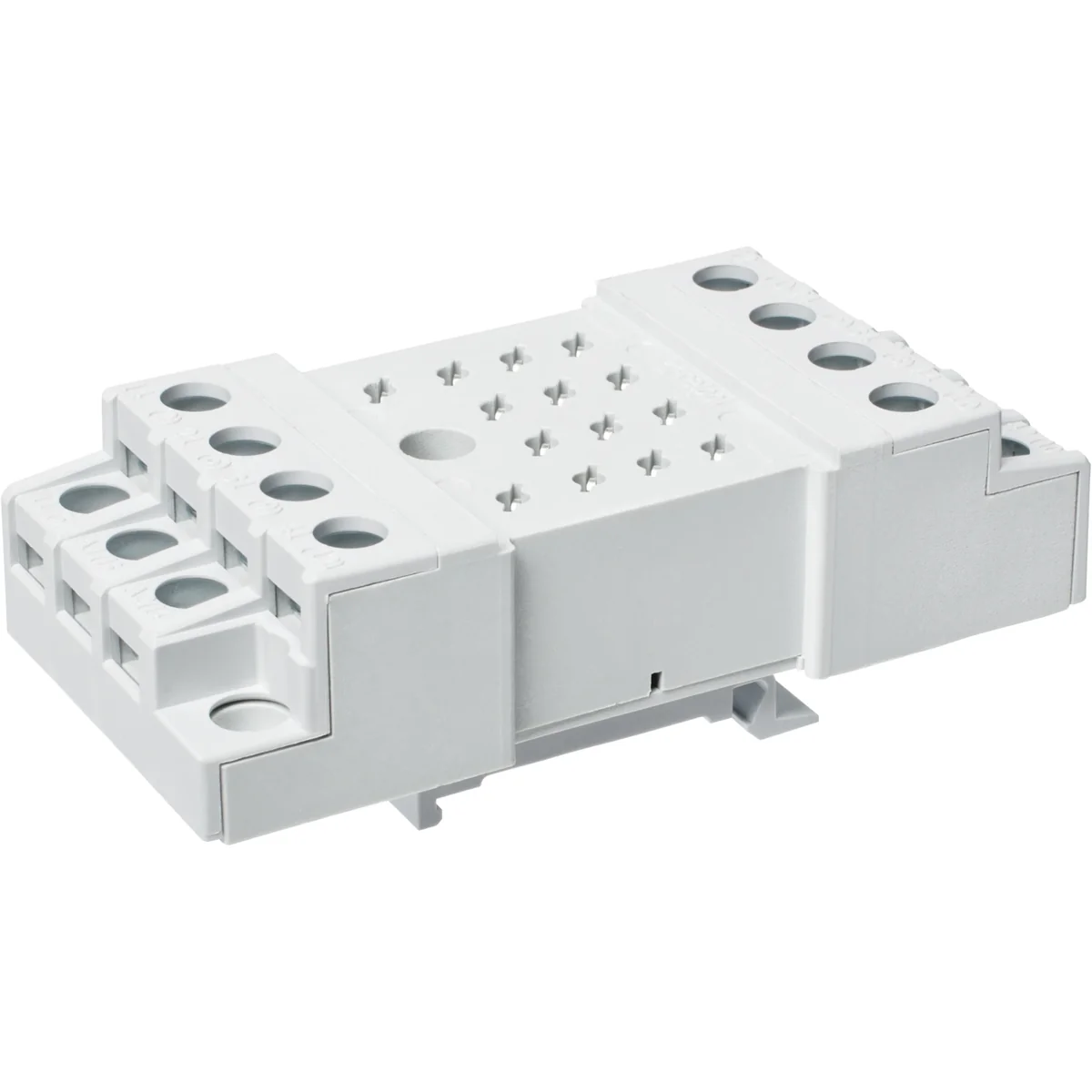

Plug-in socket, for R15 4P relay (socket version) - gray color, width 46 mm.

Without circuit separation.

Input / coil - terminals: (+)A1(13) - (-)A2(14).

Output / contacts - terminals: 11(3)-12(1)-14(2); 21(6)-22(4)-24(5); 31(9)-32(7)-34(8); 41(12)-42(10)-44(11).

Track load: 10 A / 250 V AC.

Dimensions: 81 x 46 x 31 mm.

Mounting on a 35 mm rail.

Dimensions of the set: GZ14U socket + R15 4P relay + GZ14 0737 clamp: 81 x 46 x 89, 5 mm.
< br/>Note: a spring clamp type GZ14 0737 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Depth [mm]
    31
  • Rated voltage [V]
    250
  • Width [mm]
    46
  • Number of pins
    14
  • Current carrying capacity [A]
    10
  • Height [mm]
    81
