Relay socket R15 4P 10A 250V GZ14 592022

local index:
APG046RELP
Catalog No:
592022
Manufacturer: RELPOL
Depth [mm]: 22, 5
Number of pins: 14
Width [mm]: 46
Price:
95,85 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

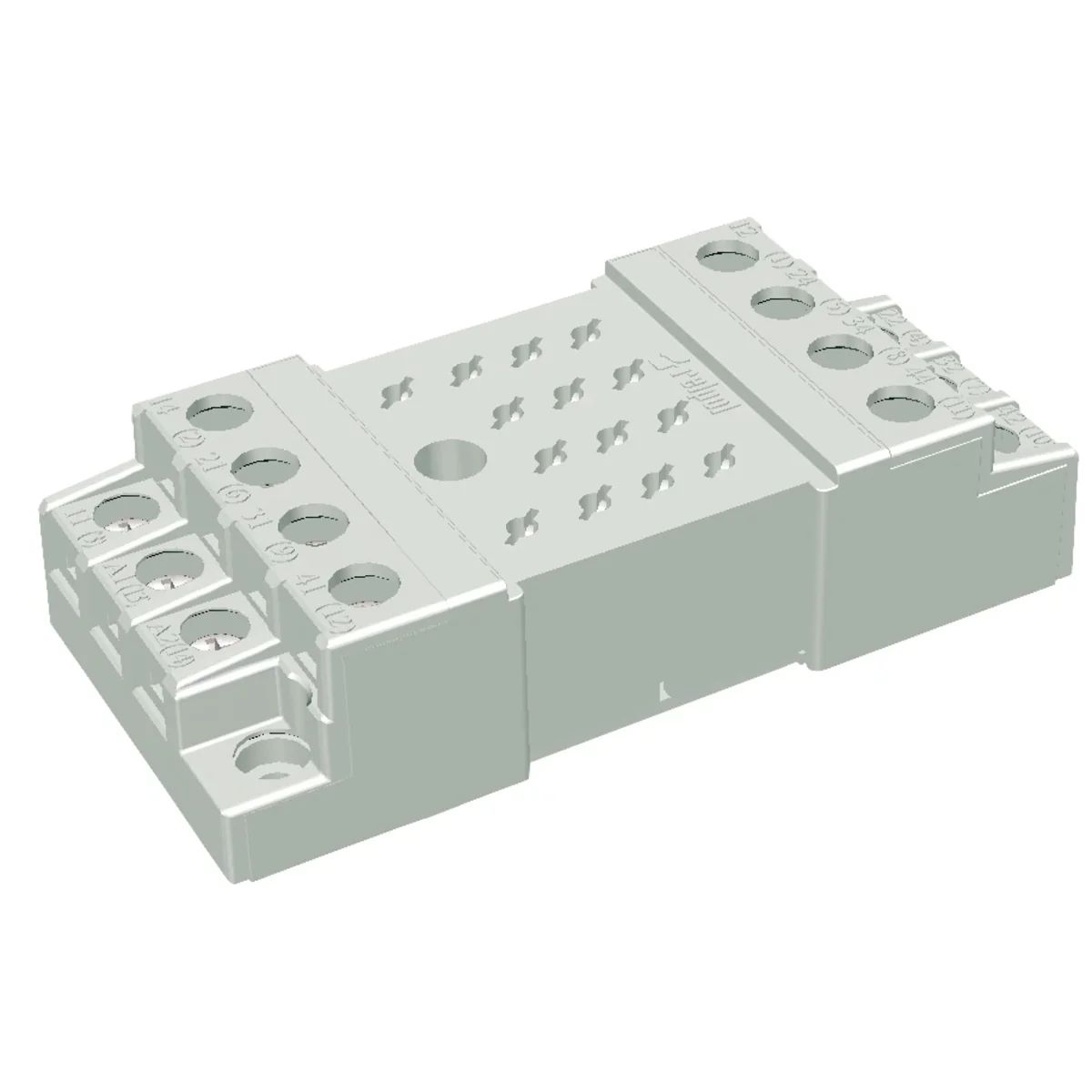

Plug-in socket, for R15 4P relay (socket version) - gray color, width 46 mm.

Without circuit separation.

Input / coil - terminals: (+)A1(13) - (-)A2(14).

Output / contacts - terminals: 11(3)-12(1)-14(2); 21(6)-22(4)-24(5); 31(9)-32(7)-34(8); 41(12)-42(10)-44(11).

Track load: 10 A / 250 V AC.

Dimensions: 81 x 46 x 22, 5 mm.

Mounting on a mounting plate with two M3 screws.

Dimensions of the set: GZ14 socket + R15 4P relay + GZ14 clamp 0737: 81 x 46 x 81 mm.

Note: a spring clamp type GZ14 0737 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Depth [mm]
    22, 5
  • Width [mm]
    46
  • Height [mm]
    92
  • Number of pins
    14
  • Pieces in the package
    10
