Relay socket R15 3P PZ11 592001

local index:
APG045RELP
Catalog No:
592001
Manufacturer: RELPOL
Number of pins: 11
Width [mm]: 38
Pieces in the package: 10
Price:
85,90 €
gross / pkg.
(including VAT 23%)
8,59 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

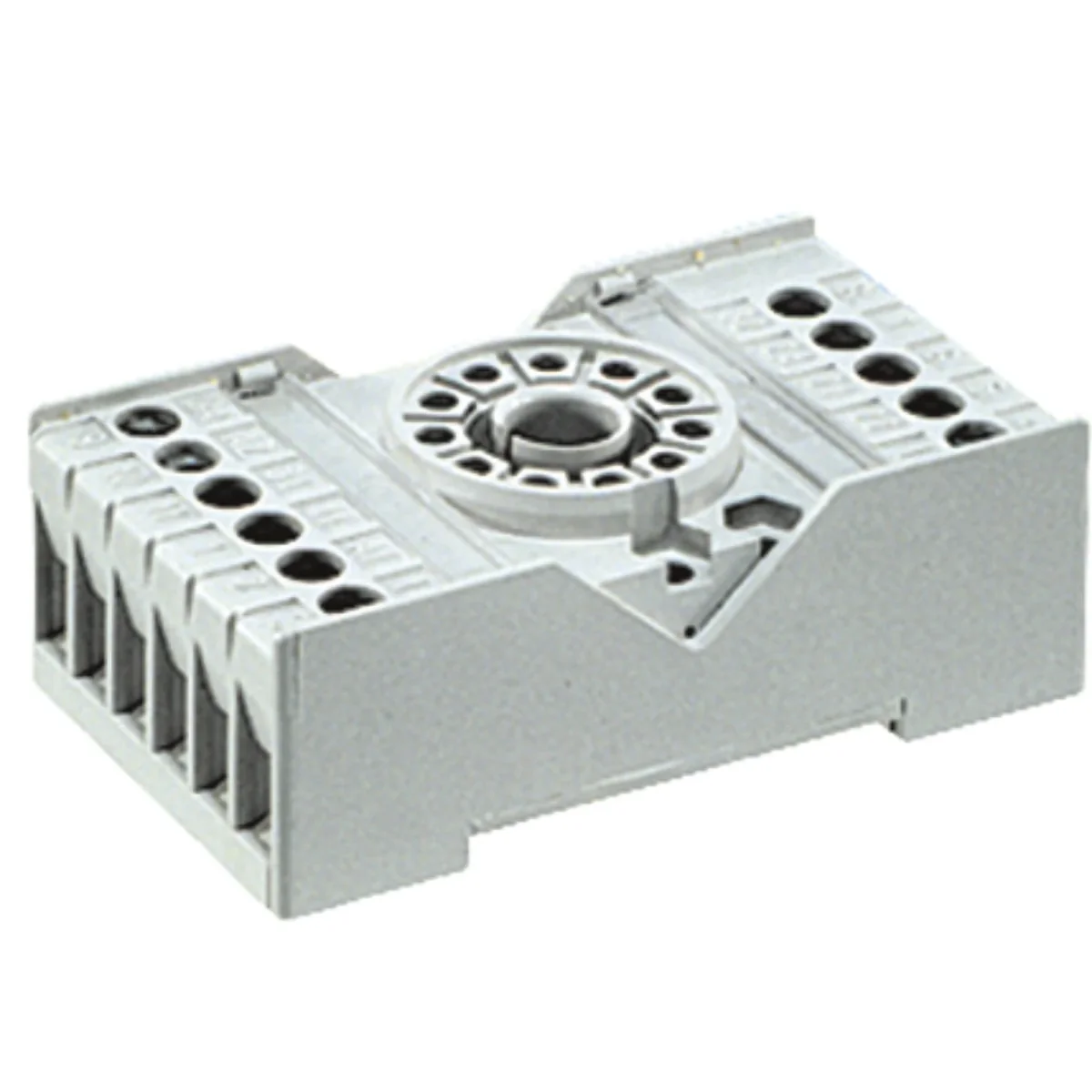

Plug-in socket, for R15 3P relay (socket version) - grey, width 38 mm.
Without circuit separation.
Input / coil - terminals: (+)A1(2) - (-)A2(10).
Output / contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9).
Track load capacity: 10 A / 250 V AC.
Dimensions: 68.2 x 38 x 24.2 mm.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
Dimensions of the set: PZ11 socket + R15 3P relay + PZ11 0031 clamp: 68, 2 x 38 x 82, 6 mm.
Note: a spring clamp type PZ11 0031 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Number of pins
    11
  • Pieces in the package
    10
  • Width [mm]
    38
  • Height [mm]
    68.2
