Relay socket R15 3P GZU11 592035

local index:
APG034RELP
Catalog No:
592035
Manufacturer: RELPOL
Depth [mm]: 25.7
Number of pins: 11
Rated voltage [V]: 250
Price:
7,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 40 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

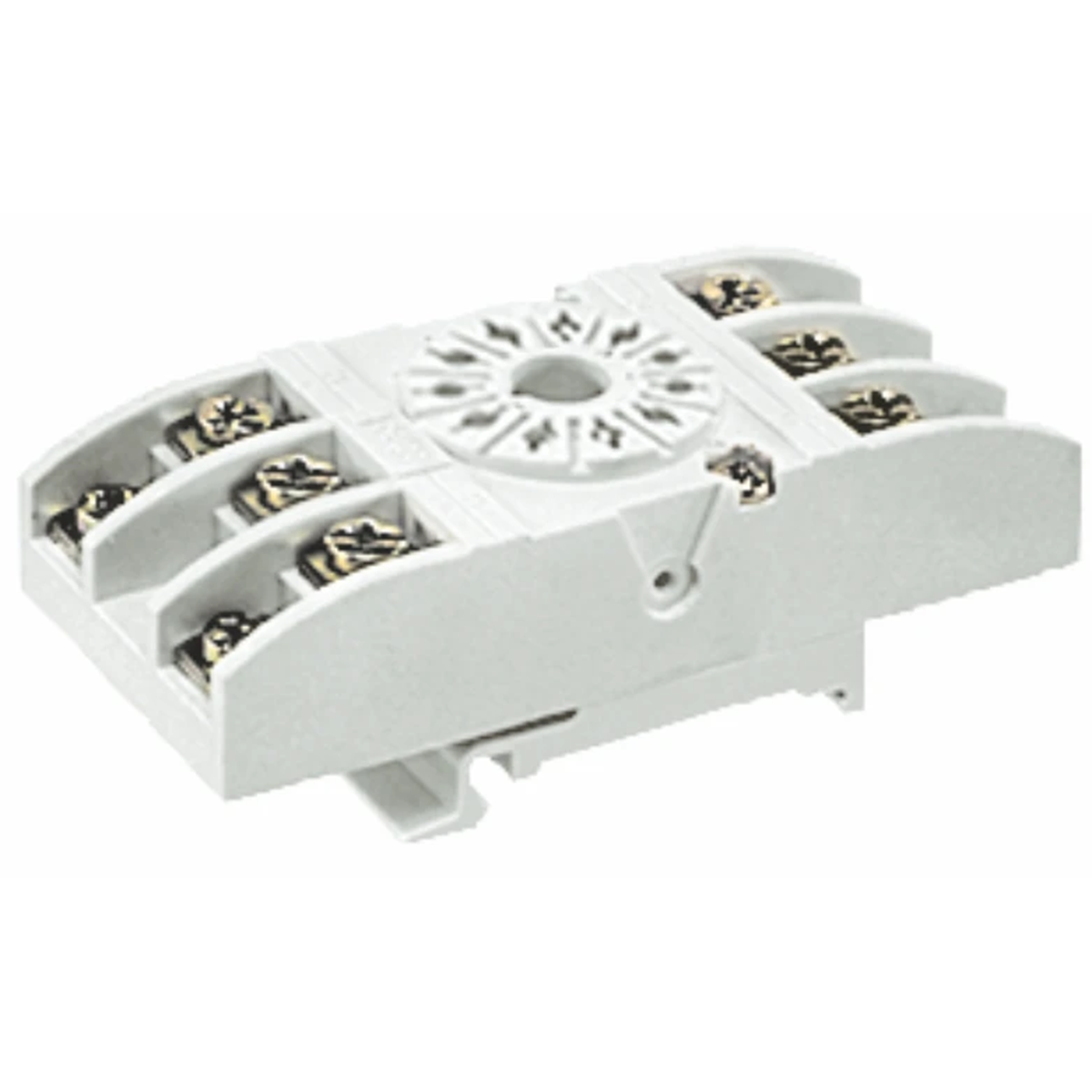

Plug-in socket, for R15 3P relay (socket version) - gray color, width 35, 5 mm.

Without circuit separation.

Input / coil - terminals: (+)A1(2) - (-)A2(10).

Output / contacts - terminals: 11(1)-12(4)-14(3) ); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9).

Track load: 10 A / 250 V AC.

Dimensions: 82 x 35, 5 x 25

Mounting on a 35 mm rail.

Dimensions of the set: GZU11 socket + R15 3P relay + GZU 1052 clamp: 82 x 35, 5 x 84, 1 mm .

Note: a spring clamp type GZU 1052 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Depth [mm]
    25.7
  • Rated voltage [V]
    250
  • Width [mm]
    thirty
  • Number of pins
    11
  • Current carrying capacity [A]
    10
  • Height [mm]
    82
