Relay socket R15 3P GZ11 592017

local index:
APG033RELP
Catalog No:
592017
Manufacturer: RELPOL
Depth [mm]: 22.5
Number of pins: 11
Rated voltage [V]: 250
Price:
8,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

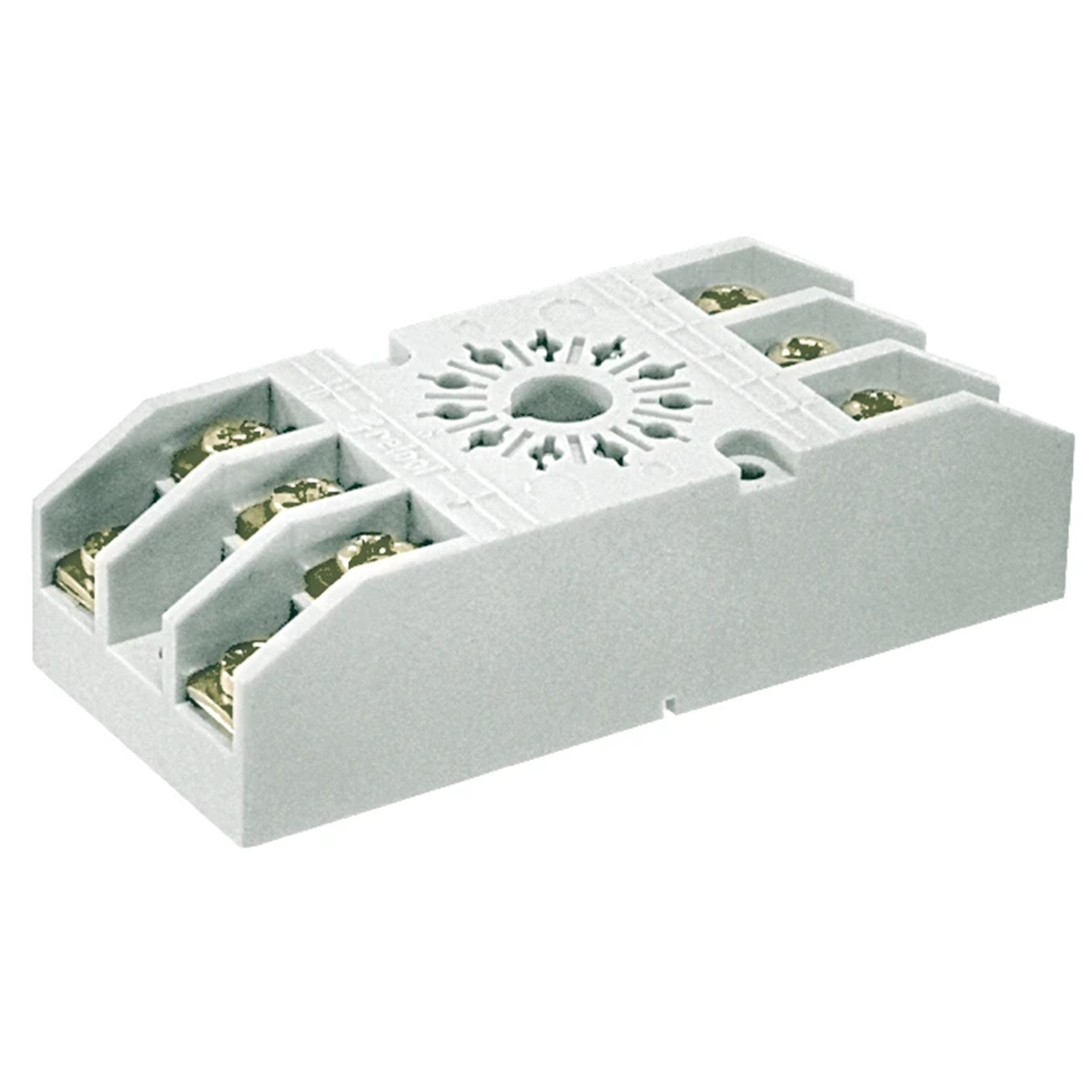

Plug-in socket, for R15 2P relay (socket version) - gray color, width 38 mm.

Without circuit separation.

Input / coil - terminals: (+)A1(2) - (-)A2(7).

Output / contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6).

Track load: 10 A / 250 V AC.

Dimensions: 68, 2 x 38 x 24 , 2 mm.

Mounting on a 35 mm rail or on a mounting plate with two M3 screws.

Dimensions of the set: socket PZ8 + relay R15 2P + clamp PZ11 0031: 68, 2 x 38 x 82, 6 mm.

Note: a spring clamp type PZ11 0031 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Depth [mm]
    22.5
  • Rated voltage [V]
    250
  • Width [mm]
    35.5
  • Number of pins
    11
  • Current carrying capacity [A]
    10
  • Height [mm]
    82.8
