Relay socket R15 2P PZ8 592005

local index:
APG044RELP
Catalog No:
592005
Manufacturer: RELPOL
Number of pins: 8
Width [mm]: 38
Height [mm]: 68.2
Price:
6,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

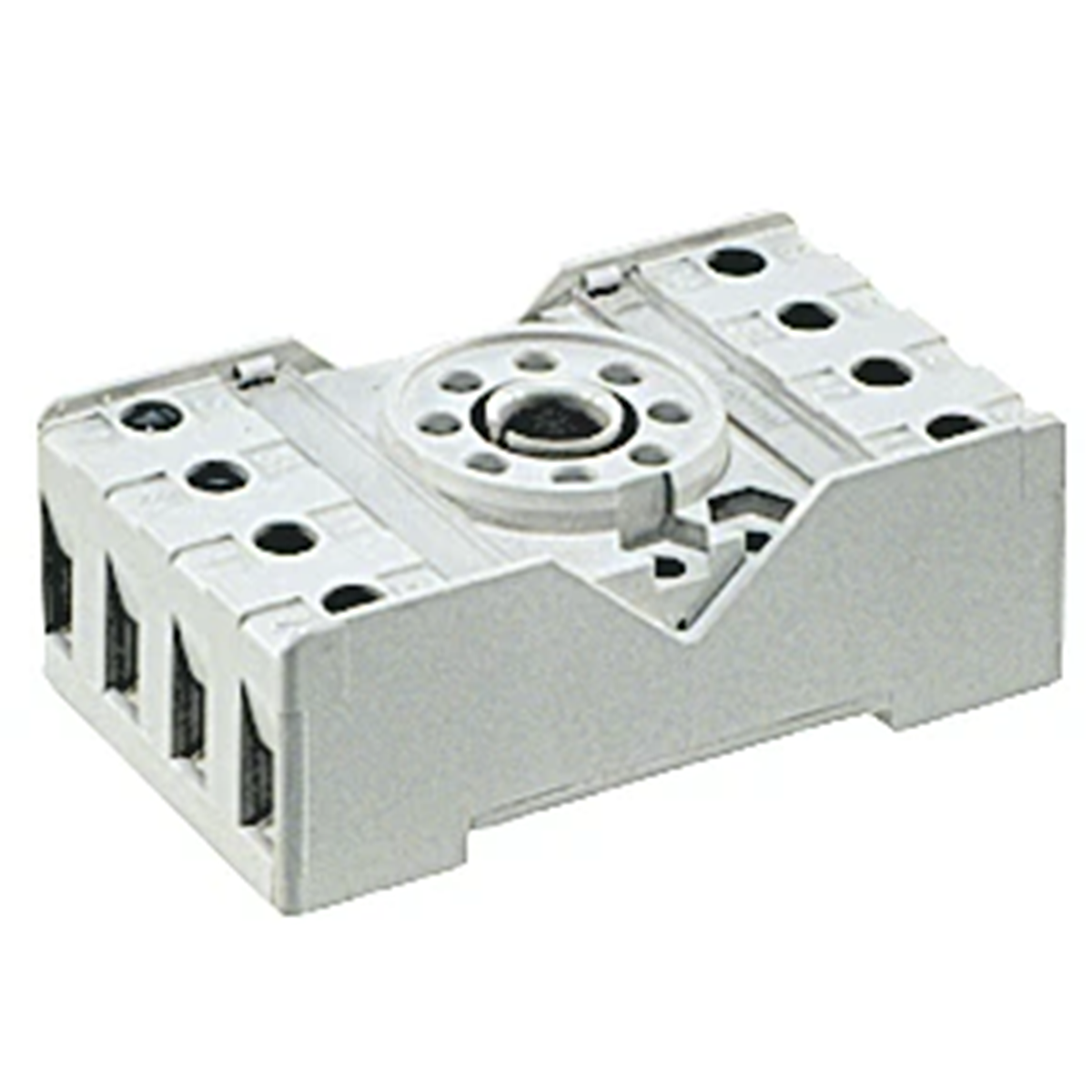

Plug-in socket, for R15 2P relay (socket version) - grey, width 38 mm.
Without circuit separation.
Input / coil - terminals: (+)A1(2) - (-)A2(7).
Output / contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6).
Track load capacity: 10 A / 250 V AC.
Dimensions: 68.2 x 38 x 24.2 mm.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
Dimensions of the set: PZ8 socket + R15 2P relay + PZ11 0031 clamp: 68, 2 x 38 x 82, 6 mm.
Note: a spring clamp type PZ11 0031 must be ordered separately for the socket (increases the height of the socket + relay set by about 4 mm). Set - IP 20.

Technical data

  • Number of pins
    8
  • Height [mm]
    68.2
  • Width [mm]
    38
