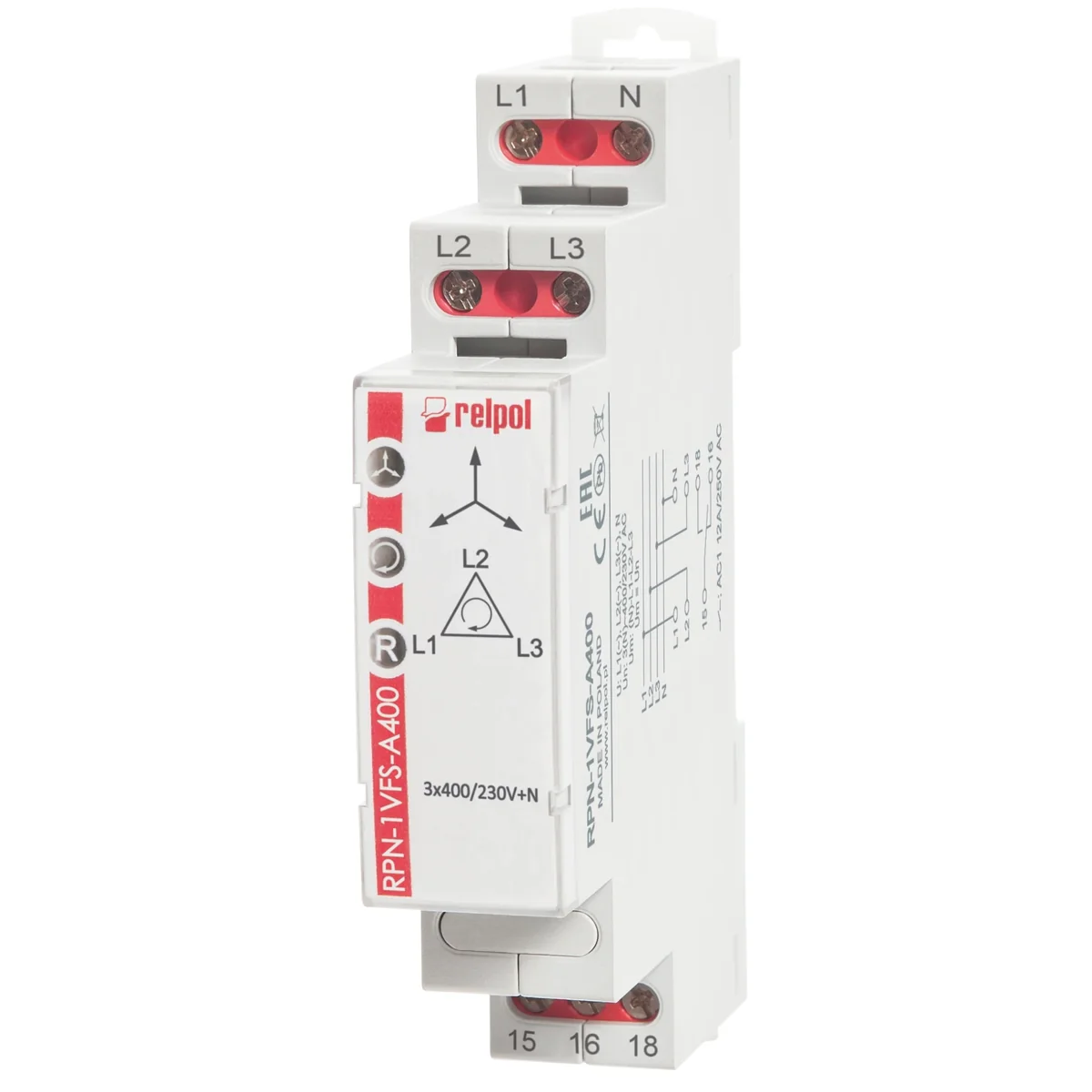

Relay for AC voltage supervision in a 3-phase network RPN-1VFS-A400 864372

local index:
API078RELP
Catalog No:
864372
EAN code:
5900005262760
Price:
84,14 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relay for monitoring AC voltage in a 3-phase network 3 (N) - 400/230 V. Supply voltage = supervised voltage. Overload capacity ≥1.2Un. Output - 1 changeover contact. Rated voltage 3(N) ̴400/230 V AC 50/60 Hz. Relay performing the following functions: LOST D - phase loss supervision, ASYM D - asymmetry supervision, SEQ D - phase sequence supervision. Unbalance ranges - fixed set 55 V. Off delay - fixed set 4 s.
