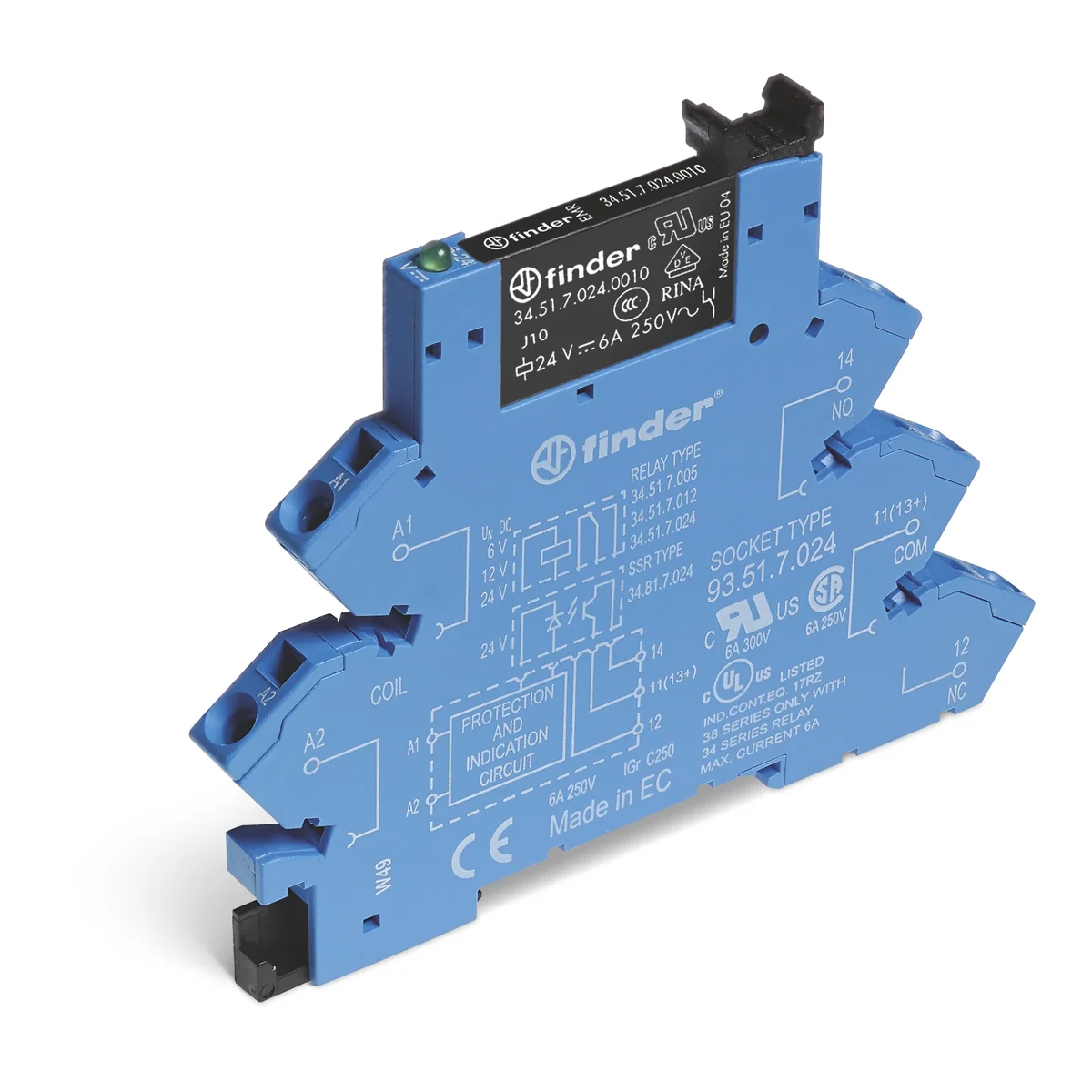

Relay coupling module 1CO 6A 24V DC 386170240050
local index:
APC011FIND
Catalog number:
386170240050
EAN code:
8012823231907
Price:
77,50 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
Number of contacts1CO
-
Rated current [A]6
-
Rated voltage [V]24
Other technical data
-
Type of electric connectionSpring clamp connection
-
With detachable clampsNo
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
With forced-guided contactsNo
-
Material contactOther copper alloys
-
Nominal current6 A
-
Width6.2 mm
-
Depth72.5 mm
-
Complete with socketYes
-
With LED indicationYes
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
Type of switch contactSingle contact
-
Material of contact insertThermoplastic
-
Material of contact surfaceUntreated
-
Degree of protection (IP)IP20
-
Height93.6 mm
Manufacturer details
-
ManufacturerFinder S.p.A. con unico socio
-
Address10040 Almese Via Drubiaglio 14 Włochy
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 10 pcs. |
| Weight (kg) | 0,331 |
| Width (m) | 0,096 |
| Length (m) | 0,070 |
| Depth (m) | 0,083 |
