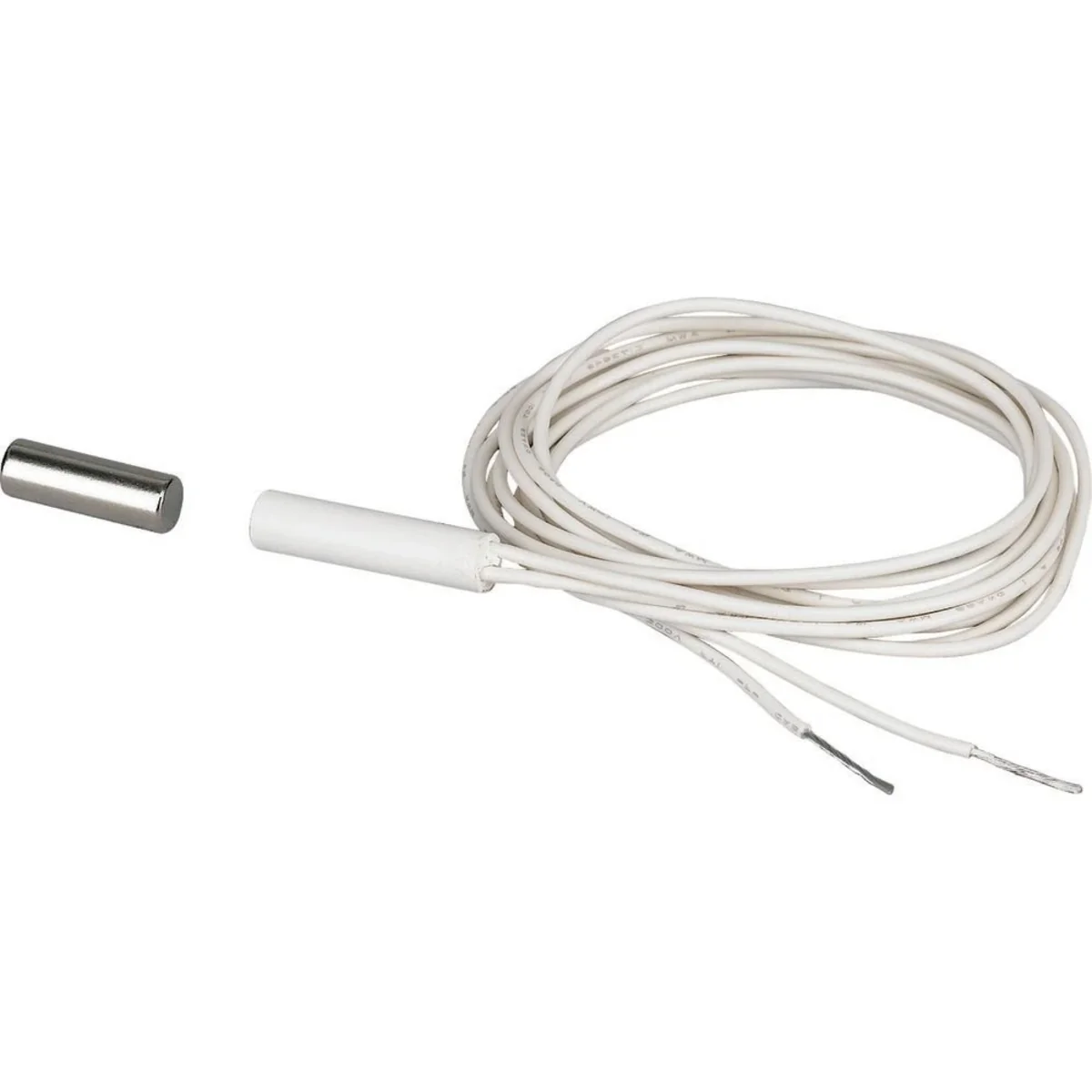

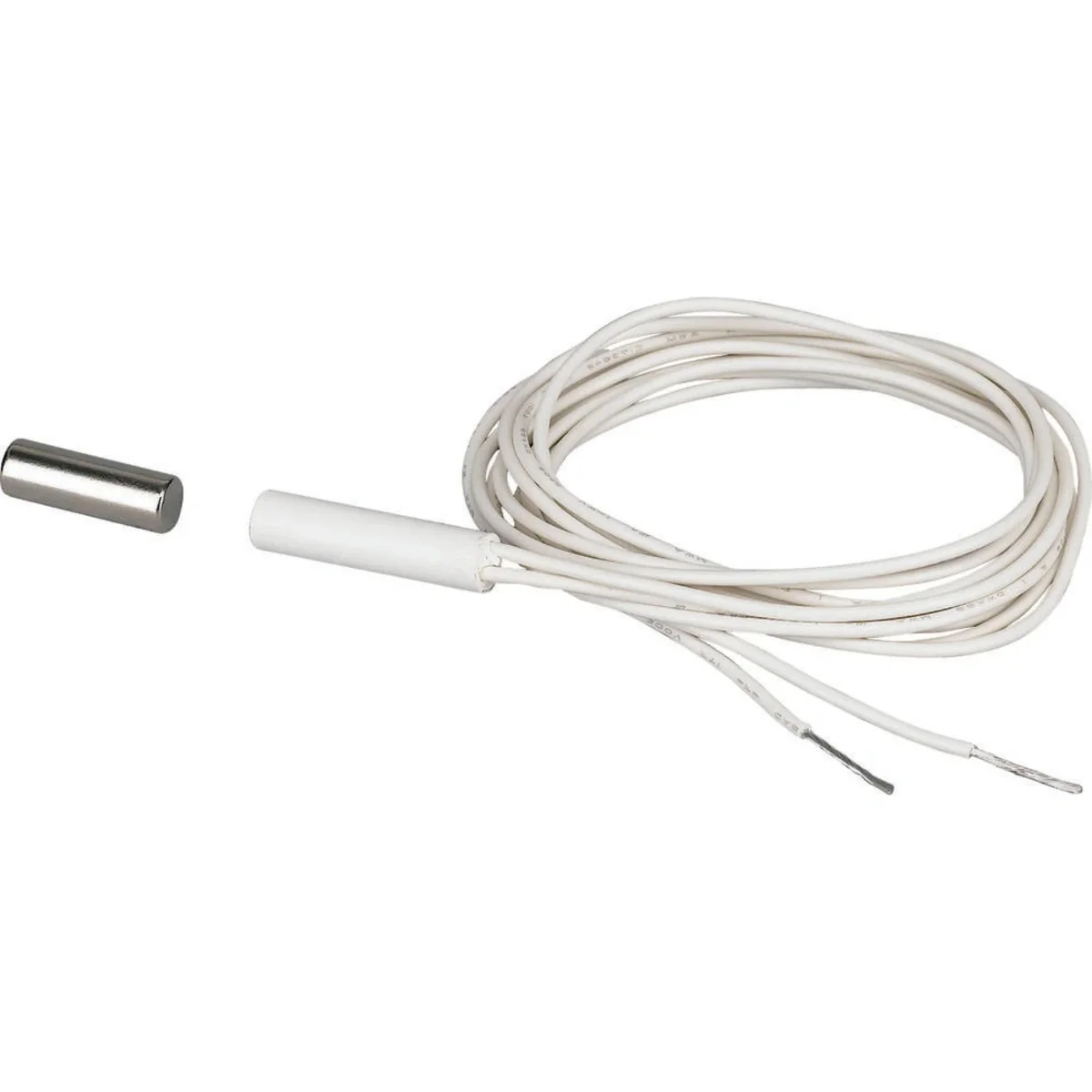

Reed switch (mounted inside the window) 104923

local index:
API257MOEL
Catalog No:
104923
EAN code:
4015081047307
Manufacturer: EATON
Color: White
Type: sensor
Price:
16,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The reed switch is used to monitor window and door openings. The window contact is mounted on the window or door frame, and the magnet on the movable part of the window (window or door leaf). The signal is only evaluated by the binary input 2x of the signal contact (265627) in mode 2.

Use with binary input 2x230VAC is NOT ALLOWED!!! Pre-prepared holes are used for fixing.

Technical data

  • Color
    White
  • PKWIU
    31.20.24-50.21
  • Type
    sensor

Other technical data

  • Mounting method
    Surface mounting
  • Wireless
    No
  • Wire length connecting cable
    0.45 m
  • Diameter sensor
    6.8 mm
  • Width sensor
    6.8 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • VdS class
    None
  • Contacts
    1 make contact (NO)
  • With connection cable
    Yes
  • Colour
    White
  • Sensor length
    27 mm
  • Height of sensor
    6.8 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,048 2,880
Volume (m3) 0,000 0,016
Width (m) 0,085 0,180
Length (m) 0,035 0,385
Depth (m) 0,075 0,230
