RCBO RCBO with overcurrent element 4P 6kA C 10A/30mA Type A ADM460C

Name: RCBO RCBO with overcurrent element 4P 6kA C 10A/30mA Type A
Brand: HAGER
SKU: ALI220HAGE
Price: 1117.47 PLN

Místní index:

ALI220HAGE

Katalogové číslo.:

ADM460C

EAN kód:

3250611020288

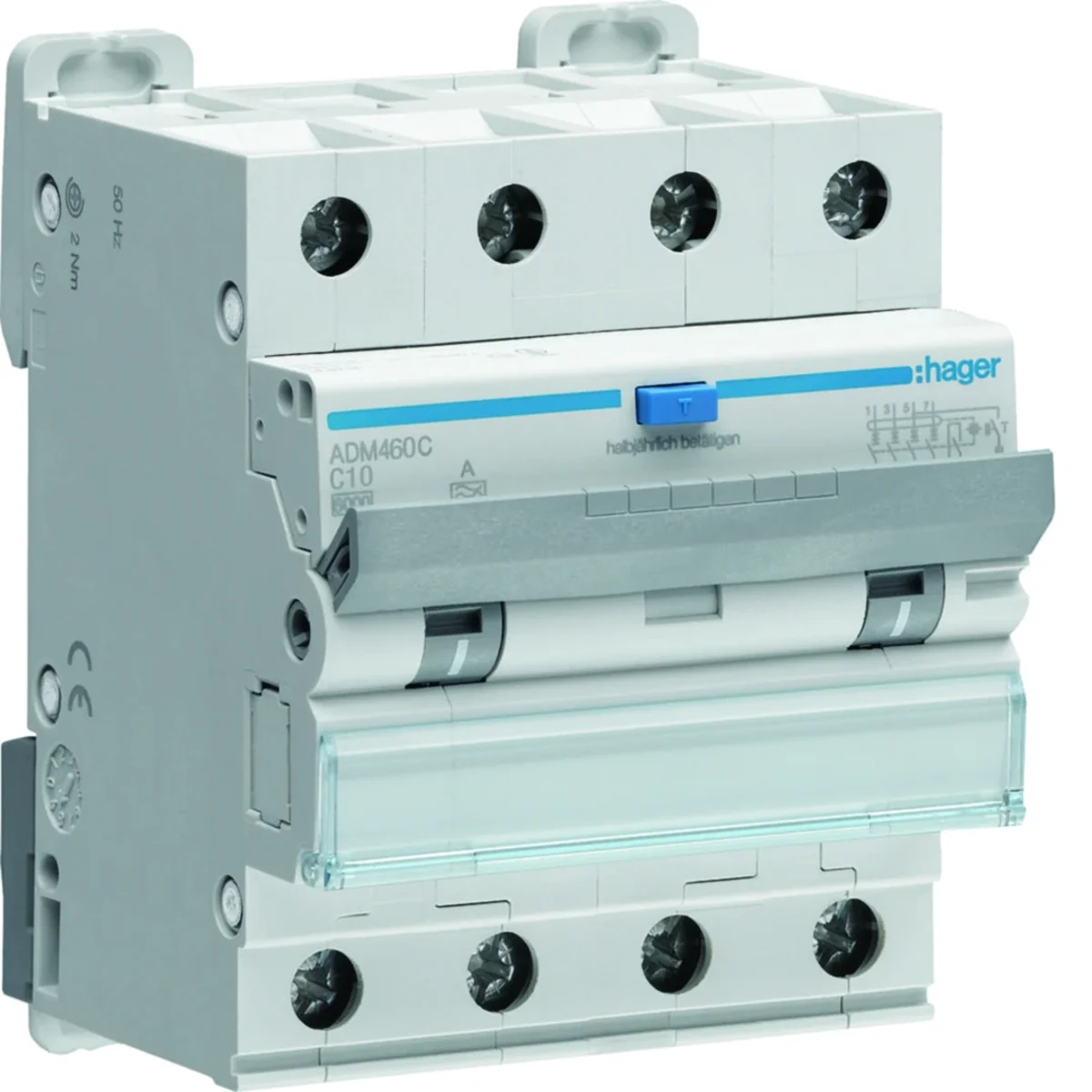

RCBO RCBO with overcurrent element 4P 6kA C 10A/30mA Type A

Kliknutím na obrázek jej zvětšíte

Výrobce: HAGER

Characteristic: c

Rated frequency [Hz]: 50

Depth [mm]: 70

Zobrazit celý popis

Cena:

1117,47 zł

gross / kusů.

(včetně DPH 23%)

Dodání do 3 hodin

do 2 týdnů (pracovní dny)

Vyzvednutí za 1h

Množství kusů.

(vícenásobné:

1

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

RCBO RCBO with overcurrent element 4P 6kA C 10A/30mA Type A

Technické údaje

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

2
Differential current [mA]

thirty
Level of security

IP20
Power loss per pole [W]

2.4
Height [mm]

84
Mechanical durability (number of cycles)

4000
Rated short-circuit breaking capacity [kA]

6
Rated impulse voltage [kV]

4
Number of modules

4
Input terminal capacity (cord) [mm²]

1/16
Output terminal capacity (cord) [mm²]

1/16
Rated current at 20°C [A]

10.5
Rated current at 40°C [A]

9.5
Rated current at 50°C [A]

9
Rated current at 60°C [A]

8.4
storage temperature [°C]

from -55 to 70
RCD type

AND
Rated current correction factor for 3 devices installed side by side

0.8
PKWIU

27.12.22.0

Rated frequency [Hz]

50
Number of poles

4
Rated insulation voltage [V]

500
Rated current [A]

10
power loss [W]

9.7
Width [mm]

71
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Rated switching voltage [V]

230/400
Rated short-circuit breaking capacity Icn [kA]

6
Max/min value of the AC current of the protection activation

5/10 In
Input terminal capacitance (wire) [mm²]

1/25
Output terminal capacitance (wire) [mm²]

1/25
Rated current at 30°C [A]

10
Rated current at 45°C [A]

9.2
Rated current at 55°C [A]

8.7
Operating short-circuit breaking current Ics [kA]

6
Supply voltage type

AC
Rated current correction factor for 2 devices installed side by side

0.8
Number of protected poles

4

Další technické údaje

Number of poles (total)

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

4
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of protected poles

4
Rated insulation voltage Ui

500 V
Rated current

10 A
Leakage current type

A
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

3 kA
Frequency

50 Hz
Concurrently switching neutral conductor

No
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

70 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Podrobnosti o výrobci

Výrobce

Hager Electro S.A.S.
Adresa

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Velkoobjemová balení

Typ obalu	Karton	Pakiet	Paleta
Množství	1 kusů.	33 kusů.	792 kusů.
Hmotnost (kg)	0,420	13,990	335,800
Šířka (m)	0,080	0,310	0,800
Délka (m)	0,070	0,230	1,050
Hloubka (m)	0,100	0,360	1,200
