PUSH-IN interface relay PIR4-024DC-M41G-PS-2014 24V DC 4P AgNi 7A / 250V AC 864842

local index:
APE368RELP
Catalog No:
864842
EAN code:
5900005272592
Manufacturer: RELPOL
Depth [mm]: 75.8
Color: Gray
Installation: On the TH-35 rail
Price:
22,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PUSH-IN interface relay: 4P - four changeover contacts, supply voltage Un - 24V DC, contact material AgNi.

  • AC1 - 6A / 250V AC; DC1 - 6A / 24VDC.
  • Dimensions: 97 x 31 x 75.8mm.
  • Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
  • Adjusted to work with comb connectors type ZGZP.

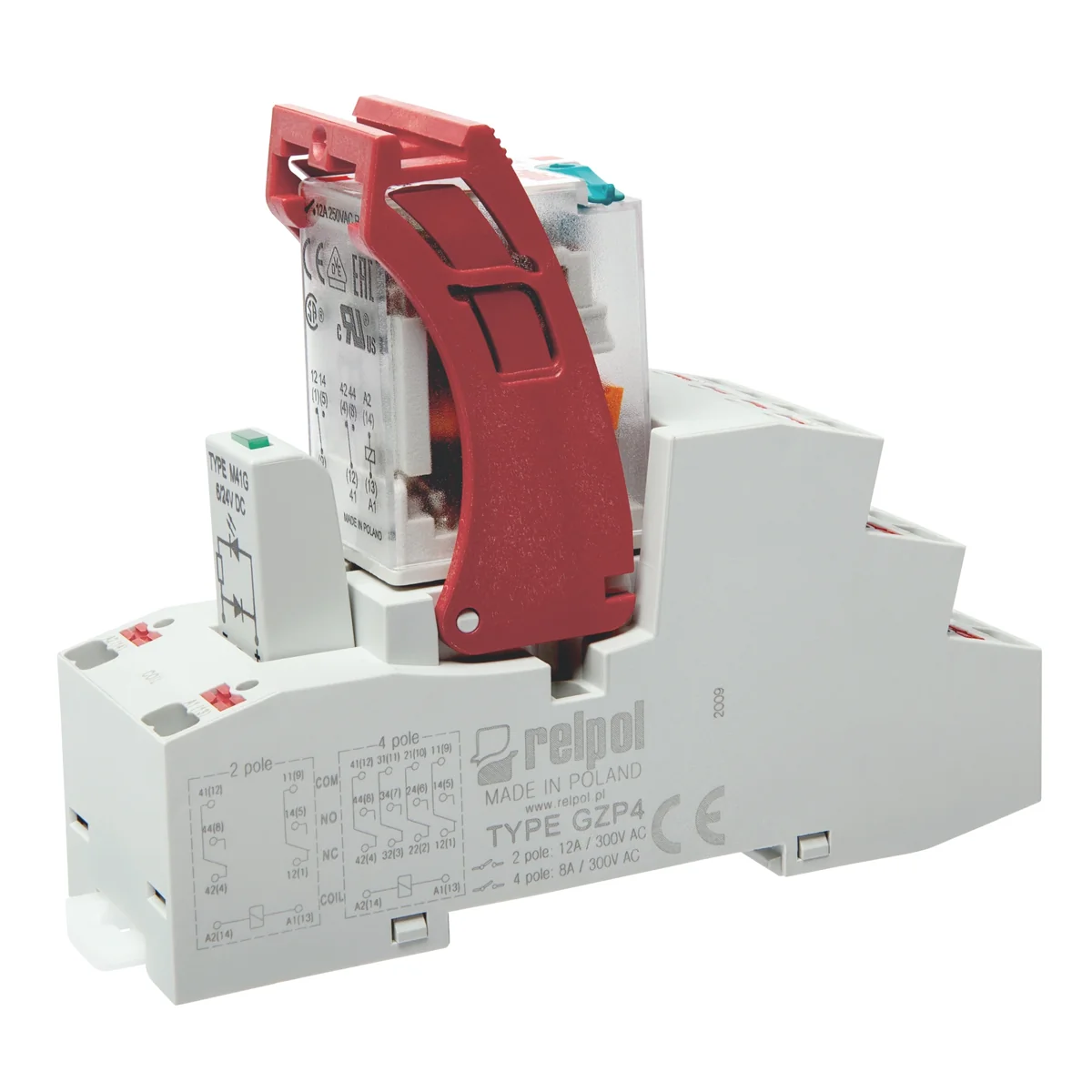

  • The set includes: GZP4 push-in socket, R4N relay, GZP4-0400 ejection clamp and M41G surge protection module (green LED + D suppression diode, N polarity: +A1/-A2)
  • < /ul>

Technical data

  • Depth [mm]
    75.8
  • Installation
    On the TH-35 rail
  • Height [mm]
    97
  • Color
    Gray
  • Width [mm]
    31
  • Terminal type
    Spring clamps
