PUSH-IN interface relay PIR4-024AC-M91G-PS-2014 24V AC 4P AgNi 7A / 250V AC 864843

local index:
APE369RELP
Catalog No:
864843
EAN code:
5900005272622
Manufacturer: RELPOL
Depth [mm]: 75.8
Color: Gray
Installation: On the TH-35 rail
Price:
23,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

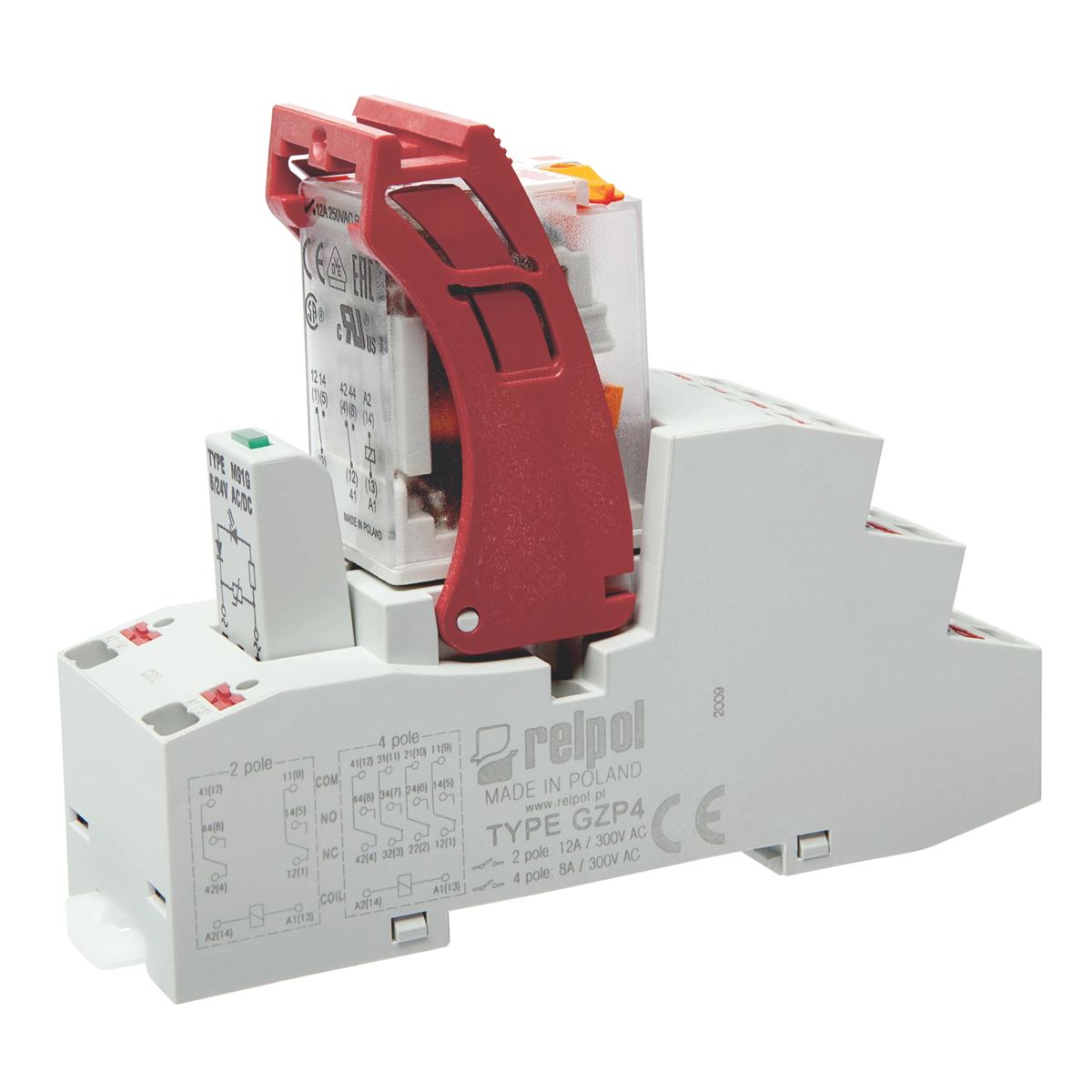

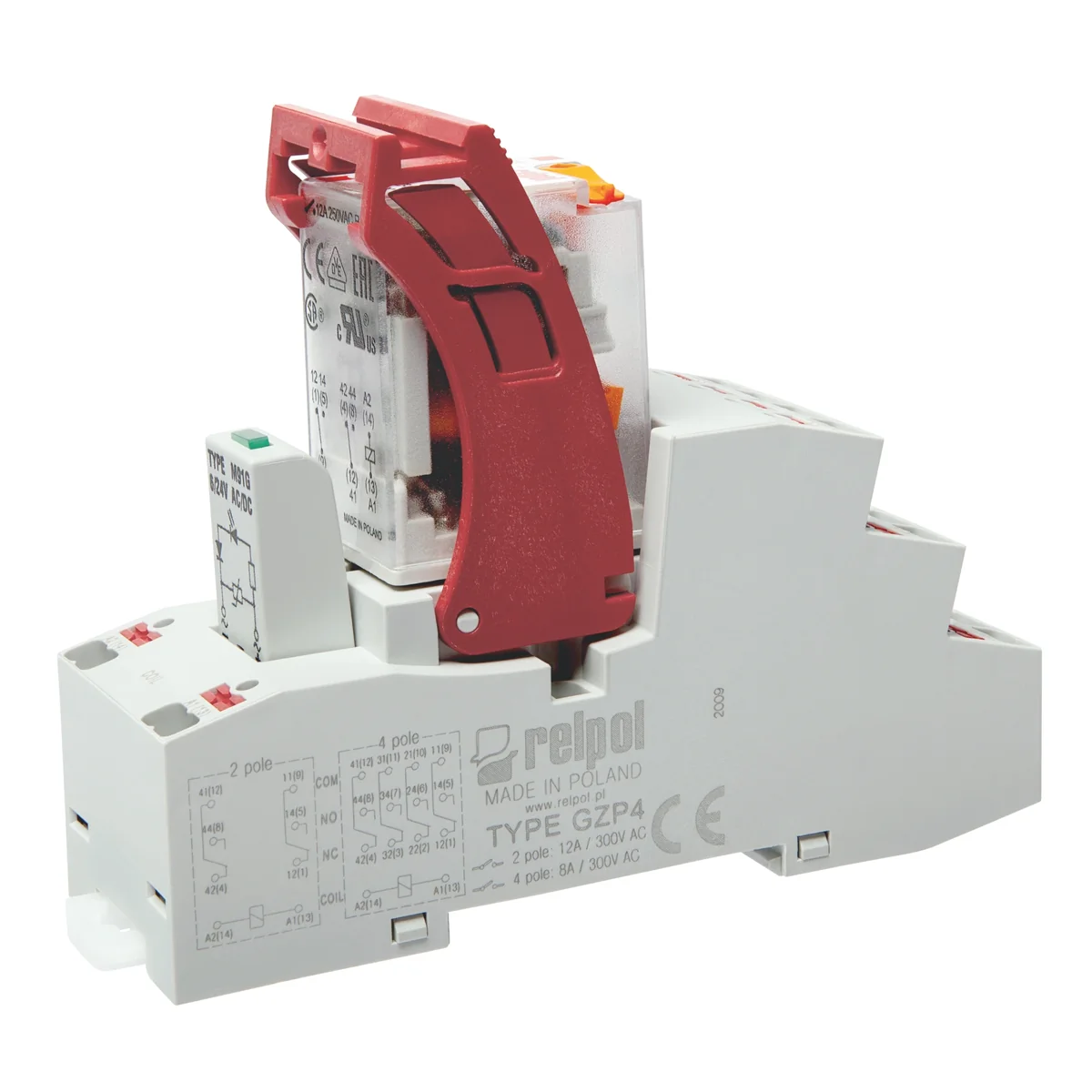

PUSH-IN interface relay: 4P - four changeover contacts, supply voltage Un - 24V AC, contact material AgNi.

  • AC1 - 6A / 250V AC; DC1 - 6A / 24V DC.
  • Dimensions: 97 x 31 x 75.8 mm.
  • Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
  • Adjusted to work with comb connectors type ZGZP.
  • The set includes: GZP4 push-in socket, R4N relay, GZP4-0400 ejection clamp and M91G surge protection module (green LED + varistor)

Technical data

  • Depth [mm]
    75.8
  • Installation
    On the TH-35 rail
  • Height [mm]
    97
  • Color
    Gray
  • Width [mm]
    31
  • Terminal type
    Spring clamps
