PUSH-IN interface relay PI85P-230AC-M93G-PS-2011230V AC 1P AgNi 16A / 250V AC 864850
local index:
APE376RELP
Catalog No:
864850
EAN code:
5900005272226
Price:
15,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

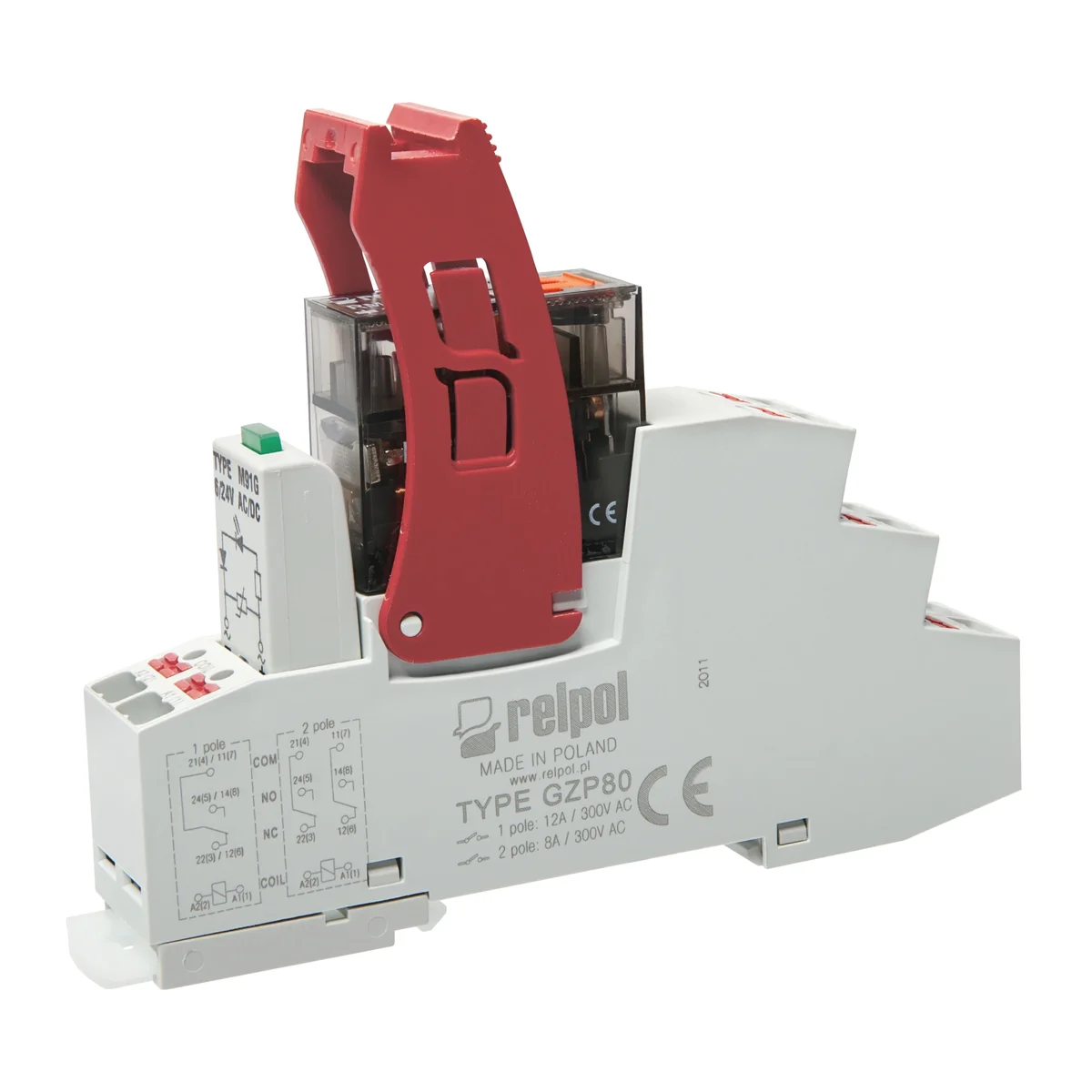

PUSH-IN interface relay: 1P - one changeover contact, supply voltage Un - 230V AC, contact material AgNi.
- AC1 - 16A / 250V AC;
- Dimensions: 97 x 15.9 x 75.8 mm.
- Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
- Adjusted to work with comb connectors type ZGZP.
- The set includes: GZP80 push-in socket, RMP85 relay, GZP80-0400 ejection clamp and M93G surge protection module (green LED + varistor)
Technical data
-
Depth [mm]75.8
-
InstallationOn the TH-35 rail
-
Height [mm]97
-
ColorGray
-
Width [mm]15.9
-
Terminal typeSpring clamps
