PUSH-IN interface relay PI85-230AC-M93G-PS-2011-01 230V AC 1P AgNi 16A / 250V AC 864995

local index:
APE382RELP
Catalog No:
864995
EAN code:
5900005274336
Manufacturer: RELPOL
Depth [mm]: 75.8
Color: Gray
Installation: On the TH-35 rail
Price:
17,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PUSH-IN interface relay: 1P - one changeover contact, supply voltage Un - 230V AC, contact material AgNi.

  • AC1 - 16A / 250V AC; DC1 - 16A / 24VDC.
  • Dimensions: 97 x 15.9 x 75.8mm.
  • Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
  • Adjusted to work with ZGZP comb connectors.

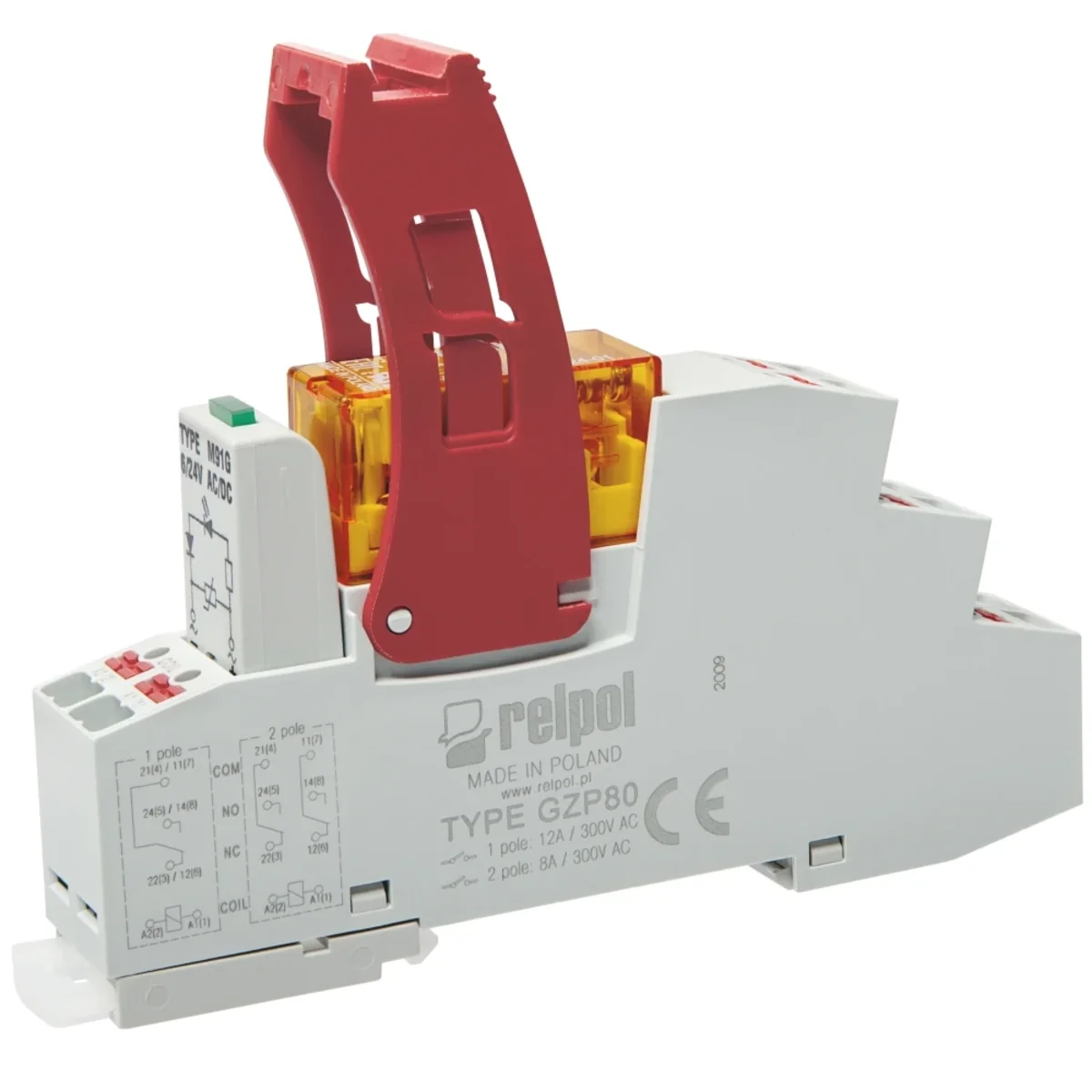

  • The set includes: GZP80 push-in socket, RM85 relay in a transparent orange housing, GZP80-0400 discharge clamp and M93G surge protection module (LED green + varistor)

Technical data

  • Depth [mm]
    75.8
  • Installation
    On the TH-35 rail
  • Height [mm]
    97
  • Color
    Gray
  • Width [mm]
    15.9
  • Terminal type
    Spring clamps
