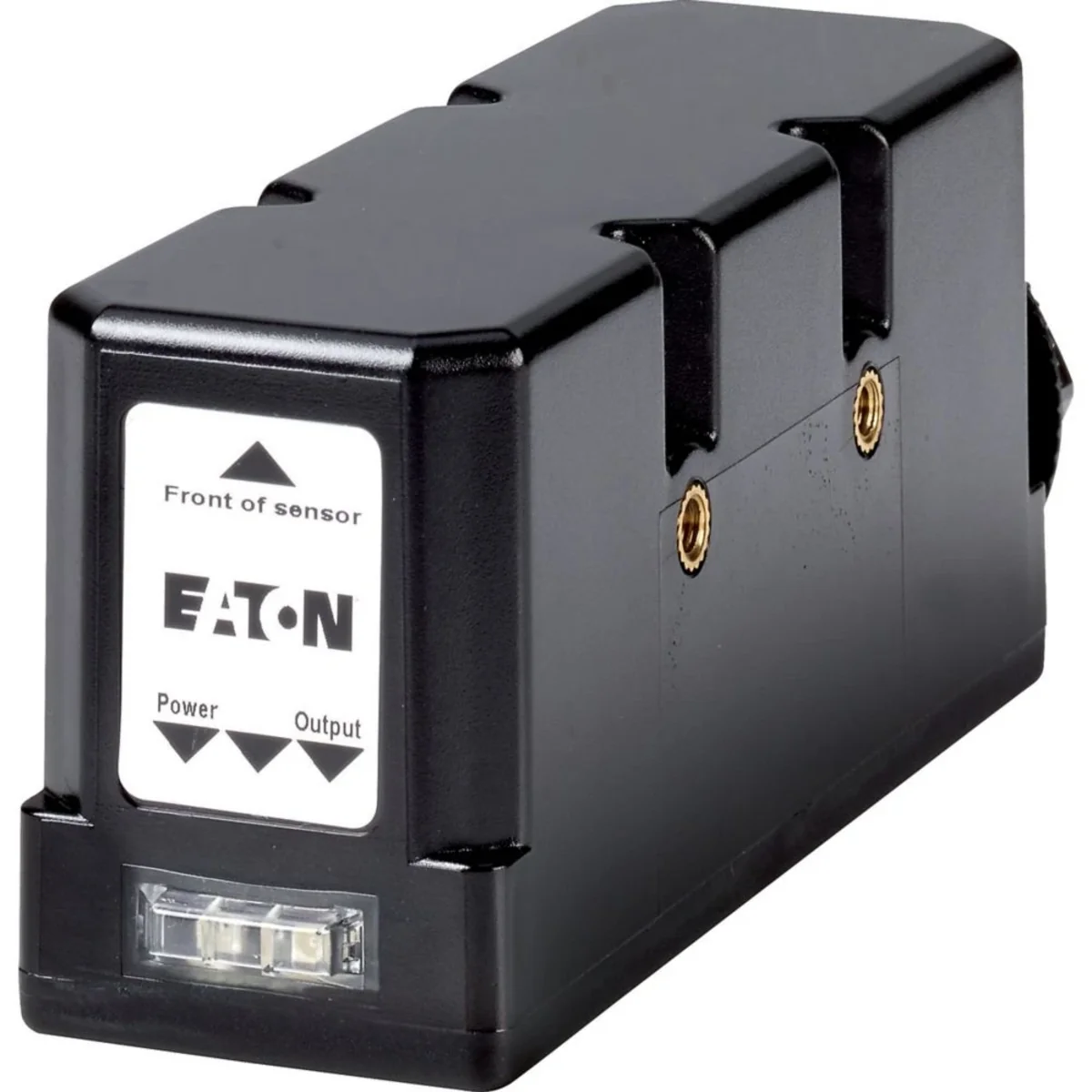

Proximity Sensor, Optical, Range 60cm, 18-30VDC, NPN, PNP, Bright, Micro 100540
Lokaler Index:
API166MOEL
Katalognummer:
100540
EAN-Code:
4015081900138
Preis:
1 453,52 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
E67 Perfect Prox long-range sensor series, product features: Background concealment, extended sensing range up to 240 cm, power and output status indication, horizontal and vertical mounting, easy setup, detecting objects of different colors glare and contrast.
Technische Daten
-
Operating voltage [V]18 - 30
-
Range60
-
Connectionswitching on brightly
-
PKWIU25.11.23.0
Weitere technische Daten
-
Adjustment range0 ... 600 mm
-
TriangulationBackground fade-out
-
With time functionNo
-
Max. switching distance900 mm
-
With reflectorNo
-
Analogue output 0 mA ... 20 mANo
-
Analogue output -10 V ... +10 VNo
-
Setting procedureOther
-
With communication interface AS-InterfaceNo
-
With communication interface DeviceNetNo
-
With communication interface INTERBUSNo
-
With communication interface RS-232No
-
With communication interface RS-485No
-
With communication interface SSINo
-
Number of contact energized outputs with signalling function0
-
Number of protected contact energized outputs0
-
Type of electric connectionOther
-
Type of switch functionOther
-
Explosion safety category for gasNone
-
Construction type housingCuboid
-
Diameter sensor0 mm
-
Length of sensor166 mm
-
Material of optical surfacePlastic
-
Max. output current at protected output0 mA
-
Ambient temperature-35 ... 55 °C
-
Transmission range of the safety field0 m
-
Type of safety according to IEC 61496-11
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC18 ... 30 V
-
With monitoring function downstream switching devicesNo
-
Wavelength of the sensor0 nm
-
Light dot0 mm²
-
Material of cable sheathOther
-
Suitable for safety functionsNo
-
Degree of protection (NEMA)Other
-
Operating distance0 ... 0 mm
-
Pre failure noticeNo
-
Rated switching distance600 mm
-
Max. output current100 mA
-
Analogue output 0 V ... 10 VNo
-
Analogue output 4 mA ... 20 mANo
-
With other analogue outputNo
-
With communication interface analogueNo
-
With communication interface CANOpenNo
-
With communication interface EthernetNo
-
With communication interface PROFIBUSNo
-
With communication interface RS-422No
-
With communication interface SSDNo
-
Number of semiconductor outputs with signalling function2
-
Number of protected semiconductor outputs0
-
Type of interface for safety communicationOther
-
Type of switching outputNPN
-
Operation agent-safety classSafety class 2
-
Explosion safety category for dustNone
-
Width sensor43 mm
-
Height of sensor59 mm
-
Sensing modeLight switching
-
Housing materialPlastic
-
Min. reflector distance0 mm
-
Response time15 ms
-
Switching frequency0 Hz
-
Switching voltage of OSSD at state "high"30 V
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage typeDC
-
Laser protection classNone
-
Type of lightInfrared light
-
AWG-number0
-
With restart blockageNo
-
Degree of protection (IP)IP67
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Karton |
| Menge | 1 stk. | 1 stk. |
| Gewicht (kg) | 0,210 | 0,290 |
| Volumen (m3) | 0,000 | 0,000 |
| Breite (m) | 0,044 | 0,042 |
| Länge (m) | 0,162 | 0,160 |
| Tiefe (m) | 0,059 | 0,057 |
