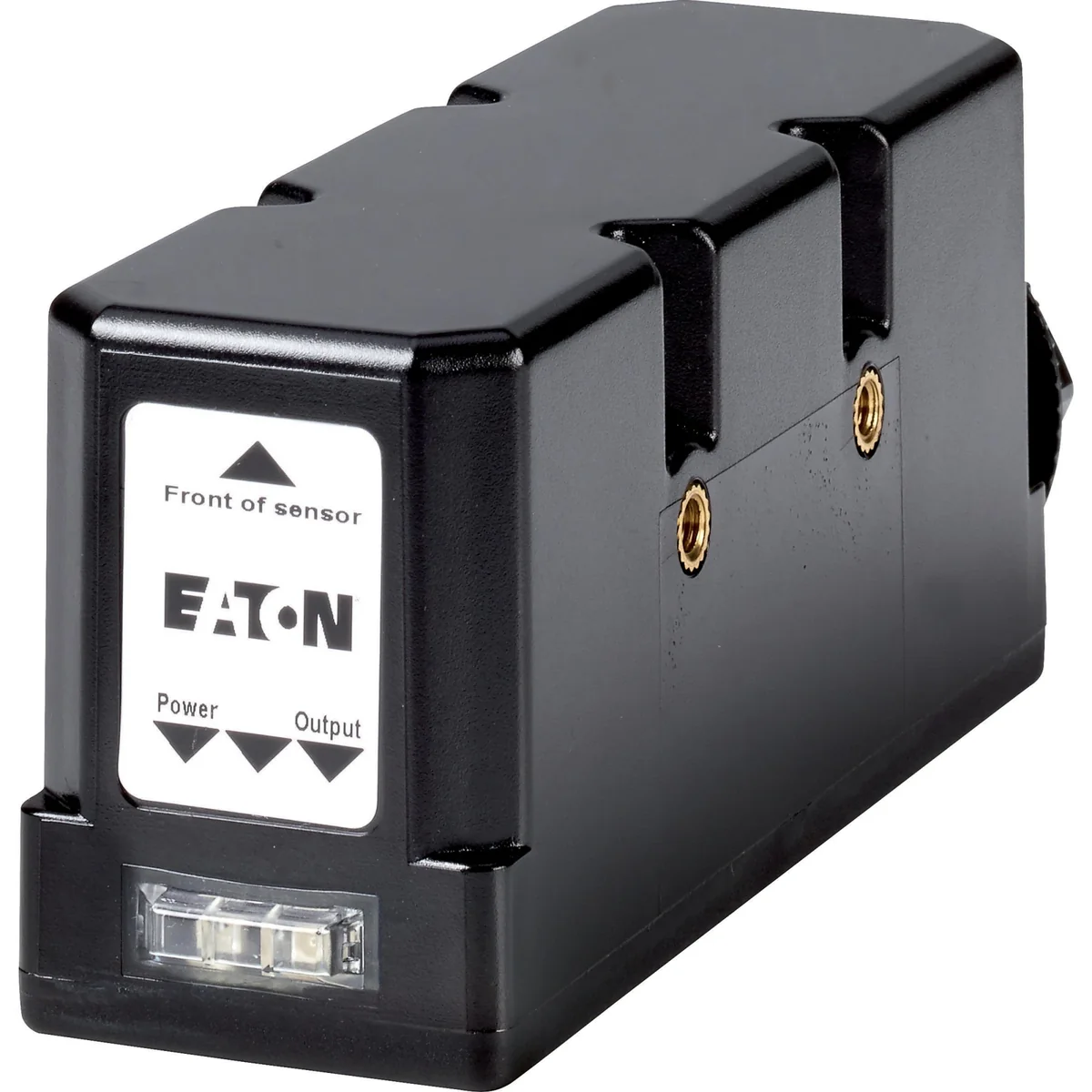

Proximity Sensor, Optical, Range 230cm, 18-30VDC, NPN, PNP, Bright, Micro 100574
local index:
API200MOEL
Catalog No:
100574
EAN code:
4015081900473
Price:
305,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
E67 Perfect Prox long-range sensor series, product features: Background concealment, extended sensing range up to 240 cm, power and output status indication, horizontal and vertical mounting, easy setup, detecting objects of different colors glare and contrast.
Technical data
-
Operating voltage [V]18 - 30
-
Range230
-
Connectionswitching on brightly
Other technical data
-
Adjustment range0 ... 2300 mm
-
TriangulationBackground fade-out
-
With time functionNo
-
Max. switching distance2600 mm
-
With reflectorNo
-
Analogue output 0 mA ... 20 mANo
-
Analogue output -10 V ... +10 VNo
-
Setting procedureOther
-
With communication interface AS-InterfaceNo
-
With communication interface DeviceNetNo
-
With communication interface INTERBUSNo
-
With communication interface RS-232No
-
With communication interface RS-485No
-
With communication interface SSINo
-
Number of contact energized outputs with signalling function0
-
Number of protected contact energized outputs0
-
Type of electric connectionOther
-
Type of switch functionOther
-
Explosion safety category for gasNone
-
Construction type housingCuboid
-
Diameter sensor0 mm
-
Length of sensor166 mm
-
Material of optical surfacePlastic
-
Max. output current at protected output0 mA
-
Ambient temperature-35 ... 55 °C
-
Transmission range of the safety field0 m
-
Type of safety according to IEC 61496-11
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC18 ... 30 V
-
With monitoring function downstream switching devicesNo
-
Wavelength of the sensor0 nm
-
Light dot0 mm²
-
Material of cable sheathOther
-
Suitable for safety functionsNo
-
Degree of protection (NEMA)Other
-
Operating distance0 ... 0 mm
-
Pre failure noticeNo
-
Rated switching distance2300 mm
-
Max. output current100 mA
-
Analogue output 0 V ... 10 VNo
-
Analogue output 4 mA ... 20 mANo
-
With other analogue outputNo
-
With communication interface analogueNo
-
With communication interface CANOpenNo
-
With communication interface EthernetNo
-
With communication interface PROFIBUSNo
-
With communication interface RS-422No
-
With communication interface SSDNo
-
Number of semiconductor outputs with signalling function2
-
Number of protected semiconductor outputs0
-
Type of interface for safety communicationOther
-
Type of switching outputNPN
-
Operation agent-safety classSafety class 2
-
Explosion safety category for dustNone
-
Width sensor43 mm
-
Height of sensor59 mm
-
Sensing modeLight switching
-
Housing materialPlastic
-
Min. reflector distance0 mm
-
Response time15 ms
-
Switching frequency0 Hz
-
Switching voltage of OSSD at state "high"30 V
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage typeDC
-
Laser protection classNone
-
Type of lightInfrared light
-
AWG-number0
-
With restart blockageNo
-
Degree of protection (IP)IP67
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,290 |
| Volume (m3) | 0,000 |
| Width (m) | 0,042 |
| Length (m) | 0,160 |
| Depth (m) | 0,057 |
