Programmable weekly 2-channel timer - programmable via NFC ANDROID and iOS PCZ-522.4

Name: Programmable weekly 2-channel timer - programmable via NFC ANDROID and iOS
Brand: F&F
SKU: APC050FIFQ
Price: 246.57 PLN
Availability: InStock

Índice local:

APC050FIFQ

Número de catálogo:

PCZ-522.4

Código EAN:

5902431677453

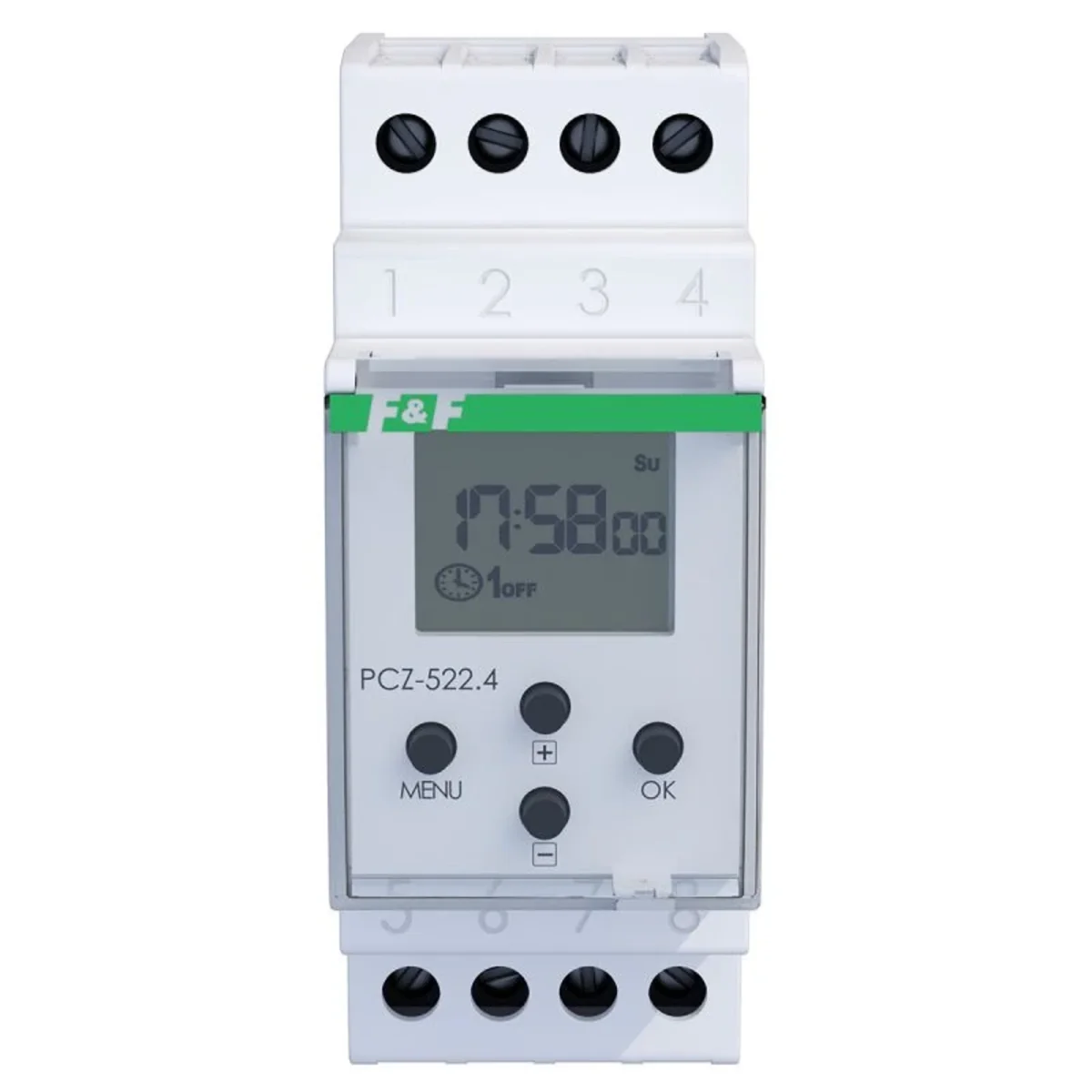

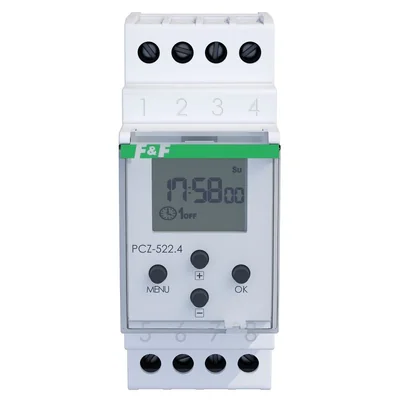

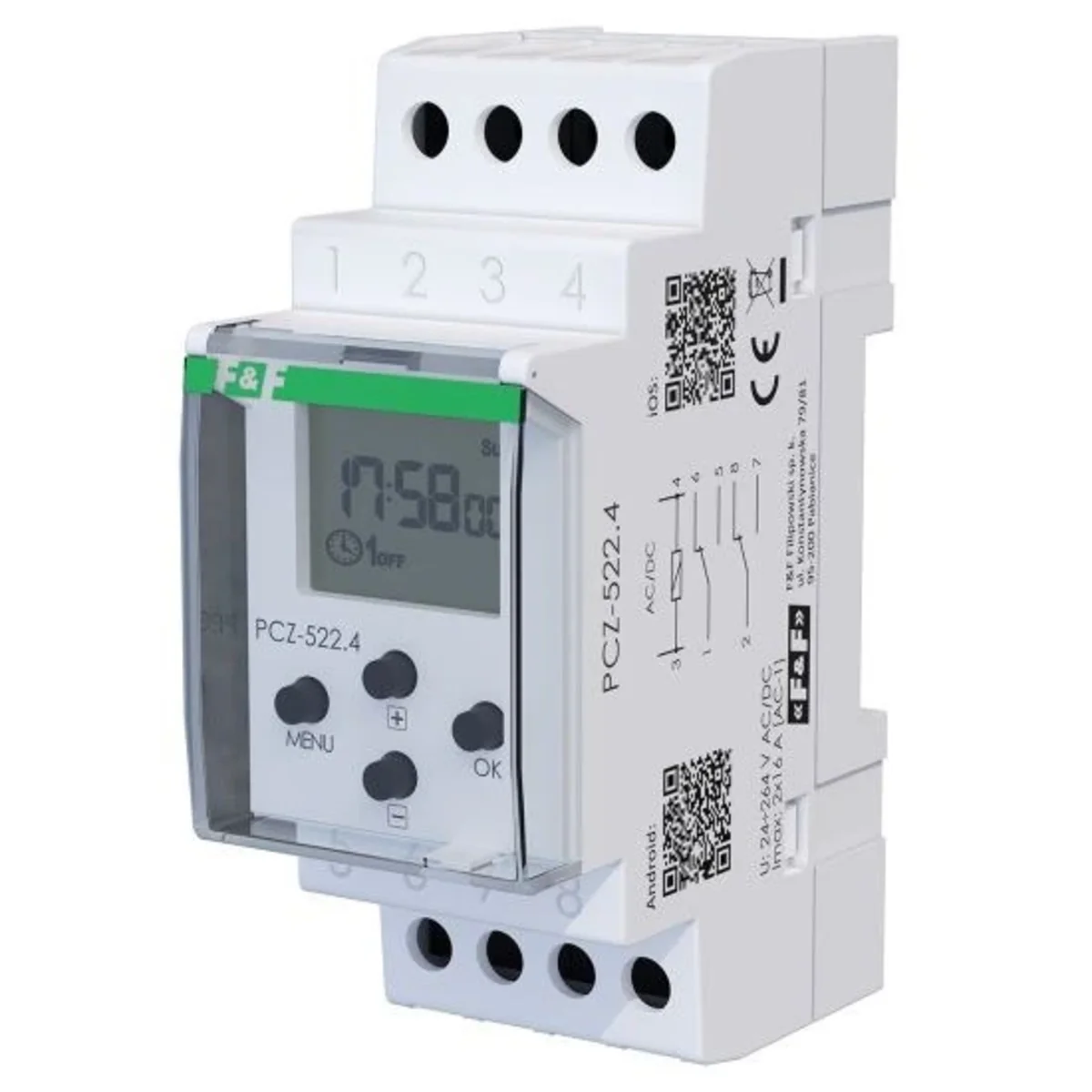

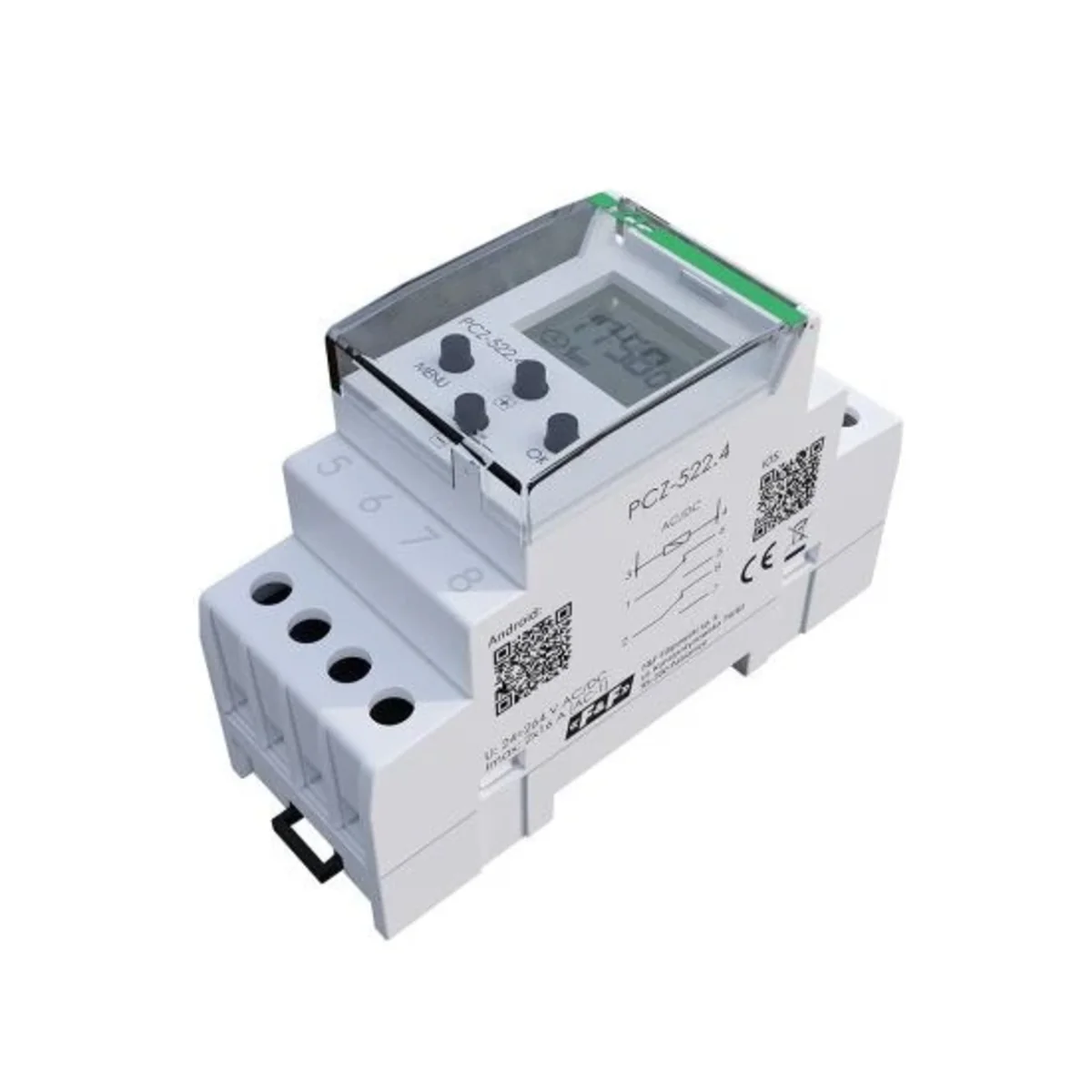

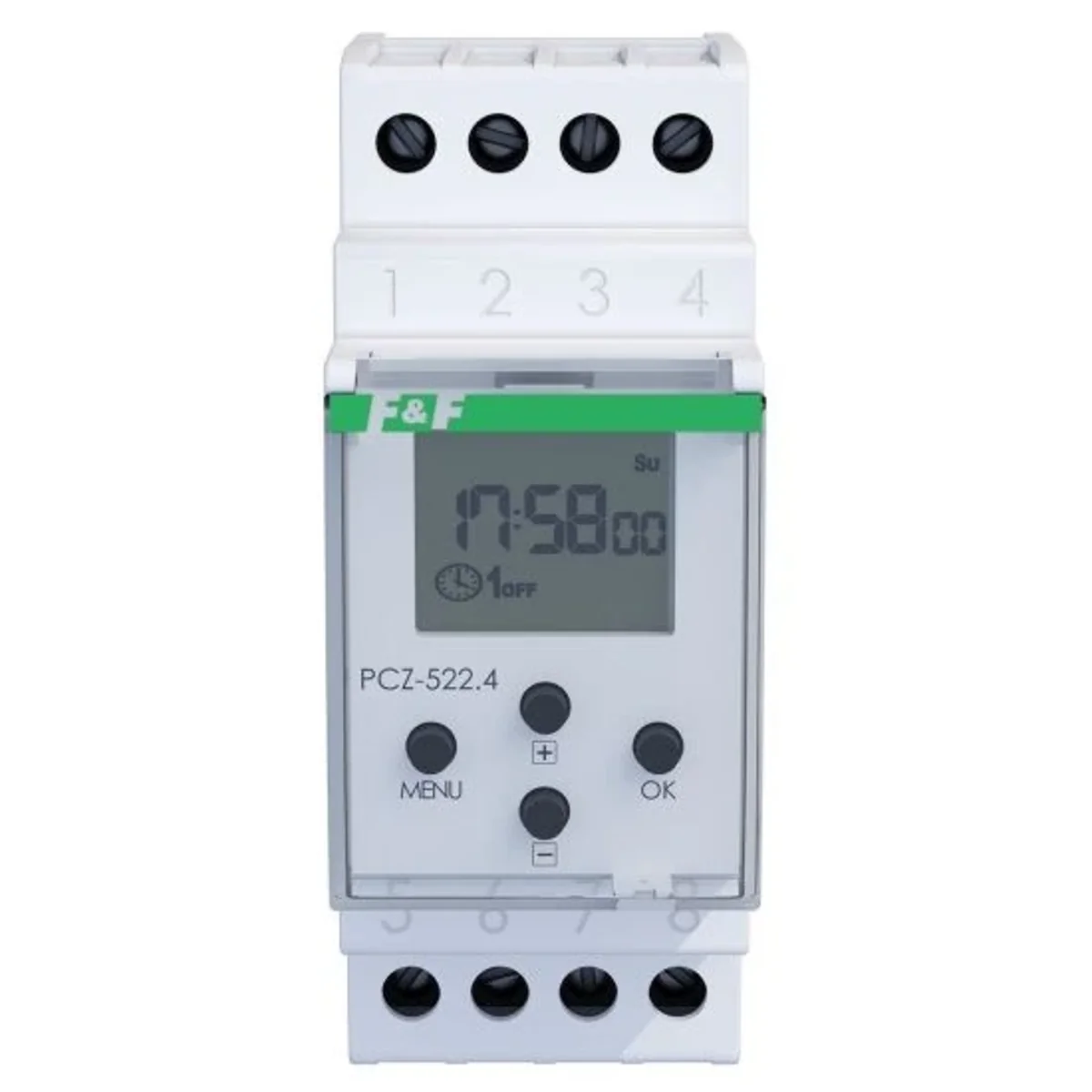

Programmable weekly 2-channel timer - programmable via NFC ANDROID and iOS

Haga clic en la foto para ampliar

Fabricante: F&F

Time error: ±1s/24h

Display backup time: Lack

Clock back-up time: 6 years

Ver descripción completa

Precio:

246,57 zł

gross / uds.

(IVA incluido 23%)

Accesible 7 uds.

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

The programmable timer is used to time-control devices in home or industrial automation systems according to an individual time program set by the user. The PCZ-522.4 timer is designed for DIN rail mounting. Configuration from an iOS or Android phone.

Datos técnicos

Time error

±1s/24h
Clock back-up time

6 years
Indication accuracy

1 sec
Maximum load current [A]

2 × 16 A
Tightening torque [Nm]

0.5
Supply voltage [V]

24-264
connection

screw terminals 4.0 mm²
Level of security

IP20
Minimum operating temperature [°C]

-20

Display backup time

Lack
Setting accuracy

1 min
The number of program memory cells

500 (2× 125 pairs of ON-OFF COMMANDS/CHANNEL)
Maximum operating temperature [°C]

50
Installation

On the TH-35 rail
Power consumption [W]

1.5
Family

PCZ
Dimensions

2 modules (35mm)
Battery type

2032 (lithium)

Otros datos técnicos

Mounting method

DIN rail
Supply voltage

24 ... 265 V
Autonomy in hours

0
Accuracy per day

1 s
External programming

Yes
60 min program

Yes
Weekly program

Yes
Holiday program

No
Cycle program

Yes
Random program

No
Mains synchronous

No
Radio-controlled

No
GPS (global positioning system)

No
Number of contacts

2
Shortest switching time channel 2

1 min
Automatic switching summer-/winter time

Yes
External pushbutton input

No
Nominal switching current at 250 V AC

16 A
Potential free switch contact

Yes
Width in number of modular spacings

2
Height

90 mm

Number of channels

2
Voltage type (supply voltage)

AC/DC
Autonomy in years

6
Text guidance in display

No
With memory card

No
24 h program

Yes
Annual program

No
Impulse program

No
Astro program

No
Hour meter

No
Quartz controlled

Yes
Radio-controlled (DCF77)

No
Contact type

Change-over contact (NO/NC)
Shortest switching time channel 1

1.00000001 min
Number of memory locations

500
Suitable for manual operation

Yes
Switching preselection

No
Max. switching power LED

250 W
Degree of protection (IP)

IP20
Width

35 mm
Depth

65 mm

Detalles del fabricante

Fabricante

F&F Filipowski S.K.
Dirección

95-200 Pabianice Konstantynowska 79/81 Polska
Email

biuro@fif.com.pl

Empaquetado a granel

una especie de paquete	Sztuka
Cantidad	1 uds.
Peso (kg)	0,110
Ancho (m)	43,000
Longitud (m)	70,000
Profundidad (m)	103,000
