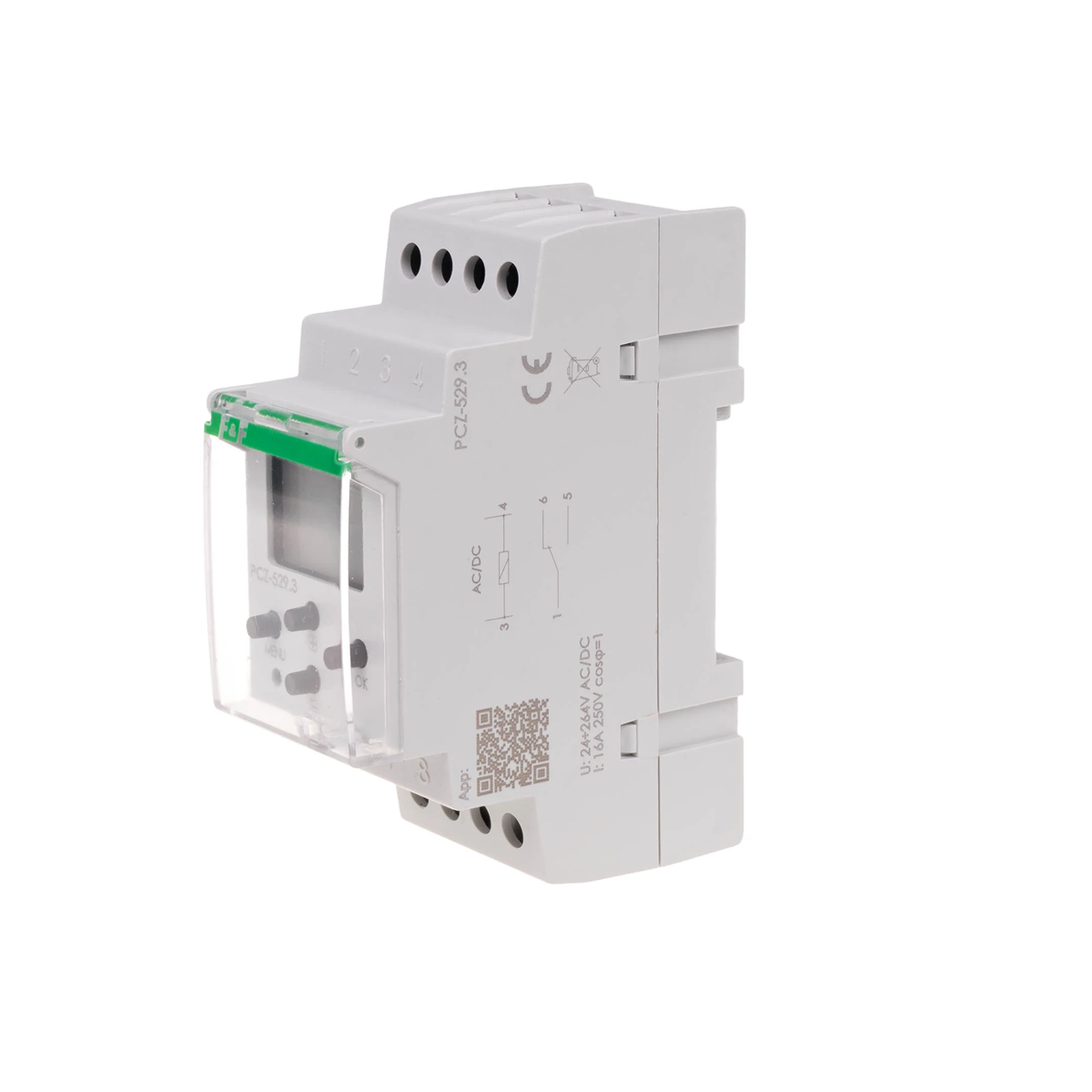

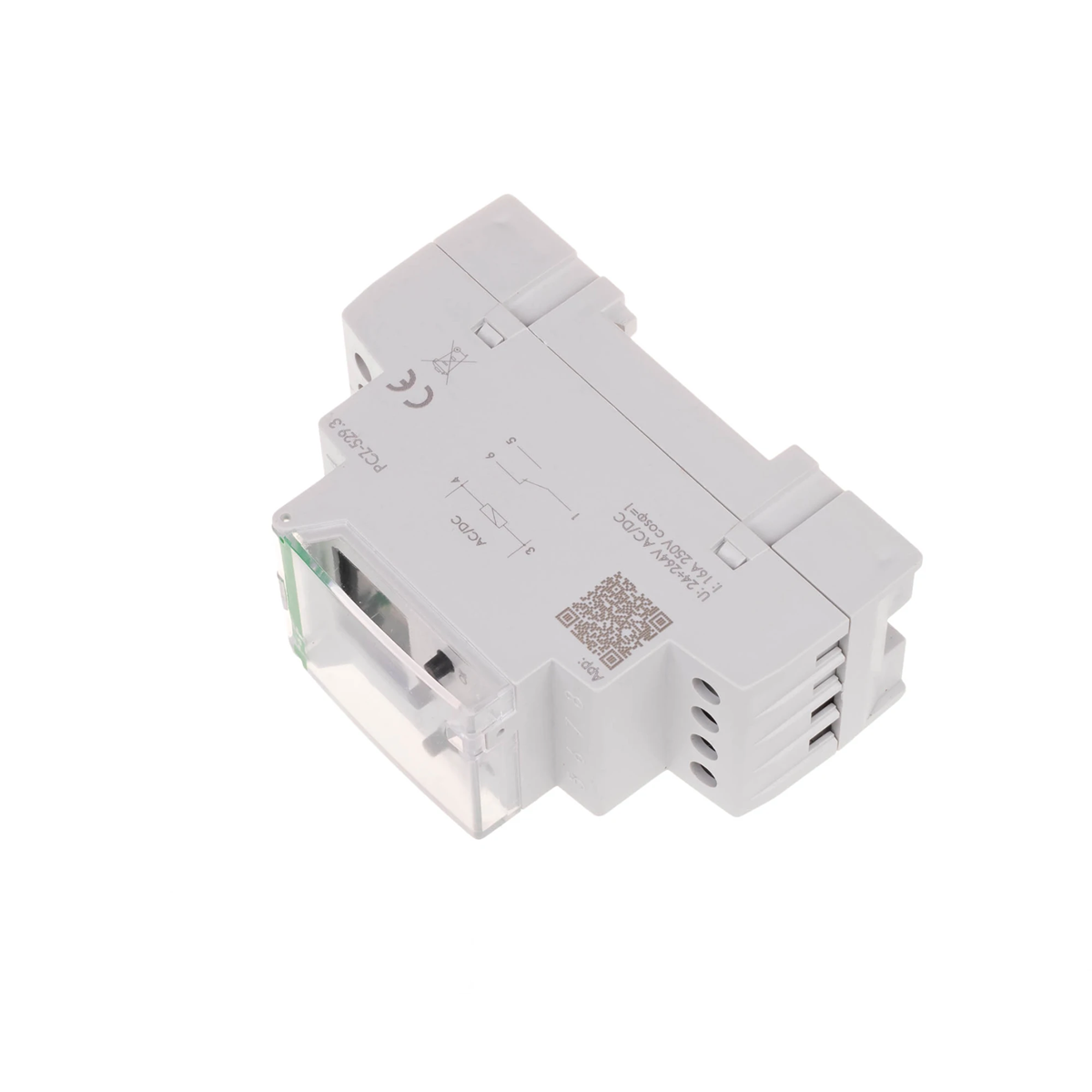

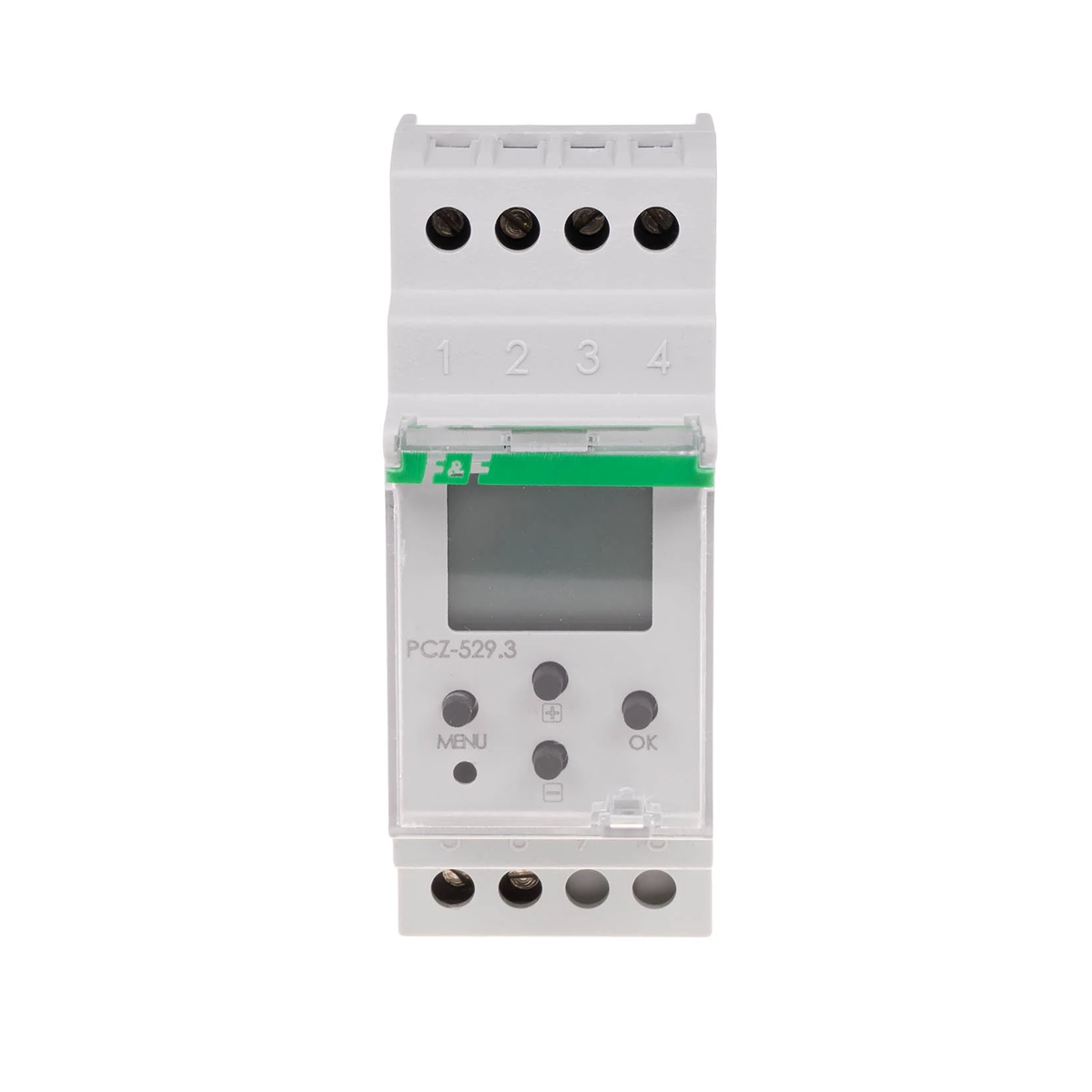

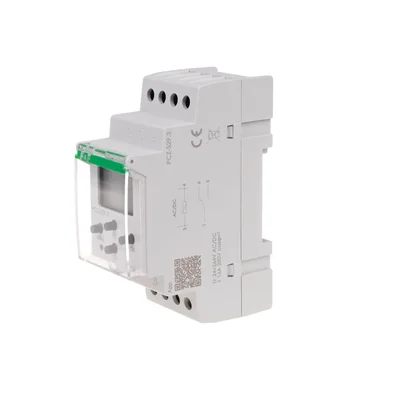

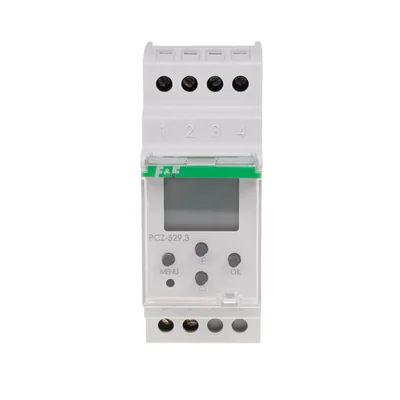

Programmable control timer - annual PCZ-529 PCZ-529

local index:
APC175FIFQ
Catalog No:
PCZ-529
EAN code:
5908312596134
Manufacturer: F&F
Time error: 1s/24h
Display backup time: Lack
Clock back-up time: 6 years (lithium battery)
Price:
72,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Action
The timer turns devices on and off according to the programmed dates on a yearly basis. It is possible to set the activation only for one selected day of the year. Clock functions
AUTOMATIC OPERATION - operation according to the ON-OFF COMMAND programmed by the user of the clock memory.
MANUAL OPERATION - [ON] permanent switching on of the contact (pos. 1-5) or [OFF] permanently disconnecting the contact (pos.1-6)
COMMAND ON-OFF - program entry, according to which the receiver will be switched on or off.
WORKING CYCLE - adjustable, annual a cycle in which the receiver is switched on in accordance with the programmed ON-OFF COMMANDS.
AUTOMATIC TIME CHANGE - The change of time from winter to summer is made automatically at night, on the last Sunday of March at 2.00 (by adding 1 hour to the current time). The change from summer to winter time is made automatically at night, on the last Sunday in October at 3.00 am (by subtracting 1 hour from the current time).
RESTART - Restarting the processor with a special button - necessary when the clock function is suspended. Does not erase DATE and TIME settings and entries in CONFIGURATION in memory.

Technical data

  • Time error
    1s/24h
  • Clock back-up time
    6 years (lithium battery)
  • Setting accuracy
    1 day
  • The number of program memory cells
    198 (99 pairs of ON/OFF COMMANDS)
  • Installation
    On the TH-35 rail
  • screw connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • PKWIU
    26.52.24.0
  • Display backup time
    Lack
  • Accuracy [min]
    1 day
  • Number of contacts
    0NO 0NC
  • Power [W]
    1.5
  • load current [A]
    <16
  • Working temperature [°C]
    -20-50
  • Power
    24-264V AC/DC
  • Package width [mm]
    40
  • Accuracy [s]
    1

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    24 ... 264 V
  • Accuracy per day
    1 s
  • With memory card
    No
  • 24 h program
    No
  • Annual program
    Yes
  • Cycle program
    Yes
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Contact type
    Change-over contact (NO/NC)
  • Shortest switching time channel 2
    1 min
  • Automatic switching summer-/winter time
    Yes
  • External pushbutton input
    Yes
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    2
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC/DC
  • External programming
    No
  • 60 min program
    No
  • Weekly program
    No
  • Impulse program
    Yes
  • Astro program
    Yes
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 1
    1 min
  • Number of memory locations
    500
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,112
Width (m) 43,000
Length (m) 70,000
Depth (m) 103,000
