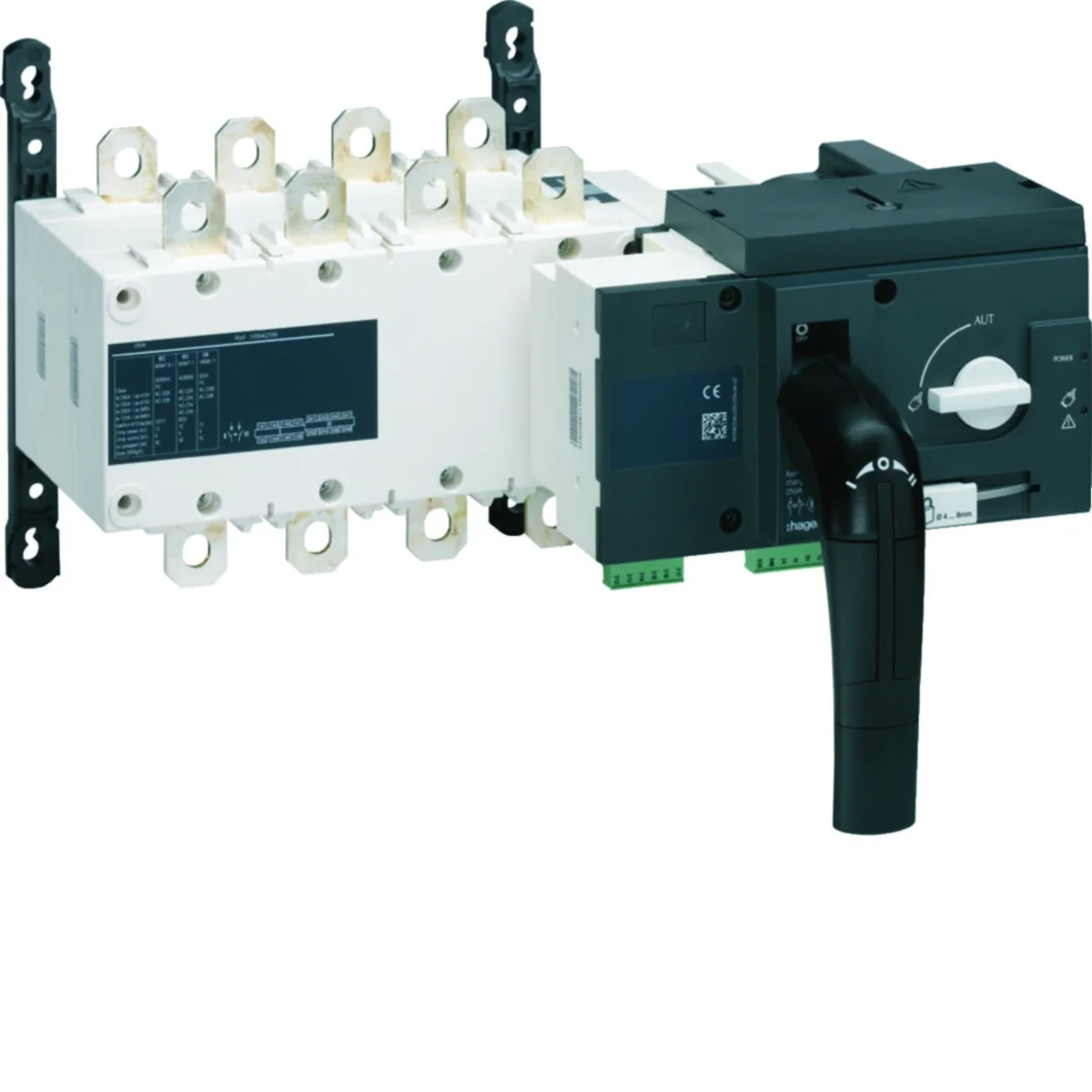

Name: Power switch with 250A motor drive
Brand: HAGER
SKU: ALM089HAGE
Price: 2042.86 PLN

The power supply isolation switch with 250A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

Function:

Remote switching of circuit power supply under load while maintaining the separation of supply lines.

Product features:

The use of remote switching of two interlocked switch disconnectors offers a number of possibilities:
- 3 stable working positions switched under load (cat. AC 22 and AC 23),
- safe separation of power supply networks with indication of the working position,
- possibility of locking in position 0,
- compact design,
- design and spacing of poles allows the use of coupling bridges,
- cooperation with universal HZI811 controller.

Rated frequency [Hz]

60
Rated current [A]

250
power loss [W]

17.7
Connection type

Vice
PKWIU

27.33.11.0

Number of poles

4
Level of security

IP00
Power loss per pole [W]

5.9
Rated switching voltage [V]

380/415

Other technical data

Version as main switch

Yes
Version as safety switch

Yes
Version as reversing switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated permanent current Iu

250 A
Rated permanent current at AC-21, 400 V

250 A
Rated operation power at AC-23, 400 V

90 kW
Conditioned rated short-circuit current Iq

50 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

Yes
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Other
Interlockable

Yes
Degree of protection (IP), front side

IP00

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

380 ... 415 V
Rated permanent current at AC-23, 400 V

200 A
Rated short-time withstand current lcw

15 kA
Switching power at 400 V

164 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

1
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Other
Type of electrical connection of main circuit

Cable clamp
Degree of protection (NEMA)

Other

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	18 pcs.
Weight (kg)	8,000	9,820	199,760
Width (m)	0,239	0,365	0,800
Length (m)	0,244	0,355	1,280
Depth (m)	0,378	0,475	1,200
